PS 80533 - PowerStroke Pressure Washer General Assembly (Part 2) Parts Diagram

Pressure Washer

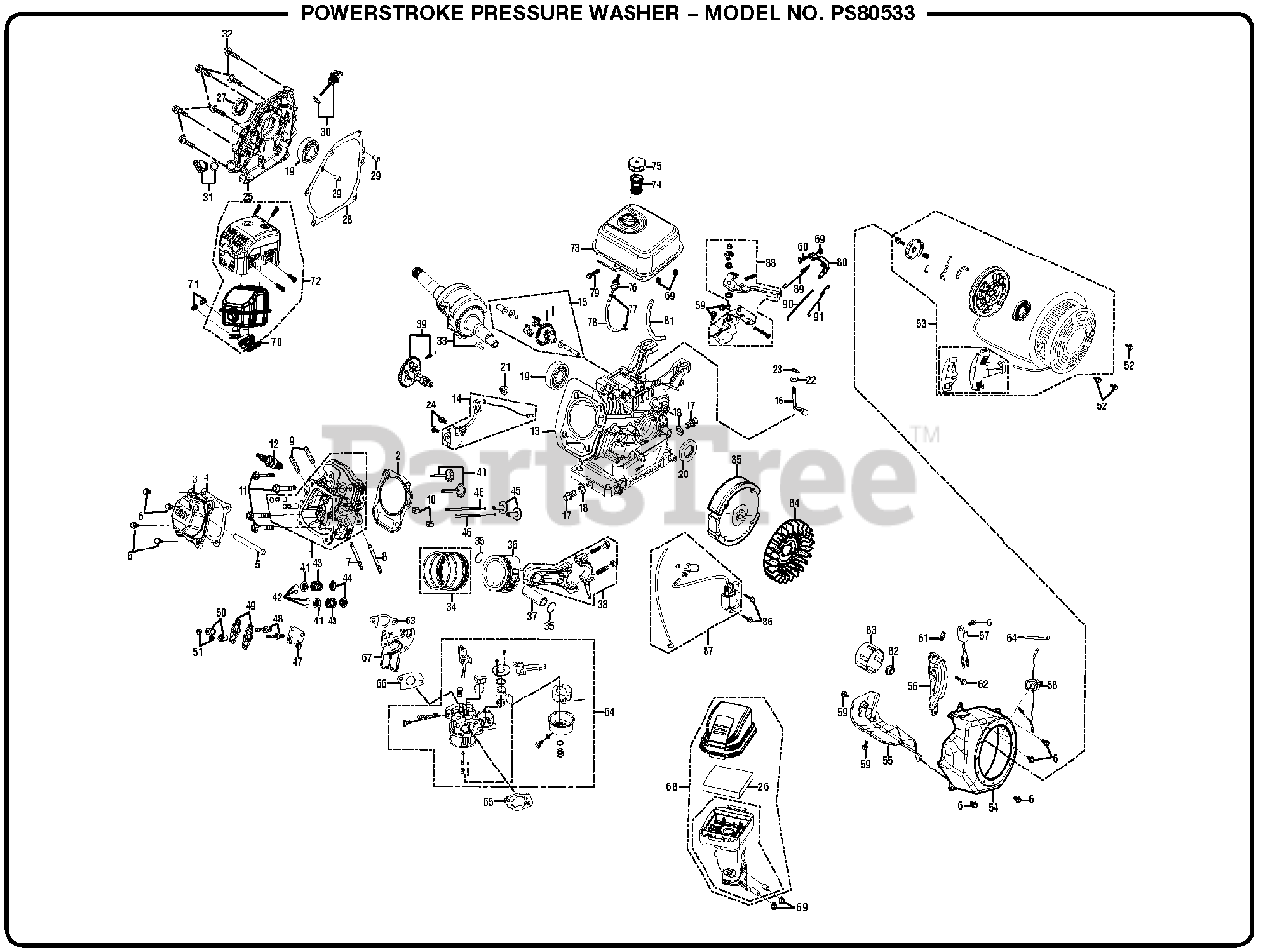

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 12140-Z440610-0099

Cylinder Head Assembly

$

$

Not available

2

Homelite 12131-Z440320-0000

Cylinder Head Gasket

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 12410-Z440110-0099

Cylinder Head Cover Assembly

$12.99

$

In Stock, only 2 left!

0

4

Homelite 12004-Z440110-0000

Cylinder Head Cover Gasket

$2.49

$

In Stock, only 1 left!

0

5

Homelite 17004-Z440110-0000

Breather Tube

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 90001-0612-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 90204-Z010310-0000

Stud

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 90207-Z330210-0000

Stud

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 90203-Z010110-0000

Stud

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 90502-1114-00

Pin

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 12003-Z010110-0000

Cylinder Head Bolt

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 30010-Z010210-0000

Spark Plug

$6.99

$

Usually ships in 3-7 days

0

13

Homelite 11310-Z440520-0000

Crankcase Assembly

$

$

Not available

14

Homelite 37060-Z010120-0000

Engine Oil Sensor

$12.99

$

Usually ships in 3-7 days

0

15

Homelite 16400-Z010110-0000

Governor Gear Assembly

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 16061-Z010110-0000

Governor Arm

$3.99

$

In Stock, only 2 left!

0

17

Homelite 11007-Z010110-0000

Drain Plug

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 90408-Z010110-0000

Washer

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 90547-0205-CL

Bearing

$

$

Not available

20

Homelite 90682-Z300110-0000

Oil Seal

$3.99

$

In Stock, only 1 left!

0

21

Homelite 90305-Z010210-01

Nut

$

$

Not available

22

Homelite 90408-Z010210-0000

Washer

$2.49

$

In Stock, only 2 left!

0

23

Homelite 90501-Z010110-0000

Pin

$2.49

$

In Stock, only 2 left!

0

24

Homelite 90001-0614-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 11411-Z440210-0000

Crankcase Cover

$69.99

$

Usually ships in 3-7 days

0

26

Homelite 17151-Z440110-0000

Air Filter

$6.49

$

In Stock, only 1 left!

0

27

Homelite 90682-Z300110-0000

Oil Seal

$3.99

$

In Stock, only 1 left!

0

28

Homelite 11001-Z440110-0000

Crankcase Gasket

$6.99

$

In Stock, only 1 left!

0

29

Homelite 90502-0912-00

Pin

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 15010-Z010120-QG00

Oil Dipstick Assembly

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 15030-Z010120-QG00

Engine Oil Plug Assembly

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 90001-0832-01

Bolt

$1.99

$

In Stock, only 1 left!

0

33

Homelite 13300-Z442010-0000

Crankshaft Assembly

$

$

Not available

34

Homelite 13200-Z440110-0099

Piston Ring Assembly

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 13122-Z350110-0000

Piston Pin Clip

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 13111-Z440210-0099

Piston Assembly

$17.99

$

Usually ships in 3-7 days

0

37

Homelite 13121-Z810110-0000

Piston Pin

$

$

Not available

38

Homelite 13010-Z810210-0000

Connecting Rod

$20.99

$

Usually ships in 3-7 days

0

39

Homelite 14200-Z440210-0099

Camshaft Assembly

$39.99

$

Usually ships in 3-7 days

0

40

Homelite 12110-Z810110-0099

Valve

$19.99

$

Usually ships in 3-7 days

0

41

Homelite 12112-Z810110-0000

Valve Spring Seat

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 12109-Z810110-0000

Valve Lock Clip

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 12103-Z010110-0000

Valve Spring

$1.99

$

In Stock, only 4 left!

0

44

Homelite 12101-Z810110-0000

Seal Guide

$5.49

$

Usually ships in 3-7 days

0

45

Homelite 14081-Z040110-0000

Valve Tappet

$3.99

$

Usually ships in 3-7 days

0

46

Homelite 14071-Z440110-0000

Valve Lifter

$3.49

$

In Stock, only 1 left!

0

47

Homelite 14090-Z010110-0000

Lifter Stopper Plate Assembly

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 14313-Z010110-0000

Valve Adjusting Bolt

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 14311-Z010110-0000

Valve Rocker

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 14314-Z010110-0000

Valve Adjusting Nut

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 14312-Z010110-0000

Valve Lock Nut

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 90001-0608-01

Bolt

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 28200-Z301410-H600

Recoil Starter Assembly

$39.99

$

Usually ships in 3-7 days

0

54

Homelite 28110-Z010410-RD00

Shroud

$

$

Not available

55

Homelite 19304-Z010110-0000

Cylinder Body Shroud

$

$

Not available

56

Homelite 19340-Z010120-0000

Lower Shield

$

$

Not available

57

Homelite 37050-Z010210-0000

Oil Protector

$7.49

$

Usually ships in 3-7 days

0

58

Homelite 35540-Z060130-QG00

Stop Engine Switch Assembly

$6.49

$

In Stock, only 1 left!

0

59

Homelite 90001-0610-01

Bolt

$

$

Not available

60

Homelite 16072-Z010110-0000

Governor Support Bolt

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 90740-Z010110-0000

Collar

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 90001-0616-01

Bolt

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 16002-Z050110-0000

Carburetor Insulator Gasket..
(Superseded to 16002-Z050110)

$2.99

$

In Stock, only 3 left!

0

64

Homelite 16100-Z440610-QG99

Carburetor Assembly

$

$

Not available

65

Homelite 17001-Z010210-0000

Air Cleaner Gasket

$4.49

$

Usually ships in 3-7 days

0

66

Homelite 16001-Z010110-0000

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

67

Homelite 16003-Z010110-0000

Carburetor Insulator Plate

$4.99

$

In Stock, only 1 left!

0

68

Homelite 17100-Z440110-0000

Air Cleaner

$24.99

$

Usually ships in 3-7 days

0

69

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 18001-Z440110-0000

Exhaust Gasket

$1.99

$

Usually ships in 3-7 days

0

71

Homelite 90303-0800-31

Nut

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 18100-Z443410-H300

Muffler Assembly

$70.99

$

Usually ships in 3-7 days

0

73

Homelite 16620-Z440410-H700

Fuel Tank

$56.99

$

Usually ships in 3-7 days

0

74

Homelite 16652-Z010710-0000

Fuel Strainer

$1.99

$

Usually ships in 3-7 days

0

75

Homelite 16730-Z440210-0099

Fuel Tank Cover

$87.99

$

Usually ships in 3-7 days

0

76

Homelite 16680-Z010110-0000

Fuel Tank Oil Outlet Assembly

$3.49

$

In Stock, only 1 left!

0

77

Homelite 90740-Z010210-0000

Collar

$2.99

$

Usually ships in 3-7 days

0

78

Homelite 90686-Z010710-0000

Fuel Tube

$5.99

$

In Stock, only 1 left!

0

79

Homelite 90001-0630-01

Bolt

$

$

Not available

80

Homelite 16070-Z010110-0000

Governor Support Assembly.

$3.49

$

Usually ships in 3-7 days

0

81

Homelite 30431-Z010110-0000

Rubber Jacket

$2.49

$

Usually ships in 3-7 days

0

82

Homelite 13501-Z010110-0000

Flywheel Nut

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 28002-Z300110-0000

Starter Pulley

$7.99

$

Usually ships in 3-7 days

0

84

Homelite 19352-Z440110-0000

Impeller

$10.99

$

Usually ships in 3-7 days

0

85

Homelite 13510-Z440410-0000

Flywheel Assembly

$86.99

$

Usually ships in 3-7 days

0

86

Homelite 90001-0625-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

87

Homelite 30400-Z010210-0000

Ignition Coil
(Superseded to 30400-Z300110-0000)

$24.99

$

Usually ships in 3-7 days

0

88

Homelite 16520-Z010610-0000

Throttle Control Assembly

$3.49

$

Usually ships in 3-7 days

0

89

Homelite 16063-Z440110-0000

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

90

Homelite 16062-Z010110-0000

Governeor Rod

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 16012-Z010110-0000

Throttle Valve Return Spring..
(Superseded to 16012-Z010110)

$2.49

$

In Stock, Qty 5

0

92

Homelite 90684-Z030120-0000

Clip

$2.49

$

Usually ships in 3-7 days

0

Homelite 120960003

High Altitude Kit (3000-6000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120960004

High Altitude Kit (6000-8000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available
