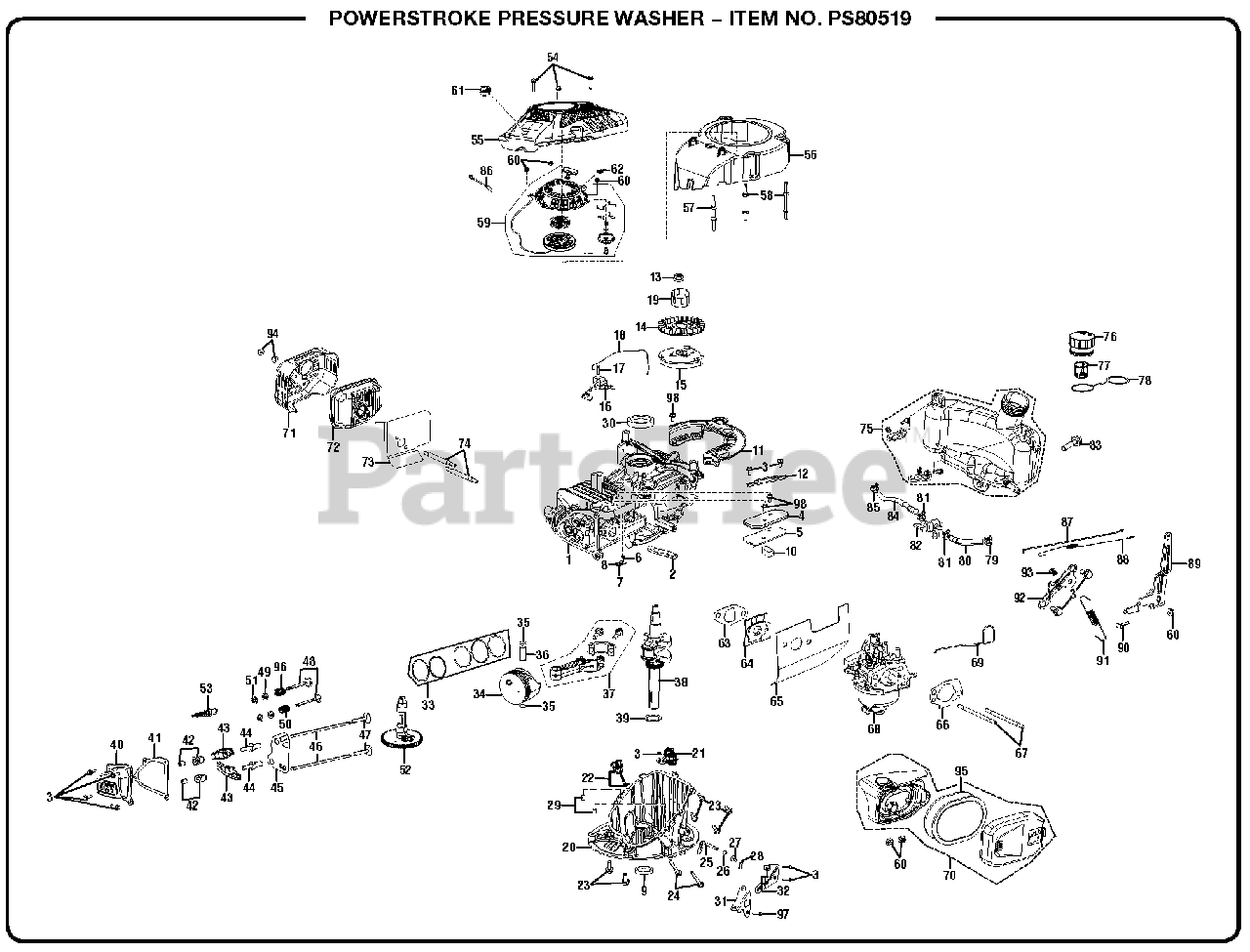

PS 80519 (090079257) - PowerStroke Pressure Washer General Assembly (Part 2) Parts Diagram

Pressure Washer

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 11310-Z180230-0000

Crankcase Assembly (2014)

$169.99

$

Usually ships in 3-7 days

0

Homelite 11310-Z180230-YJA0

Crankcase Assembly (2015)

$150.99

$

Usually ships in 3-7 days

0

2

Homelite 17004-Z180110-0000

Pipe

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

4

Homelite 11333-Z180110-0000

Breathe Groove Cover Plate

$

$

Not available

5

Homelite 11332-Z180110-0000

Breathe Groove Gasket

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 90103-0410-51

Bolt (Cross-Stitch)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 11321-Z180110-0000

Reed

$

$

Not available

8

Homelite 12045-Z240110-0000

Valve Reed Stopping Plate

$

$

Not available

9

Homelite 90682-Z030120-0000

Oil Seal

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 11331-Z180110-0000

Breathe Groove Strainer

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 19340-Z180110-0000

Lower Shield

$

$

Not available

12

Homelite 19340-Z180210-0000

Lower Shield

$

$

Not available

13

Homelite 13501-Z010110-0000

Flywheel Nut

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 19352-Z180110-0000

Impeller

$7.49

$

Usually ships in 3-7 days

0

15

Homelite 13510-Z180210-0000

Flywheel Subassembly

$

$

Not available

16

Homelite 30400-Z180110-0000

Ignition Coil

$32.99

$

In Stock, only 1 left!

0

17

Homelite 90007-0630-A1

Bolt

$

$

Not available

18

Homelite 30423-Z250210-0000

Ignition Coil Wire

$3.99

$

Usually ships in 3-7 days

0

19

Homelite 28002-Z180110-0000

Starter Pulley

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 11411-Z180210-0000

Crankcase Cover (2014)

$

$

Not available

Homelite 11411-Z180220-YJA0

Crankcase Cover (2015)

$

$

Currently unavailable

21

Homelite 16400-Z180110-0000

Governor Gear Assembly

$10.99

$

Usually ships in 3-7 days

0

22

Homelite 15010-Z240120-Q636

Dipstick Assembly

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 90007-0618-A1

Bolt

$

$

Not available

24

Homelite 90007-0650-A1

Bolt

$

$

Not available

25

Homelite 16061-Z180110-0000

Governor Arm

$

$

Not available

26

Homelite 90408-Z010210-0000

Washer

$2.49

$

In Stock, only 2 left!

0

27

Homelite 90682-Z030210-0000

Oil Seal

$

$

Not available

28

Homelite 90501-Z010110-0000

Pin

$2.49

$

In Stock, only 2 left!

0

29

Homelite 90502-0818-00

Pin

$

$

Not available

30

Homelite 90682-Z180110-0000

Oil Seal

$3.99

$

Usually ships in 3-7 days

0

31

Homelite 16757-Z020120-0000

Fuel Valve Holder

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 16921HZ180110-0000

Choke Plate

$

$

Not available

33

Homelite 13200-Z180110-0000

Oil Ring Set (2014)

$16.99

$

Usually ships in 3-7 days

0

Homelite 13200-Z180120-0000

Oil Ring Set (2015)

$12.99

$

Usually ships in 3-7 days

0

34

Homelite 13111-Z180210-0000

Piston (2014)

$32.99

$

Usually ships in 3-7 days

0

Homelite 13111-Z180310-0000

Piston (2015)

$

$

Not available

35

Homelite 13122-Z350110-0000

Piston Pin Clip

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 13121-Z250110-0000

Piston Pin

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 13010-Z180210-0000

Connecting Rod (2014)

$18.99

$

Usually ships in 3-7 days

0

Homelite 13010-Z180220-0000

Connecting Rod (2015)

$17.99

$

Usually ships in 3-7 days

0

38

Homelite 13300-Z180410-0000

Crankshaft Assembly

$86.99

$

Usually ships in 3-7 days

0

39

Homelite 90408-Z030210-0000

Washer

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 12411-Z180110-0000

Cylinder Head Cover

$

$

Not available

41

Homelite 12004-Z180110-0000

Cylinder Head Cover Gasket

$3.49

$

In Stock, only 1 left!

0

42

Homelite 97002-Z240110-0000

Valve Adjusting Nut

$3.49

$

In Stock, only 2 left!

0

43

Homelite 14311-Z180110-0000

Valve Rocker

$3.49

$

In Stock, only 2 left!

0

44

Homelite 14313-Z240110-0000

Valve Adjusting Bolt

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 14091-Z180110-0000

Plate Support

$2.49

$

In Stock, only 1 left!

0

46

Homelite 14071-Z180110-0000

Valve Lifter

$3.49

$

In Stock, only 2 left!

0

47

Homelite 14081-Z240110-0000

Valve Tappet

$3.99

$

In Stock, only 2 left!

0

48

Homelite 12110-Z240110-0000

Valve

$12.99

$

Usually ships in 3-7 days

0

49

Homelite 12112-Z010110-0000

Valve Spring Seat
(Superseded to 12112-Z010110)

$5.49

$

Usually ships in 3-7 days

0

50

Homelite 12103-Z240110-0000

Valve Spring

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 12101-Z010110-0000

Seal Guide

$4.49

$

Usually ships in 3-7 days

0

52

Homelite 14200-Z180110-0000

Camshaft Assembly

$22.99

$

Usually ships in 3-7 days

0

53

Homelite 30010-Z180110-0000

Spark Plug

$11.99

$

Usually ships in 3-7 days

0

54

Homelite 90001-0520-01

Bolt

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 80001-Z180210-SG00

Engine Housing

$17.99

$

Usually ships in 3-7 days

0

56

Homelite 28110-Z180110-0000

Shroud

$20.99

$

Usually ships in 3-7 days

0

57

Homelite 28001-Z180210-0000

Stud

$

$

Not available

58

Homelite 28001-Z180110-0000

Stud

$

$

Not available

59

Homelite 28200-Z180110-0000

Recoil Starter Assembly (2014)

$33.99

$

Usually ships in 3-7 days

0

Homelite 28200-Z180120-0000

Recoil Starter Assembly (2015)

$46.99

$

Usually ships in 3-7 days

0

60

Homelite 90305-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 35160-Y2D0110-Q200

Stop Engine Switch

$

$

Not available

62

Homelite 28201-Z030110-0001

Cable Clip

$

$

Not available

63

Homelite 16004-Z180210-0000

Insulator Plate Gasket

$

$

Not available

64

Homelite 16003-Z180110-0000

Carburetor Insulator Plate

$5.99

$

Usually ships in 3-7 days

0

65

Homelite 16004-Z180110-0000

Insulator Plate Gasket

$1.99

$

In Stock, only 1 left!

0

66

Homelite 16001-Z180110-0000

Carburetor Gasket

$

$

Not available

67

Homelite 90207-Z180110-0000

Stud

$2.99

$

Usually ships in 3-7 days

0

68

Homelite 16100-Z180410-0099

Carburetor Assembly (2014)

$64.99

$

Usually ships in 3-7 days

0

Homelite 16100-Z180810-0099

Carburetor Assembly (2015)

$56.99

$

Usually ships in 3-7 days

0

69

Homelite 16123-Z180210-0000

Choke Rod

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 17100-Z180210-0000

Air Cleaner

$20.99

$

In Stock, only 1 left!

0

71

Homelite 18130-Z350220-QB00

Muffler Outer Cover

$17.99

$

Usually ships in 3-7 days

0

72

Homelite 18100-Z180210-0000

Muffler Assembly (2014)

$52.99

$

Usually ships in 3-7 days

0

Homelite 18100-Z350110-0000

Muffler Assembly (2015)

$

$

Not available

73

Homelite 18001-Z180130-0000

Exhaust Outlet Gasket

$4.99

$

Usually ships in 3-7 days

0

74

Homelite 90207-Z180210-0000

Stud

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 16600-Z180110-Q299

Fuel Tank

$34.99

$

Usually ships in 3-7 days

0

76

Homelite 16730-Z620210-0000

Fuel Tank Cover

$

$

Not available

77

Homelite 16652-Z030110-0000

Fuel Tank Strainer

$2.49

$

In Stock, only 1 left!

0

78

Homelite 16744-Z620120-0000

Fuel Tank Lock Ring

$

$

Not available

79

Homelite 90685-Z030410-0000

Clamp

$2.49

$

In Stock, only 1 left!

0

80

Homelite 90686-Z180310-0000

Fuel Tube

$5.49

$

In Stock, only 1 left!

0

81

Homelite 90685-Z020110-0000

Clamp

$

$

Not available

82

Homelite 16752-Z020110-0000

Fuel Valve (2014)

$10.99

$

Usually ships in 3-7 days

0

Homelite 16750-Z020110-0000

Fuel Valve (2015)

$21.99

$

Usually ships in 3-7 days

0

83

Homelite 90007-0625-A1

Bolt

$

$

Not available

84

Homelite 90686-Z180210-0000

Fuel Tube

$9.99

$

In Stock, only 1 left!

0

85

Homelite 90685-Z030220-0000

Clamp

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 35555-Z010120-0000

Stop Engine Switch Grounding Wire

$2.49

$

Usually ships in 3-7 days

0

87

Homelite 16062-Z180110-0000

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 16012-Z180110-0000

Throttle Valve Returning Spring (2014)

$

$

Not available

Homelite 16012-Z180120-0000

Throttle Valve Returning Spring (2015)

$

$

Not available

89

Homelite 16070-Z180110-0000

Governer Support Subassembly

$

$

Not available

90

Homelite 16072-Z010110-0000

Governer Support Bolt

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 16063-Z180310-0000

Governer Spring

$2.49

$

Usually ships in 3-7 days

0

92

Homelite 16561-Z180120-0000

Throttle Control Bottom Plate Subassembly

$

$

Not available

93

Homelite 90684-Z250110-0000

Clamp

$

$

Not available

94

Homelite 90310-0600-31

Nut

$2.49

$

Usually ships in 3-7 days

0

95

Homelite 17100-Z180210

Air Filter

$

$

Currently unavailable

96

Homelite 12103-Z180110-0000

Valve Spring

$1.99

$

Usually ships in 3-7 days

0

97

Homelite 90001-0512-01

Bolt

$

$

Not available

98

Homelite 90007-0610-A1

Bolt

$

$

Not available

Homelite 120960009

High Altitude Kit, Yinglong Carburetor (3000 - 6000 ft., Not Included), Not Shown

$

$

Not available

Homelite 120960010

High Altitude Kit, Yinglong Carburetor (6000 - 8000 ft., Not Included)

$

$

Not available

Homelite 120968019

High Altitude Kit, Saipu Carburetor (3000 - 6000 ft., Not Included)

$7.49

$

Usually ships in 3-7 days

0

Homelite 120968020

High Altitude Kit, Saipu Carburetor (6000 - 8000 ft., Not Included)

$

$

Not available

Homelite 120968021

High Altitude Kit, Ruixing Carburetor (3000 - 6000 ft., Not Included)

$

$

Not available

Homelite 120968022

High Altitude Kit, Ruixing Carburetor (6000 - 8000 ft., Not Included)

$

$

Not available
