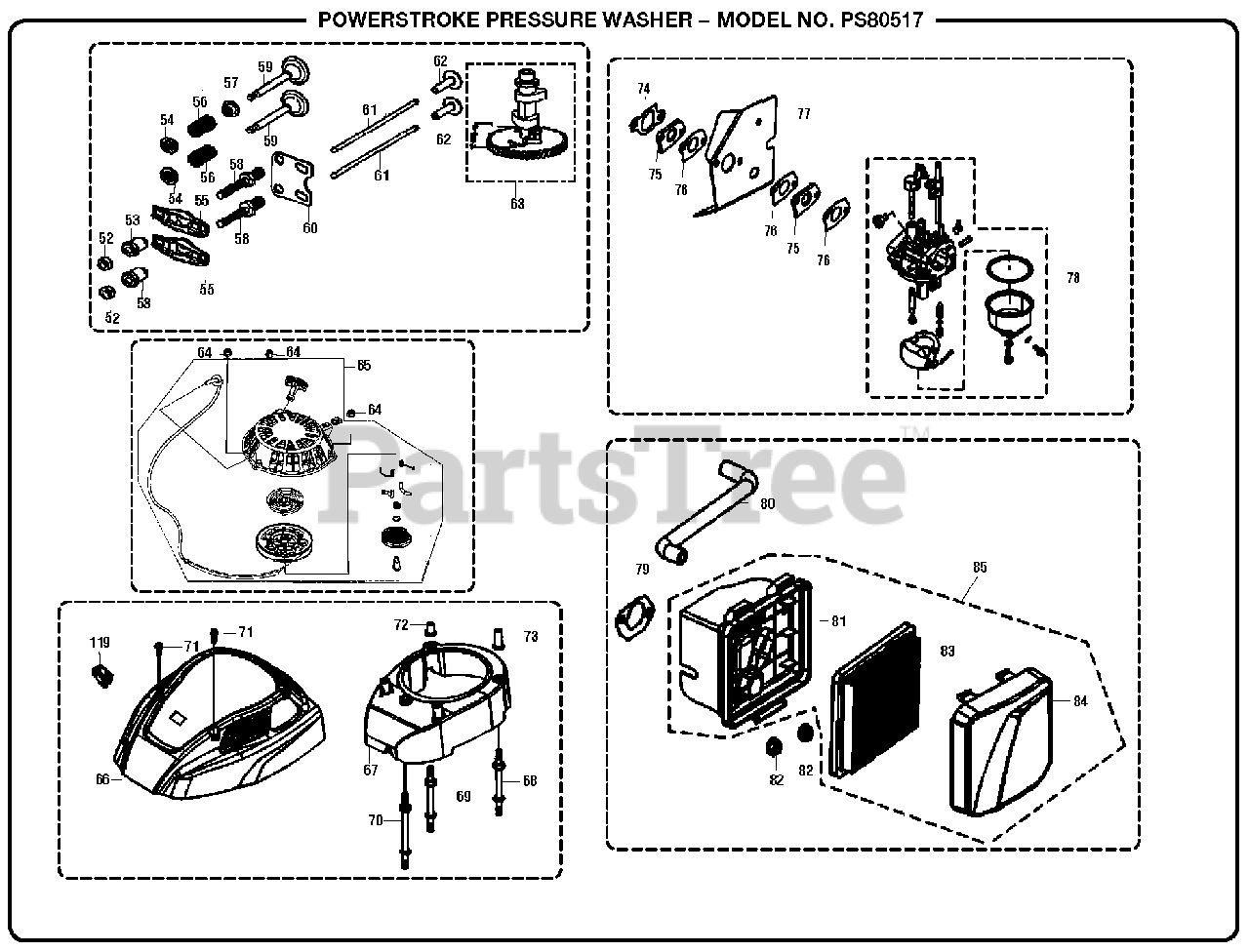

PS 80517 - PowerStroke Pressure Washer General Assembly (Part 3) Parts Diagram

Pressure Washer

General Assembly (Part 3) Parts Diagram

  • Title

CAMSHAFT SUBASSEMBLY

$

$

Not available

52

Homelite 14312-Z010110

Valve Lock Nut
(Superseded to 14312-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 14314-Z010110

Valve Adjusting Nut
(Superseded to 14314-Z010110-0000)

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 12112-Z010110

Valve Spring Seat

$5.49

$

Usually ships in 3-7 days

0

55

Homelite 14311-Z030110

Valve Rocker

$

$

Currently unavailable

56

Homelite 12103-Z030110

Valve Spring

$

$

Currently unavailable

57

$

$

Currently unavailable

58

Homelite 14313-Z010110

Valve Adjusting Bolt
(Superseded to 14313-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 12111-Z250110

Intake Valve

$

$

Currently unavailable

60

Homelite 14091-Z250210

Lifter Stop Plate Assembly

$

$

Currently unavailable

61

Homelite 14071-Z250210

Valve Lifter

$

$

Currently unavailable

62

Homelite 14081-Z010110

Valve Tappet

$

$

Currently unavailable

63

Homelite 14200-Z250310

Camshaft Assembly

$

$

Currently unavailable

RECOIL STARTER

$

$

Not available

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 28200-Z030220-Q200

Recoil Starts Assembly

$

$

Not available

FAN SHIELD

$

$

Not available

66

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$2.49

$

Usually ships in 3-7 days

0

$

$

Currently unavailable

$

$

Currently unavailable

119

Homelite 35160-Y2D110-Q200

Stop Engine Switch

$

$

Currently unavailable

CARBURETOR ASSEMBLY

$

$

Not available

74

Homelite 16004-Z250110

Insulator Plate Gasket

$

$

Currently unavailable

75

Homelite 16003-Z250210

Carburetor Insulator Plate

$

$

Currently unavailable

76

Homelite 16001-Z010110

Carburetor Gasket
(Superseded to 16001-Z010110-0000)

$1.99

$

Usually ships in 3-7 days

0

77

Homelite 16002-Z250110

Carburetor Insulator Gasket

$

$

Currently unavailable

78

Homelite 16100-Z251010

Carburetor Assembly

$

$

Currently unavailable

AIR CLEANER

$

$

Not available

79

Homelite 17001-Z030120

Air Cleaner Gasket

$

$

Currently unavailable

80

Homelite 17004-Z250310

Breather tube

$

$

Currently unavailable

81

Homelite 17101-Z250420

Air Cleaner Case
(Superseded to 17101-Z250420-0000)

$7.99

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 17150-Z030110

Air Cleaner Subassembly Element

$

$

Currently unavailable

84

Homelite 17104-Z250310

Cleaner Case Cover

$

$

Currently unavailable

$

$

Currently unavailable
