PS 803125 (090079381) - PowerStroke Pressure Washer, Rev 01 (2017-10) General Assembly Parts Diagram

Pressure Washer, Rev 01

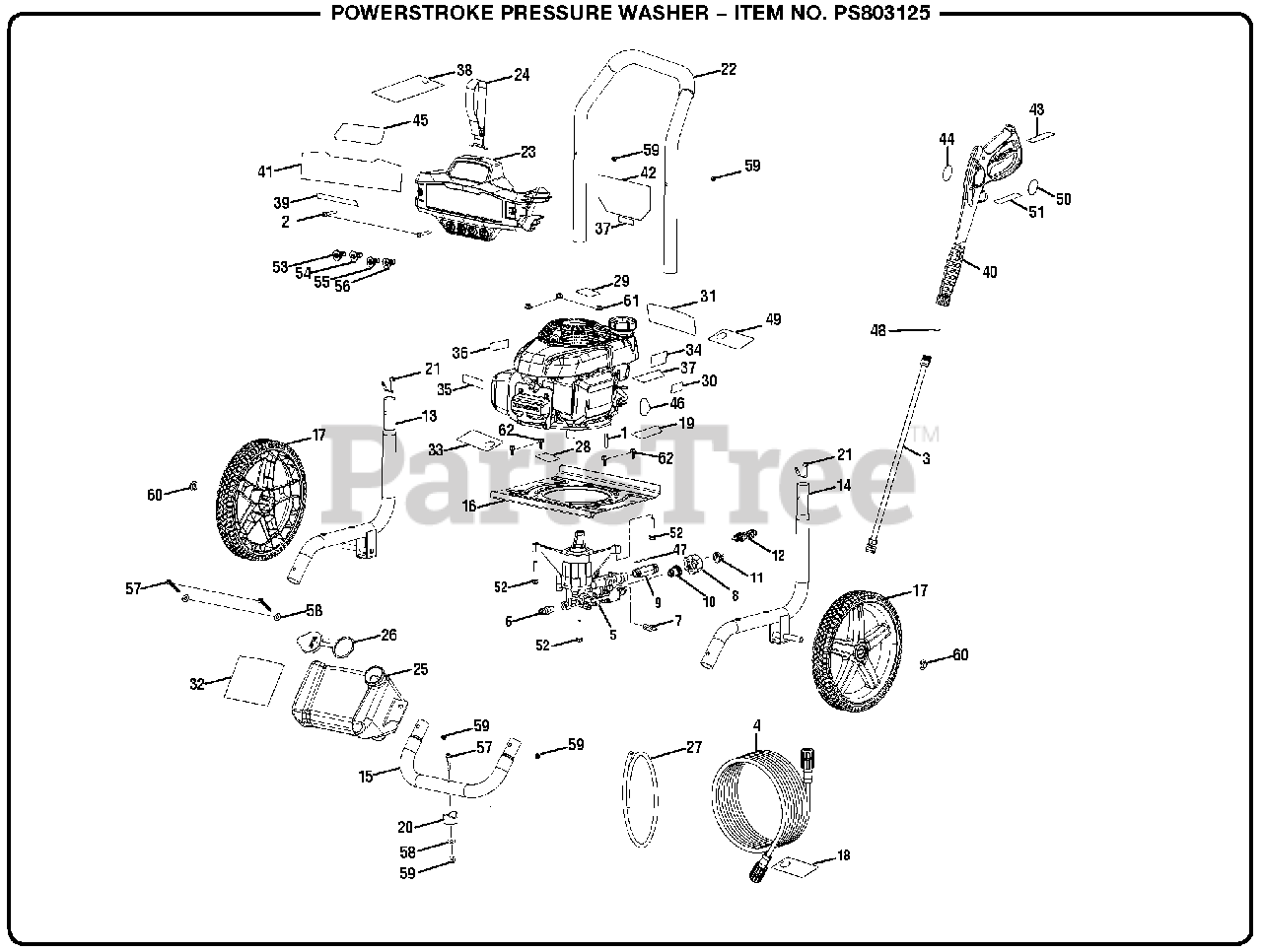

General Assembly Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 308506014

Spray Wand

$

$

Not available

4

Homelite 308835083

Hose

$144.99

$

Usually ships in 3-7 days

0

5

Homelite 308653078

Pump

Note: (Incl. Key Nos. 7-12)

$292.99

$

In Stock, only 1 left!

0

6

Homelite 678169004

Thermal Release Valve

$

$

Not available

7

Homelite 308452002

Soap Injector Kit

$5.99

$

In Stock, Qty 5

0

8

Homelite 310993003

Inlet Filter Adapter Insert

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

10

Homelite 642058001

Inlet Filter Connector

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 308662001

Inlet Filter Screen

$

$

Not available

12

Homelite 310924003

Unloader Valve Assembly

$30.99

$

Usually ships in 3-7 days

0

13

Homelite 310703012

Left Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 310704013

Right Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310742028

Front Frame Assembly

Note: (Incl. Key Nos. 20 & 57-59)

$37.99

$

Usually ships in 3-7 days

0

16

Homelite 638662037

Engine Plate

$26.99

$

Usually ships in 3-7 days

0

17

Homelite 308451060

Wheel

$

$

Not available

18

Homelite 918016005

High Pressure Hose Hangtag

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 940803288

EMC ICES-2/NMB-2 Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 308421004

Handle Spring Clip

$

$

Not available

22

Homelite 308638060

Handle Assembly

$31.99

$

Usually ships in 3-7 days

0

23

Homelite 310673030

Hose and Nozzle Holder Assembly

$

$

Not available

24

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

25

Homelite 580875021

Soap Tank

$

$

Not available

26

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

27

Homelite 570728009

Chemical Siphon Tube
(Superseded to 561399003)

$2.99

$

In Stock, only 2 left!

0

28

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 940947013

Combustion Warning Label (English/Spanish)

$

$

Not available

30

Homelite 940648004

Choke Label

$

$

Not available

31

Homelite 940894014

Danger Label (English/Spanish)

$

$

Not available

32

Homelite 940851312

Soap Tank Label

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 961454001

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

35

Homelite 941714004

Logo Label

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 940680083

Hot Surface and Exhaust Label

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 941486002

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 961039005

Nozzle Hangtag

$

$

Not available

39

Homelite 940851245

Nozzle Callout Label

$

$

Not available

40

Homelite 308760019

Trigger Handle Assembly

Note: (Incl. Key Nos. 50-51)

$46.99

$

Usually ships in 3-7 days

0

41

Homelite 940851310

Performance Label

$

$

Not available

42

Homelite 940851311

Quick Start Label

$

$

Not available

43

Homelite 940654228

Trigger Handle Warning Label (French/Spanish)

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 940786044

Powerstroke Spray Wand Logo Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940705388

Logo Label

$

$

Not available

46

Homelite 941550007

Engine Label

$

$

Not available

47

Homelite 940851246

High Pressure Hose Outlet Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 570742072

O-Ring (9.5 x 2.65, NBR Shore A 90)

$3.49

$

In Stock, Qty 6

0

49

Homelite 940473011

Danger Hangtag

$

$

Not available

50

Homelite 940654084

Trigger Handle Warning Label (English)

$2.99

$

In Stock, only 1 left!

0

51

Homelite 940786047

Trigger Handle Specifications Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 660962003

Bolt (M8 x 60mm, Hex Hd.)

$1.99

$

In Stock, only 3 left!

0

53

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

54

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

55

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

56

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

57

Homelite 661503015

Screw (M6 x 48 mm, T-30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

59

Homelite 678610006

Lock Nut (M6)

$

$

Not available

60

Homelite 679957001

Cap Nut

$

$

Not available

61

Homelite 678774002

Lock Nut (M8)

$

$

Not available

62

Homelite 661505020

Flange Bolt (M6 x 16mm, Hex Hd.)

$

$

Not available

Homelite 995000210

Operator's Manual

$

$

Currently unavailable

Homelite 995000211

Quick Start Guide

$

$

Currently unavailable

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

$

$

Not available

Homelite 991000839

O-Ring Kit Insert Sheet

$

$

Not available
