PS 720 R (41BJPS-C954) - Cub Cadet Trimmer Plus Pole Saw Attachment att General Assembly Parts Diagram

Trimmer Plus Pole Saw Attachment

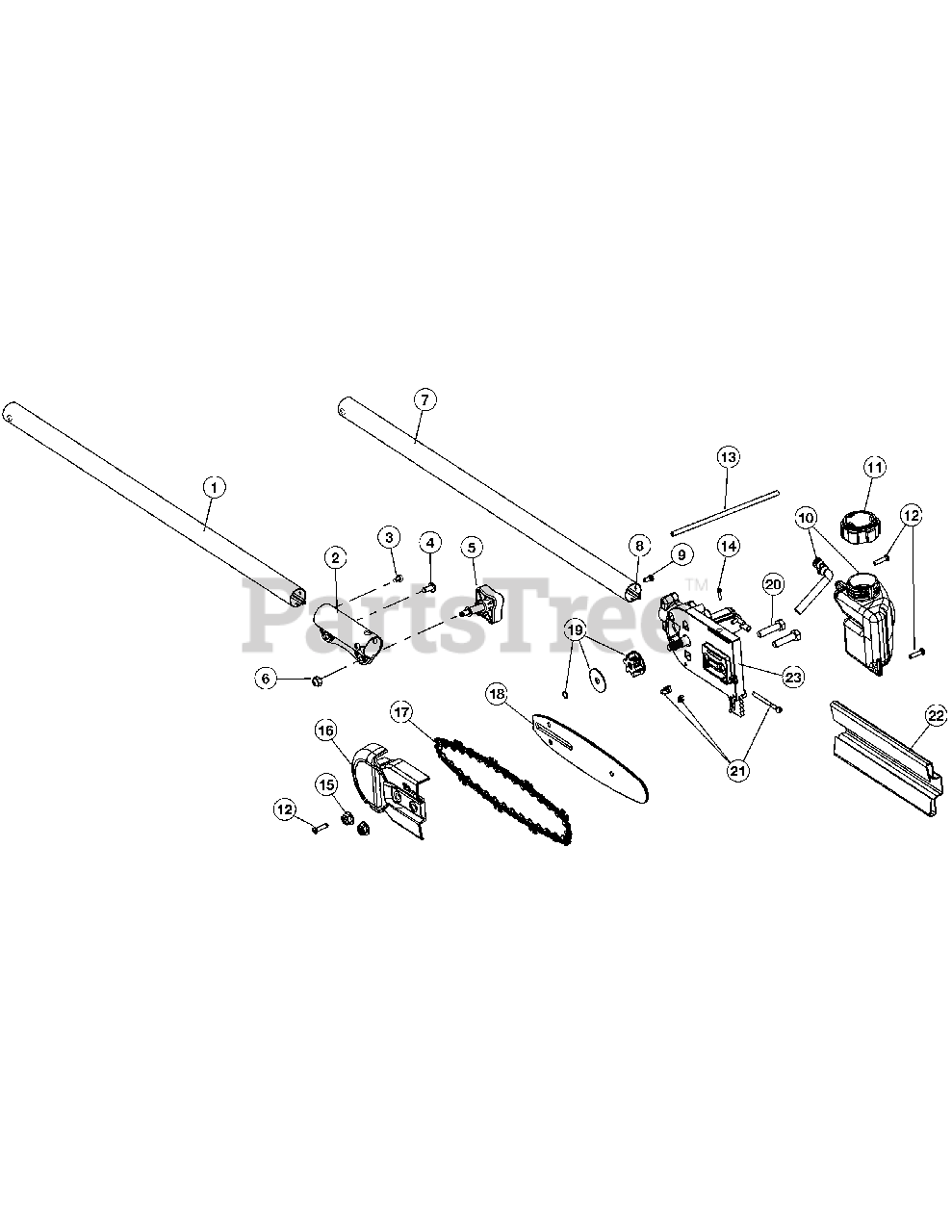

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04352

Extension Boom

$80.99

$

In Stock, Qty 5

0

2

Cub Cadet 753-1190

Split Boom Coupler (includes 3-6)

$23.99

$

In Stock, only 1 left!

0

3

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

5

Cub Cadet 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

6

Cub Cadet 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 753-04089

Drive Shaft Housing

$49.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-181166

Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-182519

Screw

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 753-05586

Oil Tank Assembly

$30.99

$

In Stock, Qty 13

0

11

Cub Cadet 753-05587

Fuel Cap Assembly

$8.99

$

In Stock, Qty 10

0

12

Cub Cadet 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 753-05588

Oil Line

$9.99

$

In Stock, only 3 left!

0

14

Cub Cadet 753-05589

Screw
(Superseded to 710-04696)

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-05591

Nut
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 753-05593

Chain Guard

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-05685

Chain

$

$

Not available

18

Cub Cadet 753-05684

Bar

$

$

Not available

19

Cub Cadet 753-05595

Sprocket Assembly

$11.99

$

In Stock, Qty 20+

0

20

Cub Cadet 753-05596

Bolt
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 19

0

21

Cub Cadet 753-05597

Chain Tension Hardware Assembly

$10.99

$

In Stock, only 2 left!

0

22

Cub Cadet 753-05686

Chain Cover
(Superseded to 731-05906-2)

$7.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-05599

Gearbox Assembly (includes 14 & 19)

$106.99

$

In Stock, only 2 left!

0

Cub Cadet 791-612605

Hanger
(Superseded to 731-08926)

Note: Optional

$2.99

$

In Stock, Qty 20+

0
