PS 720 R (41AJPS-C902) - TrimmerPlus Pole Saw Attachment General Assembly (2008 & After) Parts Diagram

Pole Saw Attachment

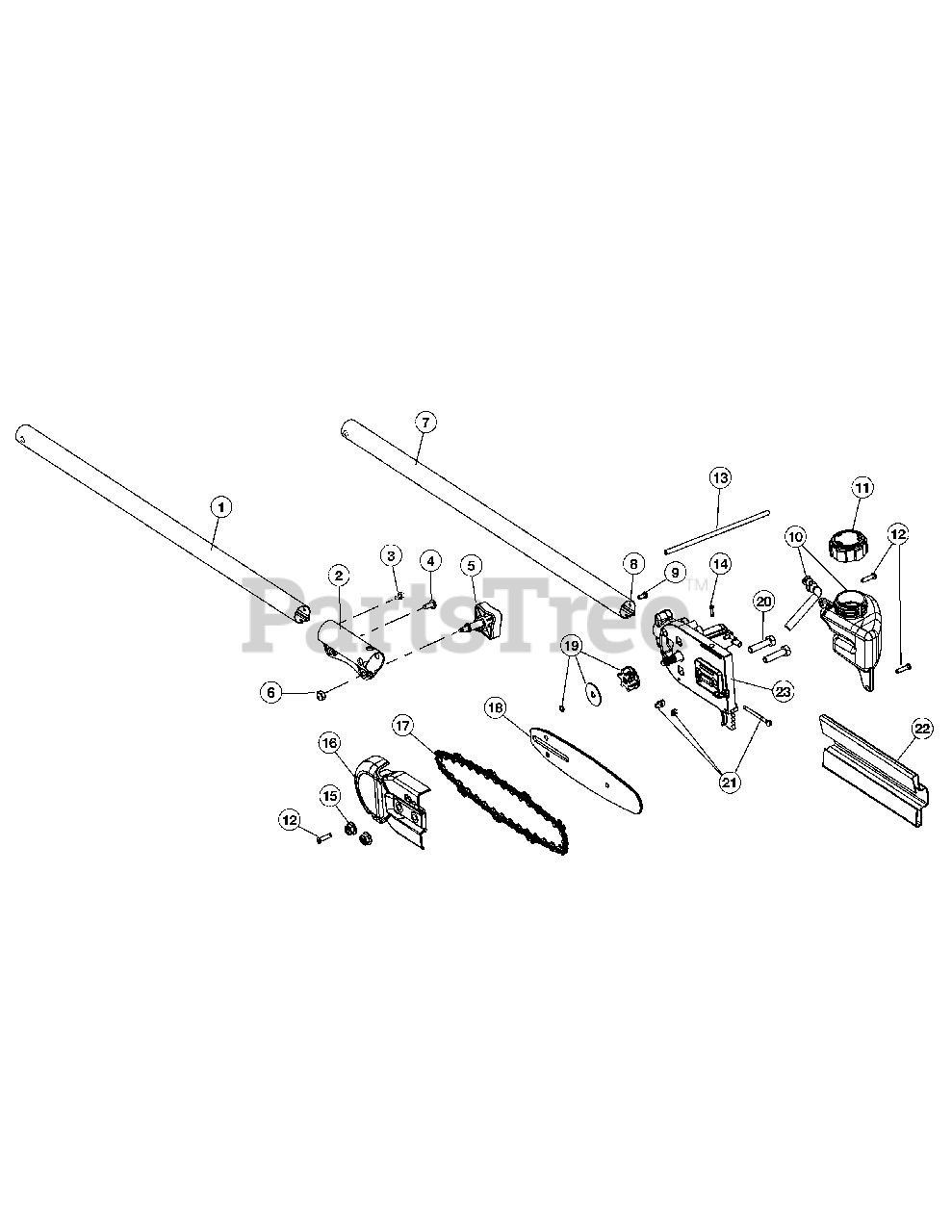

General Assembly (2008 & After) Parts Diagram

  • Title

1

MTD 753-04352

Extension Boom

$80.99

$

In Stock, Qty 5

0

2

MTD 753-1190

Split Boom Coupler (includes 3-6)

$23.99

$

In Stock, only 1 left!

0

3

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

4

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

5

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

6

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

7

MTD 753-05724

Drive Shaft Housing (includes 8)

$40.99

$

In Stock, only 2 left!

0

8

MTD 791-181166

Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

9

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 753-05586

Oil Tank Assembly

$30.99

$

Usually ships in 3-6 days

0

11

MTD 753-05587

Fuel Cap Assembly

$8.99

$

In Stock, Qty 10

0

12

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

13

MTD 753-05588

Oil Line

$9.99

$

Usually ships in 3-6 days

0

14

MTD 710-04696

Screw

$3.99

$

In Stock, only 2 left!

0

15

MTD 712-04063

Nut

$3.99

$

In Stock, Qty 5

0

16

MTD 753-05593

Chain Guard

$13.99

$

Usually ships in 3-6 days

0

17

MTD 753-05592

Chain

$38.99

$

In Stock, Qty 13

0

18

MTD 753-05594

Bar

$54.99

$

In Stock, only 2 left!

0

19

MTD 753-05595

Sprocket Assembly

$11.99

$

In Stock, Qty 20+

0

20

MTD 710-0528

Bolt

$4.49

$

In Stock, Qty 20+

0

21

MTD 753-05597

Chain Tension Hardware Assembly

$10.99

$

In Stock, only 3 left!

0

22

MTD 731-05906

Chain Cover

$6.49

$

Usually ships in 3-6 days

0

23

MTD 753-05599

Gearbox Assembly (includes 14 & 19)

$106.99

$

Usually ships in 3-6 days

0

MTD 791-612605

Hanger
(Superseded to 731-08926)

Note: (not shown)

$2.99

$

In Stock, only 3 left!

0

MTD 797-00056

Allen Wrench

Note: (not shown)

$10.99

$

Usually ships in 3-6 days

0
