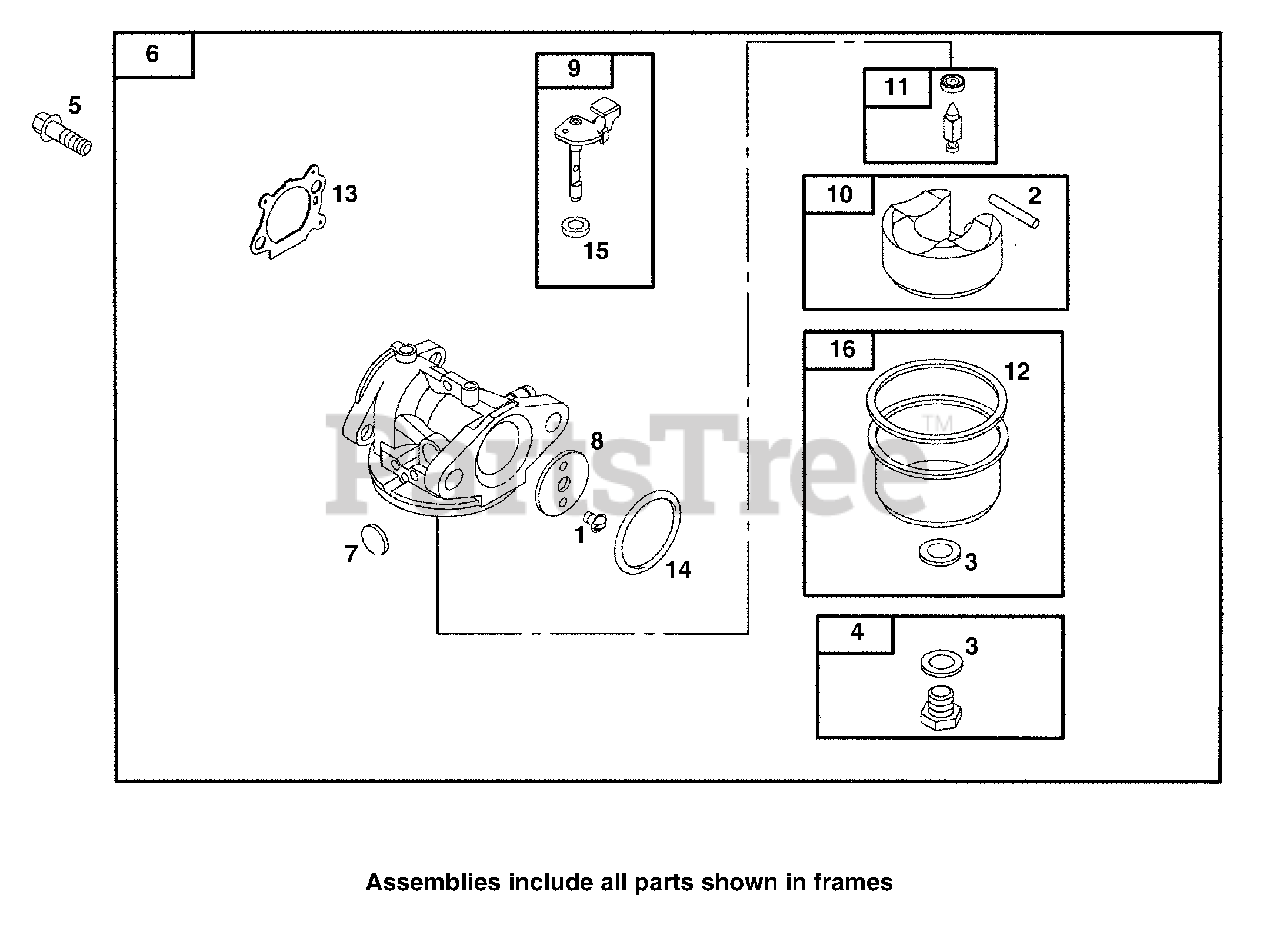

PS 520 (11B-106F100) - Cub Cadet Walk-Behind Mower Engine (1998) Carburetor Parts Diagram

Walk-Behind Mower Engine

Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-94098

Choke/Thread Screw
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

2

Cub Cadet BS-231371

Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

3

Bowl Washer (Sold only in kit)

$

$

Not available

4

Cub Cadet BS-494870

Main Jet (Standard)

$

$

Not available

Cub Cadet BS-497315

Main Jet (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-94525

Hex Screw
(Superseded to BS-692524)

$

$

Not available

6

Cub Cadet BS-498170

Carburetor
(Superseded to BS-799868)

$63.99

$

Usually ships in 2-12 days

0

7

Welch Plug (Sold only in kit)

$

$

Not available

8

Cub Cadet BS-224908

Throttle Valve
(Superseded to BS-691203)

$9.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-493267

Throttle Shaft Kit

$16.99

$

In Stock, only 4 left!

0

10

Cub Cadet BS-398187

Carburetor Float

$9.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

12

Bowl Gasket (Sold only in kit)

$

$

Not available

13

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-270344

Intake Manifold Seal
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-280566

Dust Seal

$

$

Not available

16

Cub Cadet BS-493640

Float Bowl
(Superseded to BS-796611)

$

$

Not available
