PS 520 (11A-108C101) - Cub Cadet Walk-Behind Mower Engine (1999) Flywheel, Fuel Tank, Starter & Blower Housing Parts Diagram

Walk-Behind Mower Engine

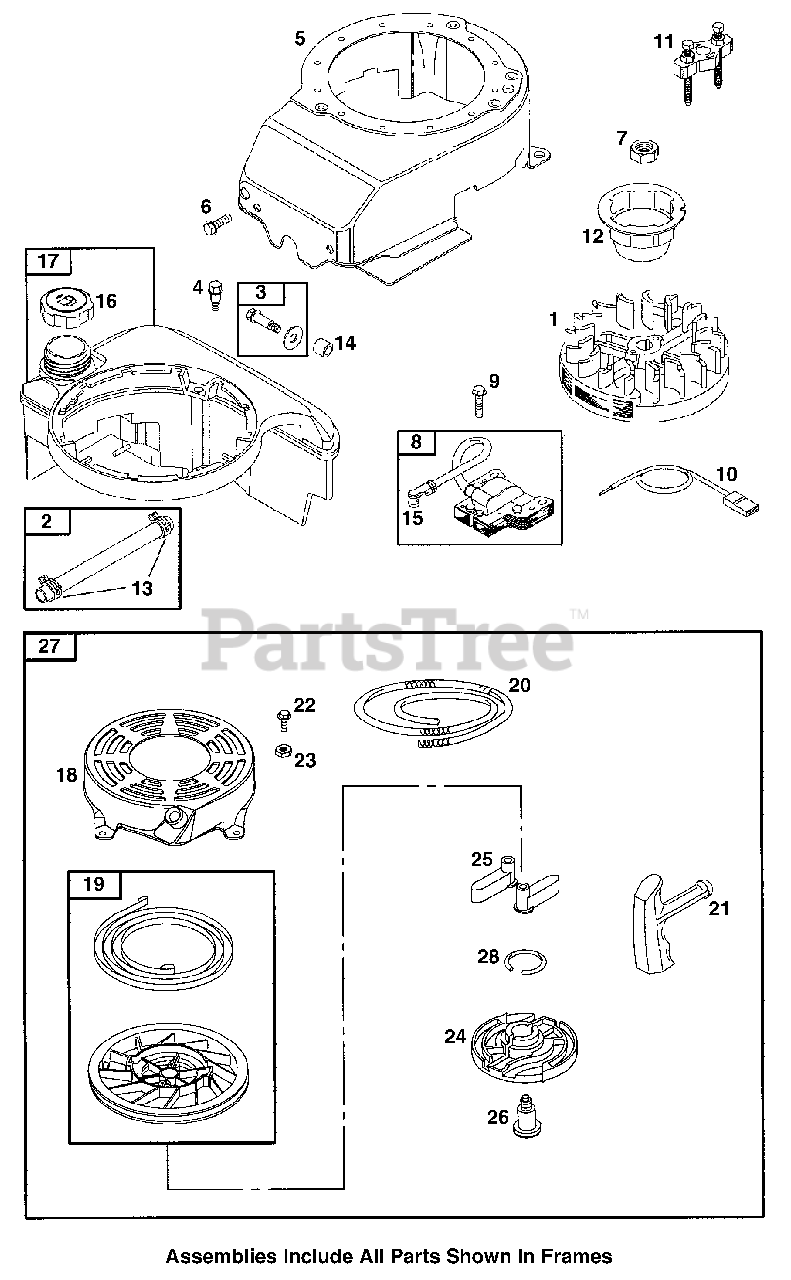

Flywheel, Fuel Tank, Starter & Blower Housing Parts Diagram

  • Title
1

Cub Cadet BS-492177

Flywheel
(Superseded to BS-691987)

$112.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-492790

Fuel Line
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-398540

Washer Kit Screw
(Superseded to BS-692311)

$7.49

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-94511

Shoulder Screw
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 8

0

5

Cub Cadet BS-493293

Blower Housing
(Superseded to BS-795071)

$102.99

$

In Stock, only 2 left!

0

6

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-94877

Flywheel Nut
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 12

0

8

Cub Cadet BS-802574

Magneto Armature
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 9

0

9

Cub Cadet BS-94731

Hex Screw

$

$

Not available

10

Cub Cadet BS-497833

Stop Wire
(Superseded to BS-692390)

$

$

Not available

11

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-225121

Flywheel Cup
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93053

Hose Clamp
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-280512

Fuel Tank Spacer
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 5

0

15

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-397974

Fuel Tank Cap
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-495224

Fuel Tank
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0

18

Cub Cadet BS-497440

Rewind Starter Housing
(Superseded to BS-691421)

$64.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-498144

Starter Pulley

$19.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-280399

Starter Rope
(Superseded to BS-280399S)

Note: (Cut to 88-5/8")

$5.99

$

In Stock, Qty 9

0

21

Cub Cadet BS-393152

Starter Rope Grip

$4.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-94904

Hex Screw
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-94908

Hex Nut
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

24

Cub Cadet BS-281503

Pawl Friction Plate
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-281505

Rachet Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

26

Cub Cadet BS-94983

Shoulder Screw

$

$

Currently unavailable

27

Cub Cadet BS-497680

Rewind Starter

$49.99

$

In Stock, Qty 20+

0

28

Cub Cadet BS-263073

Friction Spring
(Superseded to BS-691855)

$4.49

$

In Stock, only 3 left!

0
