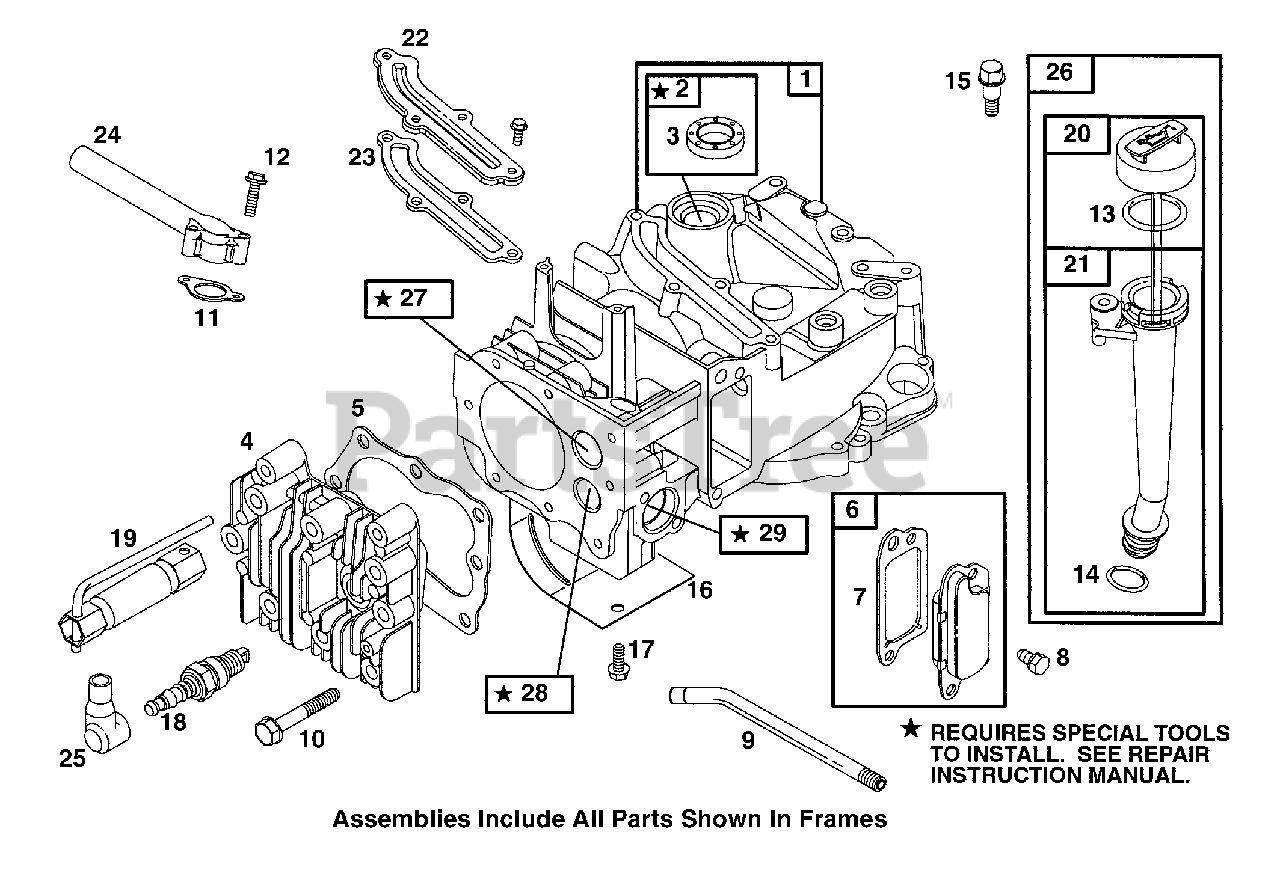

PS 520 (11A-108C101) - Cub Cadet Walk-Behind Mower Engine (1999) Cylinder Block Parts Diagram

Walk-Behind Mower Engine

Cylinder Block Parts Diagram

  • Title
1

Cub Cadet BS-494062

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Bushing/Seal Kit

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-214368

Cylinder Head
(Superseded to BS-691160)

$55.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-272916

Cylinder Head Gasket
(Superseded to BS-692249)

$8.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-94650

Hex Screw

$3.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-231933

Breather Tube
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-94547

Hex Screw
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet BS-94526

Hex Screw
(Superseded to BS-691650)

$2.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-280939

O-Ring Seal

$

$

Currently unavailable

14

Cub Cadet BS-280966

O-Ring Seal
(Superseded to BS-692296)

$4.99

$

In Stock, Qty 8

0

15

Cub Cadet BS-94511

Shoulder Screw
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-224324

Cylinder Shield

$

$

Not available

17

Cub Cadet BS-94515

Hex Screw

$

$

Not available

18

Cub Cadet BS-802592

Spark Plug

$

$

Currently unavailable

19

Cub Cadet BS-89838

Spark Plug Wrench
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

20

Cub Cadet BS-495264

Dipstick
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

21

Cub Cadet BS-495265

Oil Filler Tube

$

$

Not available

22

Cub Cadet BS-224328

Breather Passage Cover

$

$

Not available

23

Cub Cadet BS-272238

Breather Passage Gasket
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-497465

Intake Manifold
(Superseded to BS-794305)

$

$

Not available

25

Cub Cadet BS-66538

Spark Plug Elbow
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 12

0

26

Cub Cadet BS-495263

Dipstick/Tube Assembly
(Superseded to BS-692047)

$

$

Not available

27

Cub Cadet BS-213512

Valve Seat
(Superseded to BS-691155)

$8.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-213513

Valve Seat

$

$

Not available

29

Cub Cadet BS-262001

Guide Bushing

$13.99

$

Usually ships in 2-12 days

0
