PS 520 (11A-108C101) - Cub Cadet Walk-Behind Mower (1999) Grass Catcher 106 Parts Diagram

Walk-Behind Mower

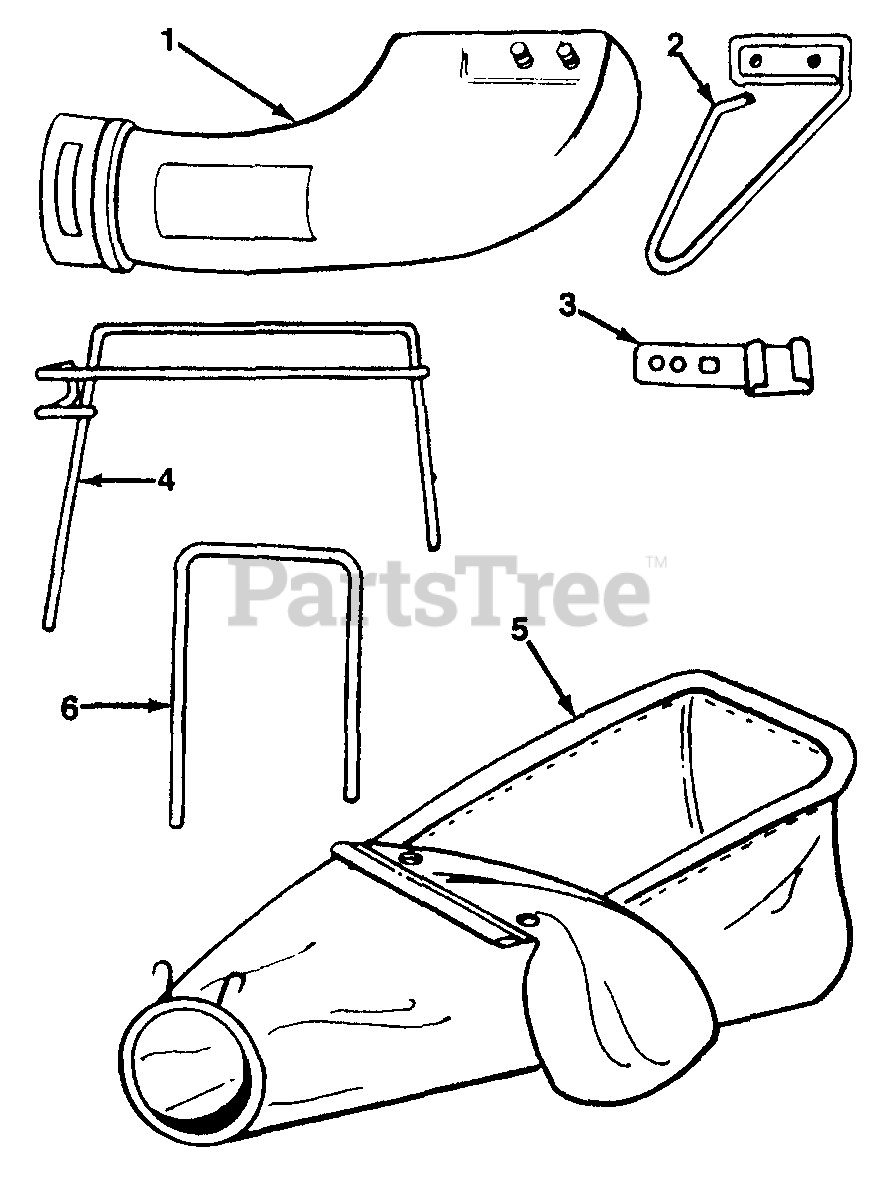

Grass Catcher 106 Parts Diagram

  • Title
1

Cub Cadet 731-1424

Plastic Chute

$

$

Not available

2

Cub Cadet 747-0891

Chute Mounting Bracket w/Wire

$

$

Not available

3

Cub Cadet 782-7007

Handle Bracket
(Superseded to 982-7007)

$

$

Not available

4

Cub Cadet 747-0892

Bag Frame

$

$

Not available

5

Cub Cadet 764-0453

Bag w/Clamp Ring

$

$

Not available

6

Cub Cadet 749-0931

Upper Support Tube

$

$

Not available

?7

Cub Cadet 710-0286

Truss Mach. Scr. 1/4-2 x .5" Lg.

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

?8

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0
