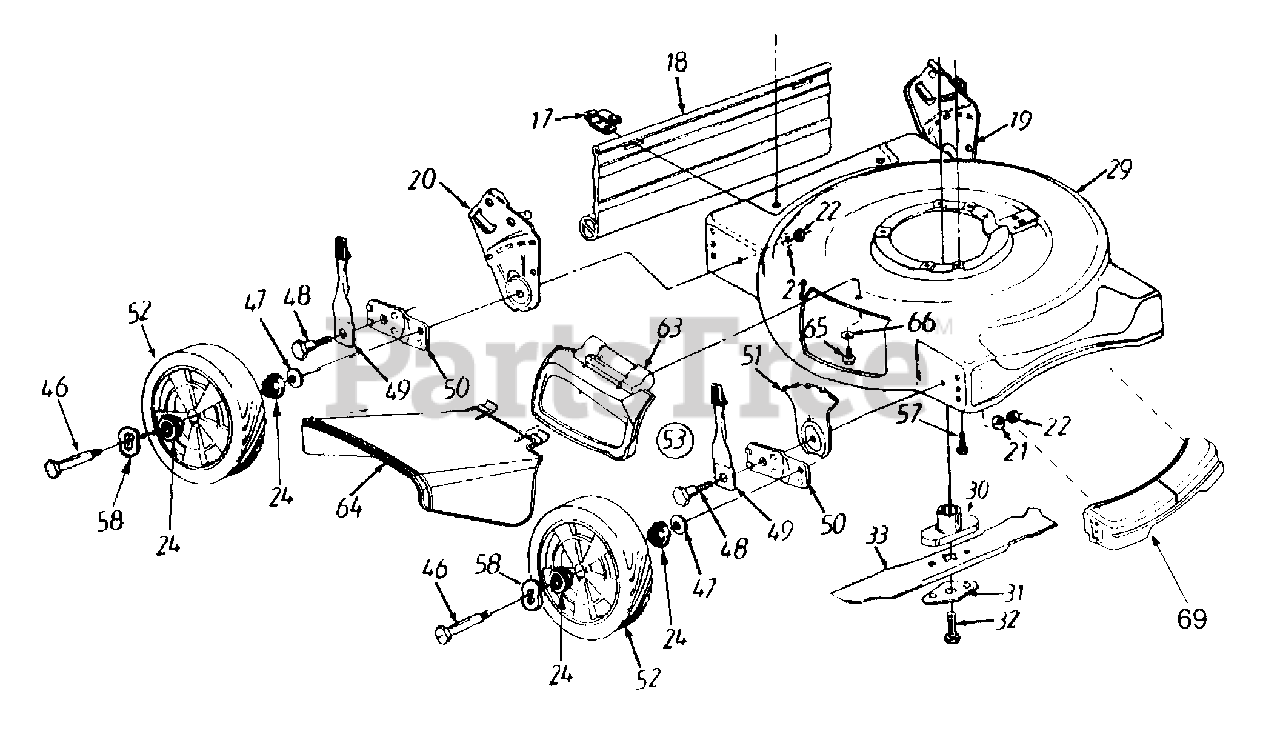

PS 520 (11A-108C101) - Cub Cadet Walk-Behind Mower (1999) Deck Assembly Parts Diagram

Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

17

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

Cub Cadet 682-3025

Handle Bracket Ass'y LH
(Superseded to 987-02107A)

Variations

Cub Cadet 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

20

Cub Cadet 682-3024

Handle Bracket Ass'y RH
(Superseded to 987-02106A)

Variations

Cub Cadet 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0356

Bell Washer .39" ID x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

?23

Cub Cadet 731-0982A

Hub Cap: Radial Grey
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

24

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 682-0025A-0498

Deck Assembly
(Superseded to 682-0139-0716)

$

$

Not available

30

Cub Cadet 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

32

Cub Cadet 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 742-0740

20" Mulch Blade
(Superseded to 942-0740)

$23.99

$

In Stock, Qty 5

0

46

Cub Cadet 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1978

Wheel Assembly

$48.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 14578

Height Adj. Ass'y. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

Cub Cadet 710-0654A

Hex Lock Wash. Hd. Screw 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

58

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

63

Cub Cadet 682-7002

Mulching Plug

$

$

Not available

64

Cub Cadet 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0599

Hex Wash. Hd. TT Screw 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 731-1949

Cover: Front End
(Superseded to 931-1949B)

$

$

Not available
