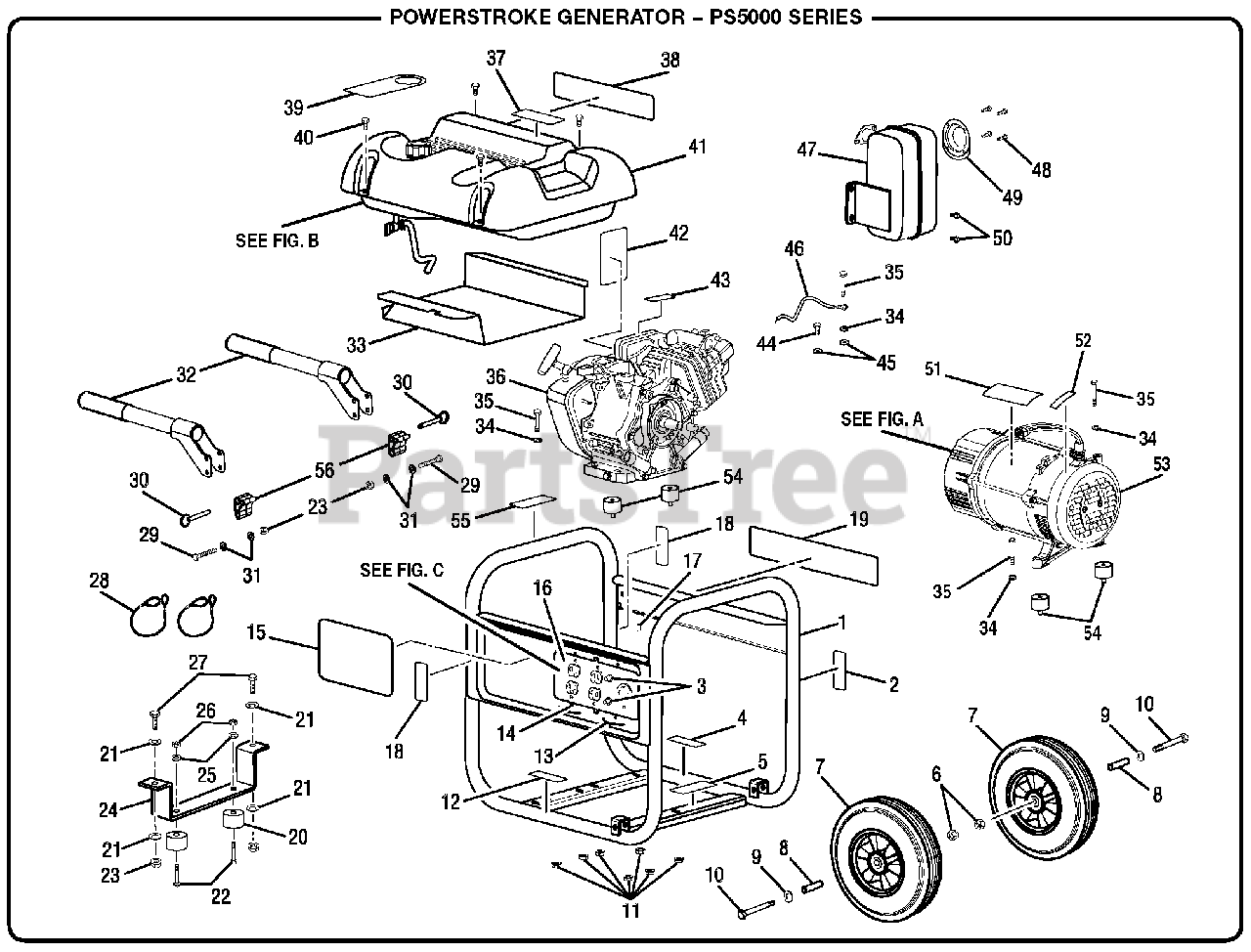

PS 5000 - PowerStroke 5000 Watt Generator General Assembly Parts Diagram

5000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 308581009

Frame Assembly

$

$

Not available

2

Homelite 940680021

Hot Surface Label

$

$

Not available

3

Homelite 780350001

Circuit Breaker (20 amp)

$

$

Not available

4

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 940513008

Ground Warning Label

$

$

Not available

6

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

7

Homelite 310223006

Wheel

$

$

Not available

8

Homelite 678672002

Spacer (.38 ID)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 940708007

Engine Lubricant Label

$

$

Not available

13

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 661305002

Screw (6-19 x 1/2 in.)

$

$

Not available

15

Homelite 940705074

Logo Label

$

$

Not available

16

Homelite 678674001

Control Panel Assembly

Note: (See Fig. C)

$

$

Not available

17

Homelite 570364001

Rubber Cap

$

$

Not available

18

Homelite 940514001

Lock Pin Label

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 940707008

Danger Label

$

$

Not available

20

Homelite 570355001

Rubber Foot

$

$

Not available

21

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in.)

$2.99

$

In Stock, only 4 left!

0

23

Homelite 678457004

Lock Nut (5/16-18)

$

$

Not available

24

Homelite 638709001

Frame Support

$

$

Not available

25

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

26

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 660599001

Bolt (5/16-18 x 1 in.)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 310715001

Lanyard

$

$

Not available

29

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

31

Homelite 638675003

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 310224013

Handle Assembly

$

$

Not available

33

Homelite 638497004

Heat Shield

$

$

Not available

34

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

36

Engine (Subaru OHC)

$

$

Not available

37

Homelite 940515001

CPSC Label

$

$

Not available

38

Homelite 940617031

Quick Start Label

$

$

Not available

39

Homelite 961030005

Caution/Danger Hang Tag

$

$

Not available

40

Homelite 660597003

Screw (#10 x 1 in.)

$

$

Not available

41

Homelite 310711014

Fuel Tank Assembly

Note: (See Fig. B)

$

$

Currently unavailable

42

Homelite 940617032

Start Label

$

$

Not available

43

Homelite 940647033

Choke Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 638704001

Washer (5/16 in.) External Star

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 290404001

Ground Wire Assembly

$

$

Not available

47

Homelite 309322004

Muffler

$

$

Not available

48

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 638147003

Spark Arrester Screen

$

$

Not available

50

Homelite 661557007

Bolt (5/16-24 x 5/8 in.)

$

$

Not available

51

Homelite 940678108

Data Label

$

$

Currently unavailable

52

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 310227016

Generator Head Assembly

Note: (See Fig. A)

$533.99

$

In Stock, only 1 left!

0

54

Homelite 570356001

Isolator

$

$

Not available

55

Homelite 940974007

Fire Danger Label

$

$

Not available

56

Homelite 519789001

Handle Lock Bracket

$

$

Not available

Homelite 900906013

Lubricant (SAE 10W30)
(Superseded to AC99G01)

Note: Not Shown

$

$

Not available

Homelite 987000713

Operator's Manual

Note: Not Shown

$

$

Not available
