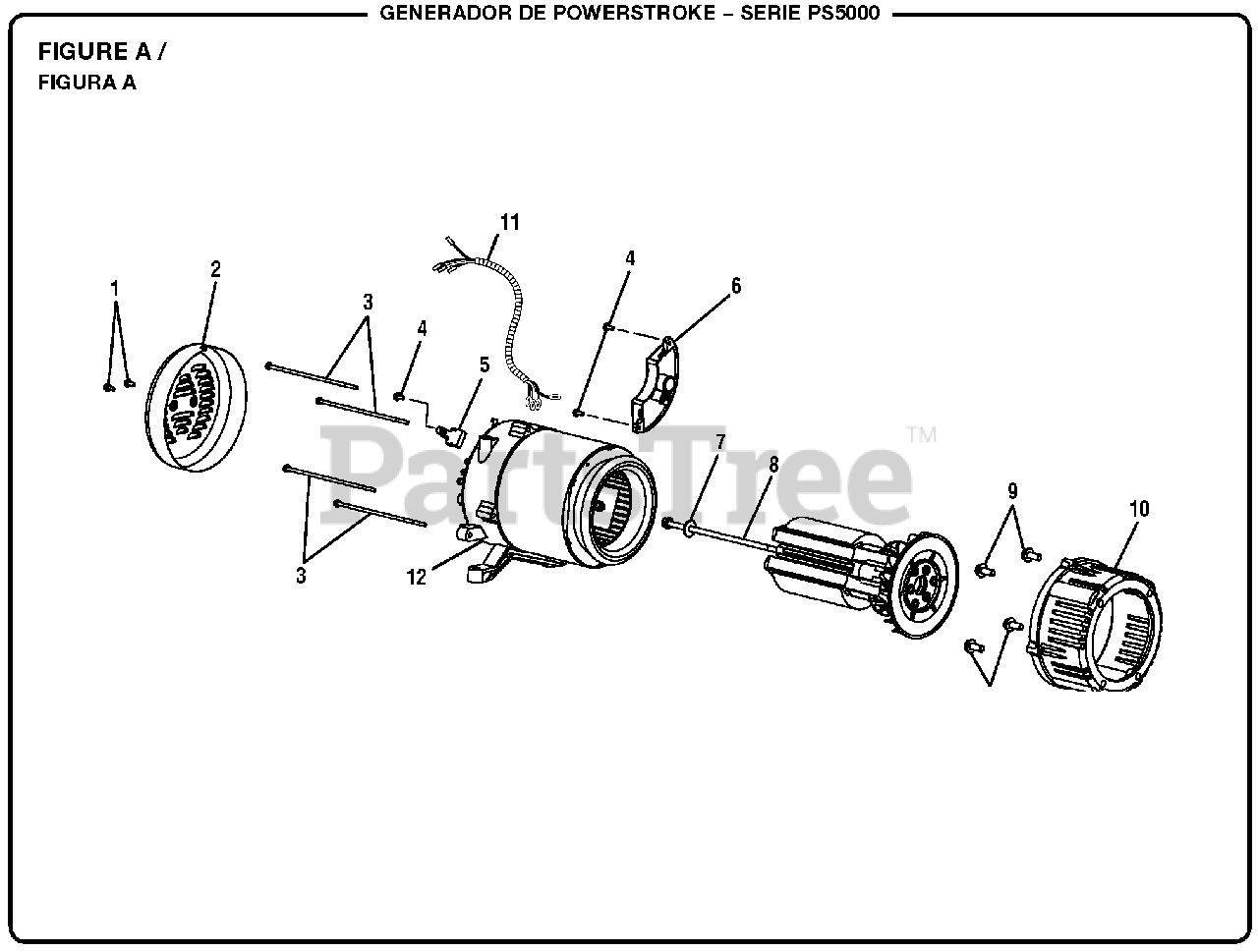

PS 5000 - PowerStroke 5000 Watt Generator Figure A Parts Diagram
5000 Watt Generator
Figure A Parts Diagram
Homelite 661603001
Bolt (AVR Mounting)
$
$
Not available
Homelite 678296002
Brush Cover
$
$
Not available
Homelite 660869006
Bolt (1/4-20 x 6 in., Hex Hd.)
$2.49
$
Usually ships in 3-7 days
Homelite 661603002
Bolt (Brush Assembly)
$
$
Not available
Homelite 308445002
Brush Assembly Kit
$7.99
$
Usually ships in 3-7 days
$
$
Not available
Homelite 638678002
Lock Washer (5/16 in.)
$2.49
$
Usually ships in 3-7 days
Homelite 661557009
Bolt (5/16-24 x 215 mm, Hex Hd.)
$
$
Not available
Homelite 660596002
Bolt (3/8-18 x 1-1/4 in.)
$1.49
$
Usually ships in 3-7 days
Homelite 640331002
Engine Adapter
$63.99
$
Usually ships in 3-7 days
Homelite 290431006
Wiring Harness
$
$
Not available
Homelite 678289008
Bearing Support
$103.99
$
Usually ships in 3-7 days
