PS 344 - Shindaiwa Power Broom (SN: T74314001001 - T74314999999) GEAR CASE Parts Diagram

Power Broom

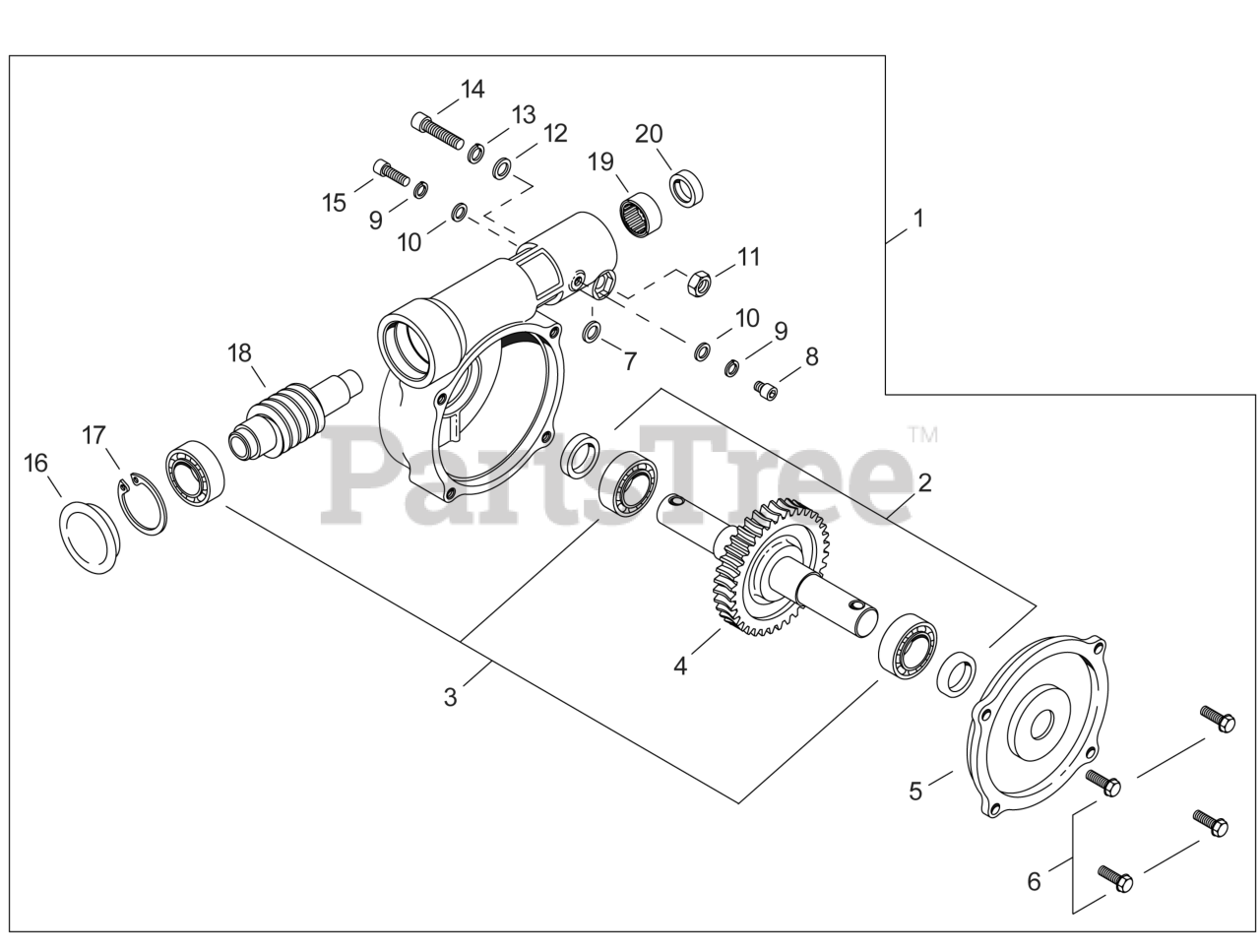

GEAR CASE Parts Diagram

  • Title

1

Echo C051000940

GEAR CASE ASSY - 26MM

Note: Includes ITEMS 2-20

$443.99

$

Usually ships in 2-4 days

0

2

Echo 50523

SEAL, OUTPUT SEG TC15-24-5-20

$50.99

$

Usually ships in 2-4 days

0

3

Echo 50506

BEARING, BALL PEER 6002

$15.99

$

Usually ships in 2-4 days

0

4

Echo 50503

GEAR, DRIVE
(Superseded to Discontinued)

$

$

Not available

5

Echo 50501

COVER, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

6

Echo 50508

SCREW SELF-TAPPING 5×16
(Superseded to Discontinued)

$

$

Not available

7

Echo 50509

WASHER M6

$0.99

$

Usually ships in 2-4 days

0

8

Echo 50520

BOLT 5×8×0.80
(Superseded to Discontinued)

$

$

Not available

9

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 10

0

10

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 50510

NUT M6
(Superseded to Discontinued)

$

$

Not available

12

Echo 50509

WASHER M6

$0.99

$

Usually ships in 2-4 days

0

13

Echo 50511

WASHER, LOCK M6

$0.99

$

Usually ships in 2-4 days

0

14

Echo 50507

SCREW, SOCKET HEAD 6×30

$1.99

$

Usually ships in 2-4 days

0

15

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

16

Echo 50524

PLUG
(Superseded to Discontinued)

$

$

Not available

17

Echo 50512

RING, SNAP 34 MM

$3.99

$

Usually ships in 2-4 days

0

18

Echo 50518

GEAR, WORM
(Superseded to Discontinued)

$

$

Not available

19

Echo 50505

BEARING, NEEDLE SCE 107 1/2 NF R
(Superseded to Discontinued)

$

$

Not available

20

Echo 50522

SEAL, INPUT SCG TC-12-21-6
(Superseded to Discontinued)

$

$

Not available
