PS 26 (59AA602-050) - Cub Cadet Pole Saw Shaft Parts Diagram

Pole Saw

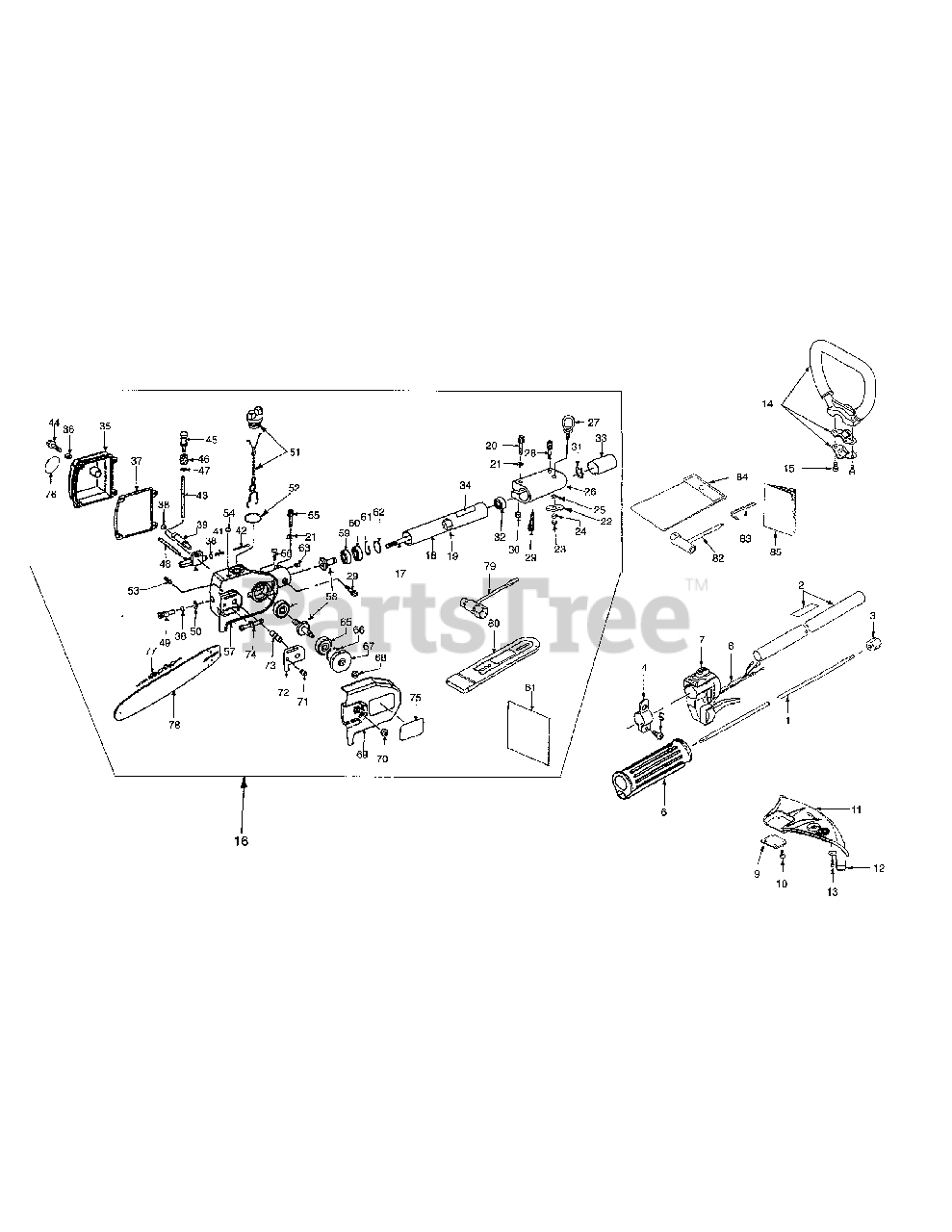

Shaft Parts Diagram

  • Title

1

Cub Cadet IM-720113160

Shaft, Drive

$93.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IM-720124330

Pipe, Complete

$

$

Not available

3

Cub Cadet IM-720133160

Metal

$

$

Not available

4

Cub Cadet IM-720203082

Hanger

$

$

Not available

5

Cub Cadet IM-720973178

Bolt, 1M6x14

$

$

Not available

6

Cub Cadet IM-720623400

Grip

$

$

Not available

7

Cub Cadet IM-125034130

Lever Assembly, Throttle

$100.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IM-125504820

Wire Complete, Throttle

$51.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IM-720473180

Plate

$

$

Not available

10

Cub Cadet IM-010709009

Bolt, M5x20

$

$

Not available

11

Cub Cadet IM-720043511

Deflector Assembly, Plastic

$

$

Not available

12

Cub Cadet IM-720493060

Cutter

$

$

Not available

13

Cub Cadet IM-010709008

Bolt, M5x16

$

$

Not available

14

Cub Cadet IM-720053800

Handle, Loop

$

$

Not available

15

Cub Cadet IM-720973177

Bolt, M6x12

$

$

Not available

16

Cub Cadet IM-720543110

Pole Saw Assy

Note: NLA

$

$

Currently unavailable

17

Cub Cadet IM-720113630

Shaft, Drive

$

$

Not available

18

Cub Cadet IM-720124680

Pipe Compl

$

$

Not available

19

Cub Cadet IM-720133360

Metal

$

$

Not available

20

Cub Cadet IM-010700525

Bolt

$

$

Not available

21

Cub Cadet IM-027100005

Spring Washer

$

$

Not available

22

Cub Cadet IM-720973769

Nut, Knob

Note: NLA

$

$

Currently unavailable

23

Cub Cadet IM-024500006

Cap Nut

Note: NLA

$

$

Currently unavailable

24

Cub Cadet IM-020100006

Nut

$

$

Not available

25

Cub Cadet IM-026100006

Washer

Note: NLA

$

$

Currently unavailable

26

Cub Cadet IM-720383180

Case, Joint

$

$

Not available

27

Cub Cadet IM-720973757

Pin, Lock

$

$

Not available

28

Cub Cadet IM-010100650

Bolt

$

$

Not available

29

Cub Cadet IM-010700510

Bolt

$

$

Not available

30

Cub Cadet IM-020100005

Nut

$

$

Not available

31

Cub Cadet IM-036100010

Snap Ring

$

$

Not available

32

Cub Cadet IM-040126900

Ball Bearing

$

$

Not available

33

Cub Cadet IM-720723330

Collar

$

$

Not available

34

Cub Cadet IM-720953090

Caution Plate

$

$

Not available

35

Cub Cadet IM-720343950

Cover, Oil Tank

$

$

Not available

36

Cub Cadet IM-720723340

Collar

$

$

Not available

37

Cub Cadet IM-720313070

Gasket

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet IM-052100050

O-Ring

$

$

Not available

39

Cub Cadet IM-720973758

Bolt .:

$

$

Not available

40

Cub Cadet IM-140103010

Pump, Lubricating Oil
(Superseded to IM-140103011)

$

$

Not available

41

Cub Cadet IM-720423160

Spring

$

$

Not available

42

Cub Cadet IM-728250010

Piston, Oil Pump

$

$

Not available

43

Cub Cadet IM-068209174

Hose

$

$

Not available

44

Cub Cadet IM-015150512

Screw

$

$

Not available

45

Cub Cadet IM-140503010

Filter Ass'y Oil

$

$

Not available

46

Cub Cadet IM-140513010

Filter, Oil
(Superseded to IM-140513011)

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet IM-026100005

Washer

Note: NLA

$

$

Not available

48

Cub Cadet IM-068209182

Hose

$

$

Not available

49

Cub Cadet IM-728260010

Adjuster, Oil Pump

$

$

Not available

50

Cub Cadet IM-036800006

Snap Ring

$

$

Not available

51

Cub Cadet IM-198433021

Cap, Oil Filler

$

$

Not available

52

Cub Cadet IM-052100150

O-Ring

$

$

Not available

53

Cub Cadet IM-198483120

Connector

$

$

Not available

54

Cub Cadet IM-720973759

Cover

$

$

Not available

55

Cub Cadet IM-010700522

Bolt

$

$

Not available

56

Cub Cadet IM-015100606

Screw

$

$

Not available

57

Cub Cadet IM-720263740

Case, Gear

$

$

Not available

58

Cub Cadet IM-720273890

Gear Ass'y

$

$

Not available

59

Cub Cadet IM-720973159

Ball Bearing

$

$

Not available

60

Cub Cadet IM-720973696

Ball Bearing

$

$

Not available

61

Cub Cadet IM-036100009

Snap Ring

$

$

Not available

62

Cub Cadet IM-036500024

Snap Ring

$

$

Not available

63

Cub Cadet IM-720973760

Washer

$

$

Not available

64

Cub Cadet IM-720973761

Ball Bearing

$

$

Not available

65

Cub Cadet IM-720973762

Ball Bearing

$

$

Not available

66

Cub Cadet IM-036500028

Snap Ring

$

$

Not available

67

Cub Cadet IM-728270010

Sprocket

$

$

Not available

68

Cub Cadet IM-023100006

Nut

$

$

Not available

69

Cub Cadet IM-720343960

Cover

$

$

Not available

70

Cub Cadet IM-023100008

Nut

$

$

Not available

71

Cub Cadet IM-720973763

Dowel Pin

$

$

Not available

72

Cub Cadet IM-720643150

Plate, Guide

$

$

Not available

73

Cub Cadet IM-720783020

Bolt

$

$

Not available

74

Cub Cadet IM-720783030

Bolt

$

$

Not available

75

Cub Cadet IM-720960020

Name Plate

$

$

Not available

76

Cub Cadet IM-720953100

Caution Plate

$

$

Not available

77

Cub Cadet IM-198263010

Chain; 9,52mm (3/8 inch)

$198.99

$

Usually ships in 3-6 days

0

78

Cub Cadet IM-728280010

Bar, Chain; 250mm (10 inch 3/8)

$

$

Not available

79

Cub Cadet IM-720983660

Box, Spanner

$

$

Not available

80

Cub Cadet IM-720913140

Cover, Chain

$

$

Not available

81

Cub Cadet IM-720940020

Manual Operator's

Note: NLA

$

$

Currently unavailable

82

Cub Cadet IM-720983370

Wrench, Spanner Box 19

Note: NLA

$

$

Currently unavailable

83

Cub Cadet IM-090500004

Wrench, Key, 4mm

$

$

Not available

84

Cub Cadet IM-720983420

Bag, Tool

$

$

Not available
