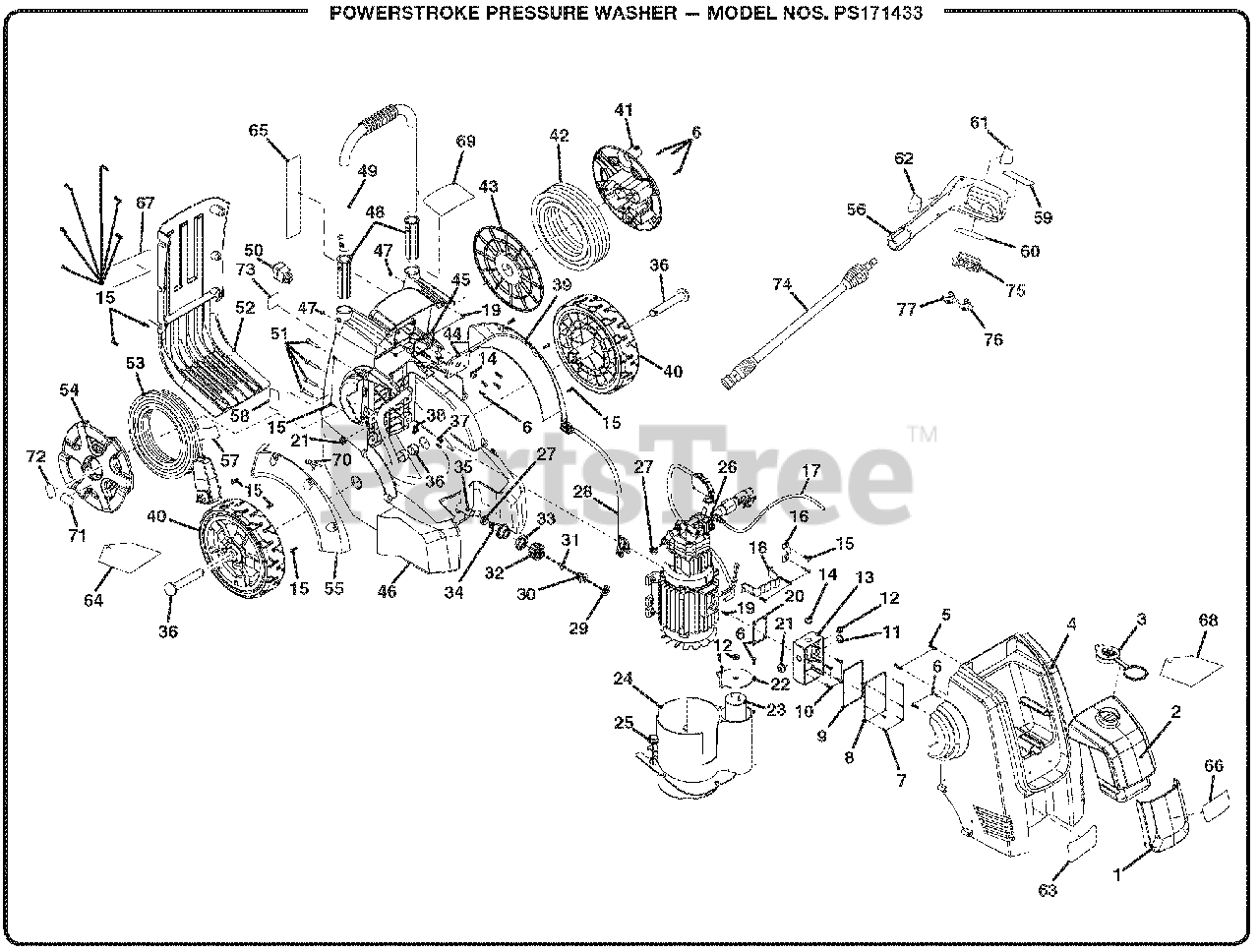

PS 171433 - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 522034001

Tank Front Panel

$

$

Not available

2

Homelite 580875002

Tank

$

$

Not available

3

Homelite 518793005

Tank Cap

$

$

Not available

4

Homelite 522032001

Front Housing

$

$

Not available

5

Homelite 661427003

Screw (M4.2 x 25 mm)

$

$

Not available

6

Homelite 661427001

Screw (M4.2 x 15 mm)

$

$

Not available

7

Homelite 661425003

Screw (M2.9 x 10 mm)

$

$

Not available

8

Homelite 522062001

Junction Box Cover

$

$

Not available

9

Homelite 570445001

Junction Box Gasket

$

$

Not available

10

Homelite 661403009

Screw (M4 x 10 mm)

$

$

Not available

11

Homelite 561383012

Grommet (1)

$

$

Not available

12

Homelite 561383015

Grommet (4)

$

$

Not available

13

Homelite 522063001

Junction Box

$

$

Not available

14

Homelite 561383013

Grommet (3)

$

$

Not available

15

Homelite 661402006

Screw (M5 x 16 mm)

$

$

Not available

16

Homelite 678905002

Clamp

$

$

Not available

17

Homelite 309029006

Detergent Hose

$

$

Not available

18

Homelite 678905001

Pump Clamp

$

$

Not available

19

Homelite 661610005

Screw (M4 x 6 mm)

$

$

Not available

20

Homelite 570740023

Gasket

$

$

Not available

21

Homelite 561383014

Grommet (2)

$

$

Not available

22

Homelite 522061001

Capacitor Box Cover

$

$

Not available

23

Homelite 820270004

Capacitor

$

$

Not available

24

Homelite 522049002

Motor Cover

$

$

Not available

25

Homelite 561383016

Grommet

$

$

Not available

26

Homelite 308833004

Motor Pump Assembly

$

$

Not available

27

Homelite 678409005

Clamp

$

$

Not available

28

Homelite 290606002

Inner Cable

$

$

Not available

29

Homelite 678981001

Water Inlet Filter

$

$

Not available

30

Homelite 310422002

Water Inlet Screw

$

$

Not available

31

Homelite 570768004

O-Ring (13.5 x 1.8G)

$

$

Not available

32

Homelite 310423002

Water Inlet Screw Nut

$

$

Not available

33

Homelite 678903001

Lock Nut

$

$

Not available

34

Homelite 310423001

Hose Connector

$

$

Not available

35

Homelite 308835032

Water Inlet Hose

$

$

Not available

36

Homelite 620599013

Axle

$

$

Not available

37

Homelite 661427004

Screw (M4.2 x 10 mm)

$

$

Not available

38

Homelite 522051002

Cord Clamp

$

$

Not available

39

Homelite 522031001

Right Fender

$

$

Not available

40

Homelite 308451017

Wheel Assembly

$

$

Not available

41

Homelite 570471001

High Pressure Hose Reel Cover

$

$

Not available

42

Homelite 308835031

High Pressure Hose

$

$

Not available

43

Homelite 570470001

High Pressure Hose Reel

$

$

Not available

44

Homelite 519813011

Switch Cover

$

$

Not available

45

Homelite 570740021

Gasket

$

$

Not available

46

Homelite 522033001

Back Housing

$

$

Not available

47

Homelite 678827002

Lock Nut (M4)

$

$

Not available

48

Homelite 518477003

Handle Guide Bushing

$

$

Not available

49

Homelite 308638020

Handle Assembly

$

$

Not available

50

Homelite 760504007

Switch (20A)

$10.99

$

In Stock, only 1 left!

0

51

Homelite 660481016

Screw (M6 x 20 mm)

$

$

Not available

52

Homelite 522036001

Back Shroud

$

$

Not available

53

Homelite 290426007

Power Cord

$

$

Not available

54

Homelite 522035001

Power Cord Reel Cover

$

$

Not available

55

Homelite 522030001

Left Fender

$

$

Not available

56

Homelite 308238002

Trigger Handle Assembly

$

$

Not available

57

Homelite 940869003

Danger Cord Wrap Label

$

$

Not available

58

Homelite 940678155

Data Label

$

$

Not available

59

Homelite 940654138

Trigger Handle Warning Label

$

$

Not available

60

Homelite 940779008

Trigger Handle Rating Label

$

$

Not available

61

Homelite 940324019

Trigger Handle Warning Label (French/Spanish)

$

$

Not available

62

Homelite 940870003

Trigger Handle Logo Label

$

$

Not available

63

Homelite 940779039

Performance Label

$

$

Not available

64

Homelite 940971061

Power Cord Reel Hang Tag

$

$

Not available

65

Homelite 940734075

Starting Label

$

$

Not available

66

Homelite 940705105

Front Logo Label

$

$

Not available

67

Homelite 940707074

Danger Label

$

$

Not available

68

Homelite 940971062

Detergent Tank Hang Tag

$

$

Not available

69

Homelite 940705106

Top Logo Label

$

$

Not available

70

Homelite 678522012

Pin

$

$

Not available

71

Homelite 940758014

Power Cord Reel Unlock Label

$

$

Not available

72

Homelite 940758015

Power Cord Reel Lock Label

$

$

Not available

73

Homelite 940734079

On/Off Switch Label

$

$

Not available

74

Homelite 308494036

Spray Wand

$

$

Not available

75

Homelite 570727009

Nozzle Holder

$

$

Not available

76

Homelite 308246004

25deg Nozzle

$

$

Not available

77

Homelite 308706010

Soap Nozzle

$

$

Not available

Homelite 940604004

CA Prop. 65 Label

Note: NOT SHOWN

$

$

Not available

Homelite 940869003

Danger Hang Tag

Note: NOT SHOWN

$

$

Not available

Homelite 940617076

Support Manual Label

Note: NOT SHOWN

$

$

Not available

Homelite 940921001

Support Label

Note: NOT SHOWN

$

$

Not available

Homelite 988000013

Operator's Manual

Note: NOT SHOWN

$

$

Not available
