PS 141913 (090079352) - PowerStroke Pressure Washer, Rev 01 (2017-12) Figure B Parts Diagram

Pressure Washer, Rev 01

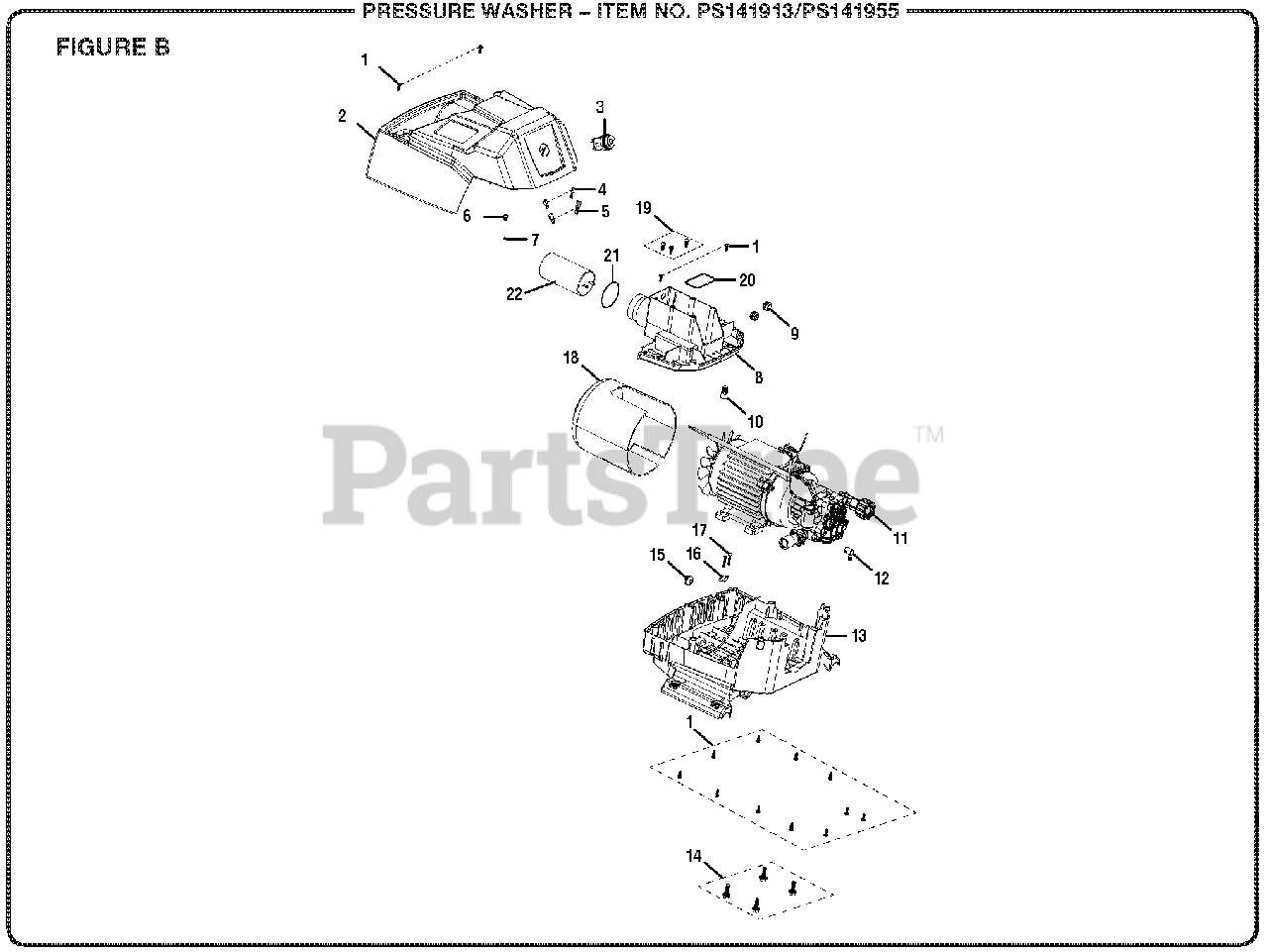

Figure B Parts Diagram

  • Title

1

Homelite 661403016

Screw (M4.2 x 15 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 522032024

Top Motor Housing

$

$

Not available

3

Homelite 760504018

Switch

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 630236004

Tinned Brass (Terminal)

$

$

Not available

5

Homelite 527784005

Plastic Sleeve (Terminal)

$

$

Not available

6

Homelite 660481028

Screw (M4 x 6 mm, Pan Hd.)

$

$

Not available

7

Homelite 638454005

Toothed Lock Washer (M4)

$

$

Not available

8

Homelite 522038016

Pump Cover

$

$

Not available

9

Homelite 561383028

Grommet

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 870601001

Wire Nut

$

$

Not available

11

Motor and Pump Assembly

Note: OWT INDUSTRIES, INC. will not provide a complete motor/pump as a replacement part. Contact our service department for assistance.

$

$

Not available

12

Homelite 529062002

Soap Hose Inlet Adapter

$

$

Not available

13

Homelite 522038015

Lower Housing

$

$

Not available

14

Homelite 661505038

Bolt (M6 x 20 mm)

$

$

Not available

15

Homelite 561383025

Grommet

$

$

Not available

16

Homelite 522051003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 661610008

Screw (M3.5 x 20 mm)

$

$

Not available

18

Homelite 527405002

Nozzle (15deg)

$

$

Not available

19

Homelite 660481027

Bolt (M4 x 12 mm, Pan Hd.)

$

$

Not available

20

Homelite 570449004

Rubber Ring

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 570742116

O-Ring

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 820270006

Capacitor

$19.99

$

Usually ships in 3-7 days

0
