PS 10700 - PowerStroke 7000 Watt Generator Figure C Parts Diagram

7000 Watt Generator

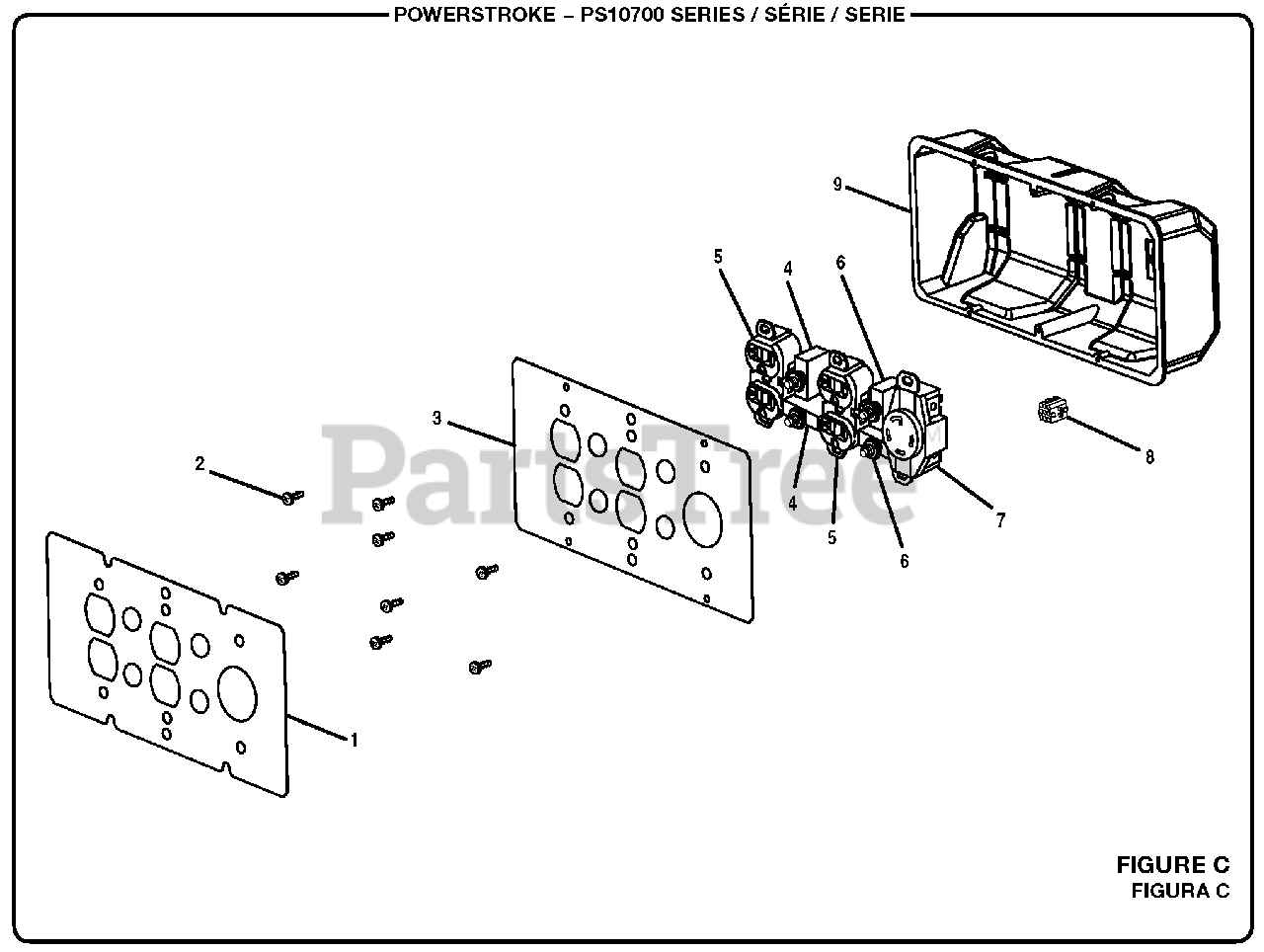

Figure C Parts Diagram

  • Title
1

Homelite 940780002

Label (Power Outlet)

$6.49

$

Usually ships in 3-7 days

0

2

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

3

Homelite 638700001

Front Panel

$

$

Not available

4

Homelite 780350001

Circuit Breaker 20 Amp, 125 Volt)

$

$

Not available

5

Homelite 290400001

120 Volt Duplex Receptacle

$

$

Not available

6

Homelite 780351001

Circuit Breaker (30 Amp)

$

$

Not available

7

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$25.99

$

In Stock, only 1 left!

0

8

Homelite 519708001

Connector (9 Pin)

$

$

Not available

9

Homelite 519707001

Control Box (Back Panel)

$

$

Not available
