Prolite - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

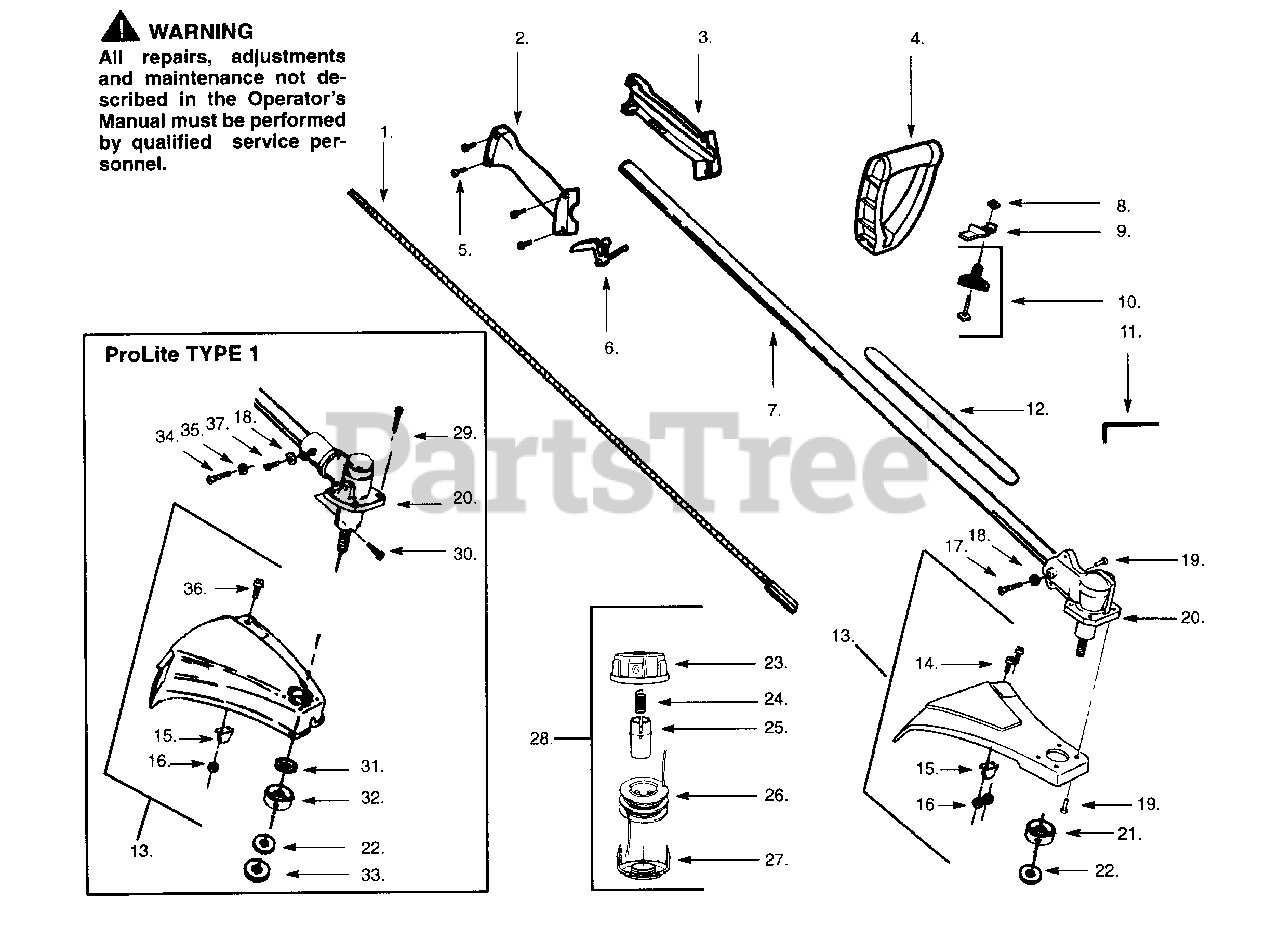

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530095151

Drive Shaft-52"

$12.99

$

In Stock, only 1 left!

0

2

Poulan 530036514

Throttle Hsg. (Right)

$

$

Not available

3

Poulan 530036515

Throttle Hsg. (Left)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530014222

Assist Handle,Cushioned

$

$

Not available

5

Poulan 530015966

Screw-Throttle Hsg.

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 530036556

Trigger Lever

$3.99

$

In Stock, only 1 left!

0

7

Poulan 530095345

Drive Shaft Hsg.

$

$

Not available

8

Poulan 530015610

Nut-Handle

$0.99

$

Usually ships in 3-10 days

0

9

Poulan 530094742

Clamp-Handle

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530069252

T-Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

11

Poulan 530031159

Hex Wrench 5/32

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530047899

Shaft Warning Decal

$

$

Not available

13

Poulan 530069256

MODEL PROLITE Type 1 (Incl. 15, 16 & 36)

$

$

Not available

13

Poulan 530069681

MODELS PROLITE Type 2 & XT45 (Inc. 14-16,19)

$

$

Not available

14

Poulan 530015636

Screw-Line Limiter

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

16

Poulan 534235901

Locknut-Line Limiter
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530016140

Screw-Gear Box

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530001642

Lockwasher-Gear Box

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530016141

Screw-Gear Box/Shield

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530094568

MODEL PROLITE Type 1
(Superseded to 530071781)

$

$

Not available

20

Poulan 530047291

MODELS PROLITE Type 2 & XT45

$

$

Not available

21

Poulan 530095351

Dust Cup

$9.99

$

Usually ships in 3-10 days

0

22

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 530047378

Hub Ass'y

$21.99

$

Usually ships in 3-10 days

0

24

Poulan 530094830

Spring

$3.99

$

In Stock, Qty 20+

0

25

Poulan 530094827

Release Button

$

$

Not available

26

Poulan 952701665

Spool w/ Line
(Superseded to 530095255)

$

$

Not available

27

Poulan 530094828

Cover

$

$

Not available

28

Poulan 952701667

Cutting Head Ass'y(Incl. 23-27)
(Superseded to 530047298)

$34.99

$

Usually ships in 3-10 days

0

29

Poulan 530016107

Screw-Gear Box/Shield

$3.99

$

In Stock, Qty 11

0

30

Poulan 530094616

Screw-Grease Refill

$

$

Not available

31

Poulan 530094640

Seal

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530094639

Dust Cup

$

$

Not available

33

Poulan 530094189

Washer

$6.99

$

In Stock, only 1 left!

0

34

Poulan 530094612

Screw-Pinch Clamp

$0.99

$

Usually ships in 3-10 days

0

35

Poulan 530015328

Lockwasher-Pinch Clamp

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530015037

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530094612

Screw-Locating

$0.99

$

Usually ships in 3-10 days

0

Poulan 530083548

Operator Manual, MODEL PROLITE Type 1

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0

Poulan 530084060

Operator Manual, MODELS PROLITE Type 3 & XT45

Note: Not Shown.

$

$

Not available
