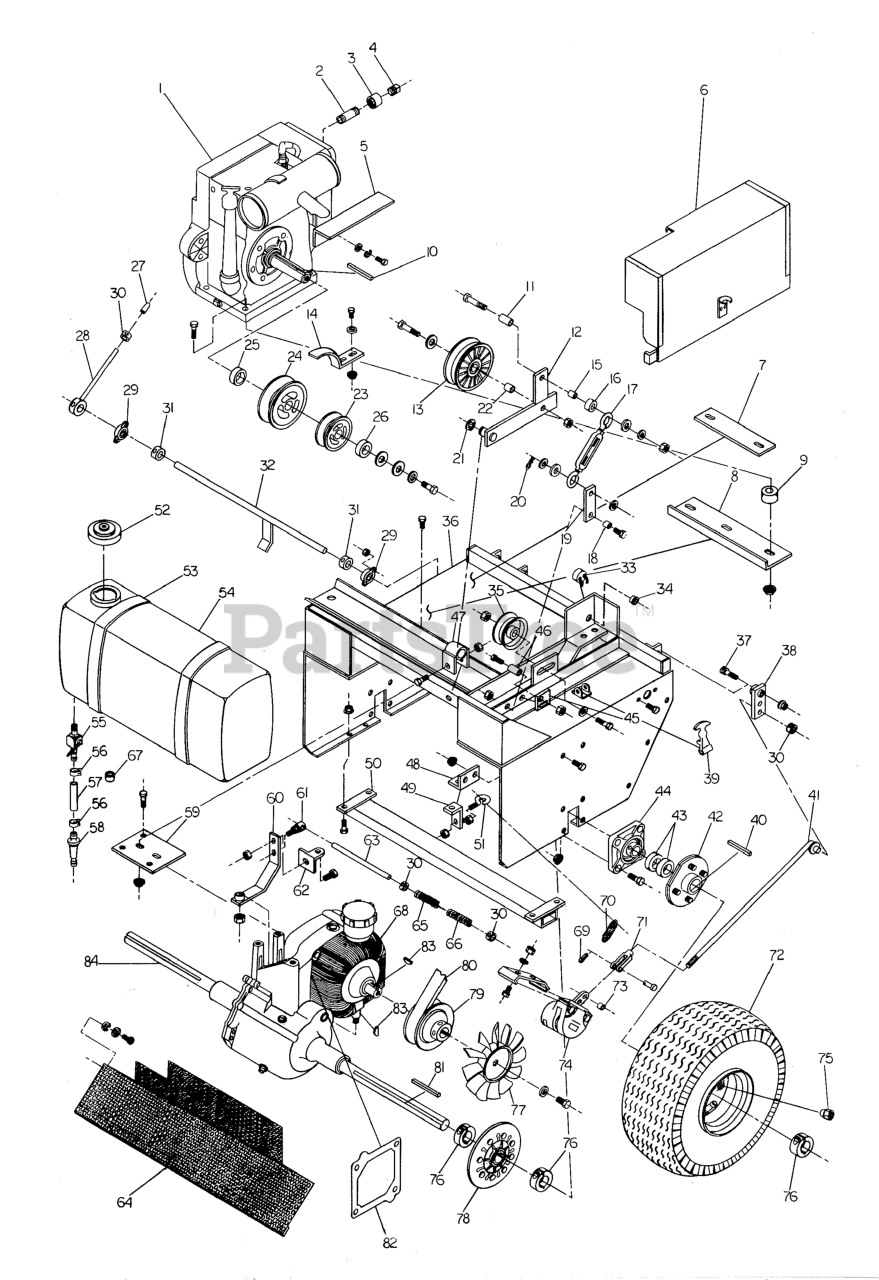

ProCut Walker (PCW6114K) - Ferris ProCut Walker Series 61" Walk-Behind Mower, Kohler Engine & PTO Group - Kohler Parts Diagram

ProCut Walker Series 61" Walk-Behind Mower, Kohler

Engine & PTO Group - Kohler Parts Diagram

  • Title
1

ENGINE, Kohler (Model M12T)

$

$

Not available

1

ENGINE, Kohler (Model M14S)

$

$

Not available

1

ENGINE, Kohler Electric (Model M14ST)

$

$

Not available

2

Ferris 5020984

Oil Drain Tube

$

$

Currently unavailable

3

Ferris 5020985

COUPLER, 1/2" NPT

$

$

Not available

4

Ferris 5020986

PLUG, 1/2" NPT
(Superseded to 5020986FS)

$32.99

$

Usually ships in 2-12 days

0

5

Ferris 5041946B

Side Guard Mount

$

$

Currently unavailable

6

Ferris 5030352B

Side Guard Weldment

$

$

Currently unavailable

7

Ferris 5041943B

Motor Deck Support Small

$

$

Currently unavailable

8

Ferris 5041944B

Motor Deck Support Long

$

$

Currently unavailable

9

Ferris 5041878

SPACER, .39 x 1.75 x .88

$

$

Currently unavailable

10

Ferris 5050407X6

KEY, 1/4 SQ. X 2-5/8

$

$

Currently unavailable

11

Ferris 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

In Stock, only 1 left!

0

12

Ferris 5041996

Bell Crank Weldment

$

$

Currently unavailable

13

Ferris 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

14

Ferris 5041945

Engine Belt Guild

$

$

Currently unavailable

15

Ferris 5041932

SPACER, .38 x .50 x .88

$

$

Currently unavailable

16

Ferris 5041935

Delron Spacer

$

$

Currently unavailable

17

Ferris 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

18

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5041955

Linkage Arm

$

$

Currently unavailable

20

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5020923

SPACER, Shoulder
(Superseded to 5020923YP)

$5.99

$

In Stock, only 1 left!

0

23

$

$

Currently unavailable

24

$61.99

$

Usually ships in 2-12 days

0

25

Ferris 5041879

SPACER, 1.14 x 1.50 x .50

$

$

Currently unavailable

26

Ferris 5041880

SPACER, 1.14 x 1.50 x .34

$

$

Currently unavailable

27

Ferris 5021007

Plastic Boot

$

$

Currently unavailable

28

Ferris 5041976

Neutral Lever Handle Weld

$

$

Currently unavailable

29

Ferris 5020014

5/8" Triangle Bearing

$

$

Not available

30

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

31

Ferris 5010477

COLLAR, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

32

Ferris 5041978B

Neutral Lever Weldment

$

$

Currently unavailable

33

Ferris 5020998

Interlock Module

$

$

Currently unavailable

34

Ferris 5020893

Snap Bushing

$

$

Currently unavailable

35

Ferris 5010318

Idler Pulley

$

$

Currently unavailable

36

Ferris 5030349

Engine Deck Assembly

$

$

Currently unavailable

37

Ferris 5025219

SHOULDER BOLT, 3/8 x 1

$

$

Currently unavailable

38

Ferris 5041980

Brake Linkage Weldment

$

$

Currently unavailable

39

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

In Stock, only 2 left!

0

40

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

41

Ferris 5041984

Lower Brake Linkage Weld

$

$

Currently unavailable

42

Ferris 5020603

4-Bolt Hub
(Superseded to 5030480)

$107.99

$

Usually ships in 2-12 days

0

43

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 3 left!

0

44

Ferris 5020975

4-Bolt Flange Bearing

$

$

Currently unavailable

45

Ferris 5041954B

Bell Crank Stop

$

$

Currently unavailable

46

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

47

Ferris 5041993

Bell Crank Mount Weldment

$

$

Currently unavailable

48

Ferris 5041951

Brake Mount

$

$

Currently unavailable

49

Ferris 5041952

Brake Spring Bracket

$

$

Currently unavailable

50

Ferris 5041937B

Bottom Deck Support

$

$

Currently unavailable

51

Ferris 5010012

EYE BOLT

$

$

Currently unavailable

52

Ferris 5020797

Gas Cap
(Superseded to 5020797FS)

$60.99

$

In Stock, only 1 left!

0

53

Ferris 5041957B

Gas Tank Strap

$13.99

$

Usually ships in 2-12 days

0

54

Ferris 5020982

Gas Tank
(Superseded to 5061616)

$674.99

$

Usually ships in 2-12 days

0

55

Ferris 5020983

Fuel Shut-Off Valve

$36.99

$

Usually ships in 2-12 days

0

56

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

57

1/4" Gas Line

$

$

Not available

58

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

59

Ferris 5041953B

Differential Plate

$

$

Currently unavailable

60

Ferris 5041975B

Direction Lever

$

$

Currently unavailable

61

Ferris 5010583

Rod End Connector

$

$

Currently unavailable

62

Ferris 5041950

Cable Connecting Bracket

$

$

Currently unavailable

63

Ferris 5050504X13

5/16" Rod

$

$

Currently unavailable

64

Ferris 5042007

Expanded Metal Guard Weld

$

$

Currently unavailable

65

Ferris 5020637

SPRING, Compression
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

66

Ferris 5021004

SPRING, Compression

$5.99

$

Usually ships in 2-12 days

0

67

Ferris 5041958

Differential Mount Spacer

$

$

Currently unavailable

68

Ferris 5020606

Hydrostatic Transmission

$

$

Currently unavailable

69

Ferris 5025211

HAIRPIN CLIP
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

70

Ferris 5020638

Draw Bar Spring

$

$

Currently unavailable

71

Ferris 5020980

CLEVIS, 5/16-24, Steel
(Superseded to 5020980FS)

$23.99

$

Usually ships in 2-12 days

0

72

Ferris 5020789

Drive Tire Assembly (Tire & Rim)

$

$

Currently unavailable

72

Ferris 5020767

Tire Assembly 61" Deck

$

$

Currently unavailable

73

Ferris 5042036

SPACER, .25 x .37 x .25
(Superseded to 5021878YP)

$3.99

$

Usually ships in 2-12 days

0

74

Ferris 5020968

BRAKE CALIPER ASSEMBLY, LH, Complete

$222.99

$

Usually ships in 2-12 days

0

74

Ferris 5020969

BRAKE CALIPER ASSEMBLY, RH, Complete

$242.99

$

Usually ships in 2-12 days

0

75

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

76

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

78

Ferris 5020967

Brake Disc

$

$

Currently unavailable

79

$

$

Currently unavailable

80

$23.99

$

Usually ships in 2-12 days

0

81

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

82

$

$

Currently unavailable

83

Ferris 5020149

KEY, #3 Woodruff

$2.49

$

Usually ships in 2-12 days

0

84

Ferris 5042027

Differential 48" Deck

$

$

Currently unavailable

84

Ferris 5021037

Differential 61" Deck

$

$

Currently unavailable
