ProCut S (5902106) - Ferris Procut S Front Mount Mower, 27hp Briggs & Stratton Steering & Suspension Group Parts Diagram

Procut S Front Mount Mower, 27hp Briggs & Stratton

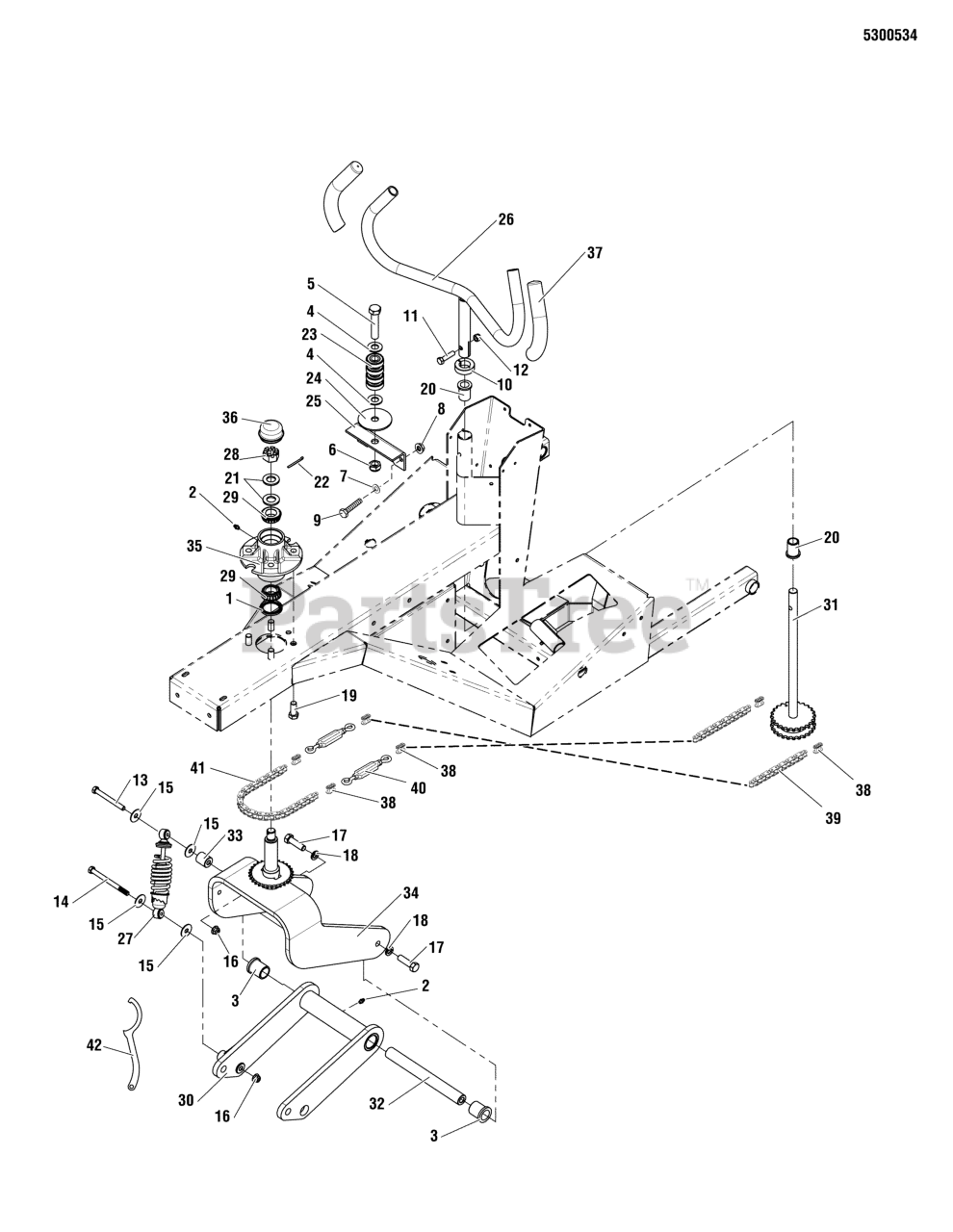

Steering & Suspension Group Parts Diagram

  • Title

1

Ferris 5100838

SEAL, 1.983" X 1.500 X .188
(Superseded to 5100838FS)

$16.99

$

Usually ships in 2-12 days

0

2

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

4

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

5

Ferris 5025019X24

BOLT, 5/8-11 x 3" GD5 CZ

$

$

Currently unavailable

6

Ferris 5025282

NUT, 5/8-11 HEX JAM NYLON LOCK
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

10

Ferris 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

11

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

14

Ferris 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

18

Ferris 5025173

WASHER, 1/2" SPLIT LOCK
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

20

Ferris 5020823

BUSHING, FLANGE, 3/4 X 1
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

21

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

22

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

23

Ferris 5021882

BEARING, ROLLER, 5/8" ID
(Superseded to 5021882FS)

$11.99

$

Usually ships in 2-12 days

0

24

Ferris 5043652

WASHER, .64 X 3.00 X .14
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

25

Ferris 5044627B

MOUNT, CHAIN ROLLER
(Superseded to 5044627BFS)

$15.99

$

Usually ships in 2-12 days

0

26

Ferris 5402373B

WELD, STEERING HANDLE - RED
(Superseded to 5402373BFS)

$148.99

$

Usually ships in 2-12 days

0

27

Ferris 5023383

SHOCK, SUSPENSION
(Superseded to 5023383FS)

$195.99

$

Usually ships in 2-12 days

0

28

Ferris 5025104

NUT, 3/4-16 HEX SLOTTED
(Superseded to 5025104FS)

$5.49

$

In Stock, only 2 left!

0

29

Ferris 5100839

BEARING, TAPER ROLLER, 1.1417
(Superseded to 5100839FS)

$22.99

$

Usually ships in 2-12 days

0

30

Ferris 5401698B

WELD, SWING ARM - RED
(Superseded to 5401698BFS)

$278.99

$

Usually ships in 2-12 days

0

31

Ferris 5042087

STEERING SHAFT WELDMENT
(Superseded to 5042087SM)

$174.99

$

Usually ships in 2-12 days

0

32

Ferris 5100564

SPACER, 1.00 X 9.32 - TAPPED
(Superseded to 5100564FS)

$33.99

$

Usually ships in 2-12 days

0

33

Ferris 5100563

SPACER, .39 X 1.00 X 1.13
(Superseded to 5100563FS)

$10.99

$

Usually ships in 2-12 days

0

34

Ferris 5401696B

WELD, MOUNT, STEERING TIRE - RED
(Superseded to 5401696BFS)

$604.99

$

Usually ships in 2-12 days

0

35

Ferris 5100840

HUB ASSEMBLY
(Superseded to 5100840FS)

$111.99

$

Usually ships in 2-12 days

0

36

Ferris 5021073

CAP, DUST
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

37

Ferris 5020837

GRIP, FOAM 1" ID X 7.75" LONG
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

38

Ferris 5010674

CHAIN,LINK CONNECTOR #40
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5010673X33

#40 CHAIN 33 LINKS
(Superseded to 5010673X33FS)

$9.49

$

In Stock, only 2 left!

0

40

Ferris 5042090

ASSEMBLY, TURNBUCKLE
(Superseded to 5042090SM)

$23.99

$

Usually ships in 2-12 days

0

41

Ferris 5010673X43

#40 CHAIN, 43 LINK
(Superseded to 5010673X43FS)

$10.99

$

In Stock, only 2 left!

0

42

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0
