ProCut S (5900933) - Ferris Procut S Front Mount Mower, 26hp Kawasaki Operator Presence Group Parts Diagram

Procut S Front Mount Mower, 26hp Kawasaki

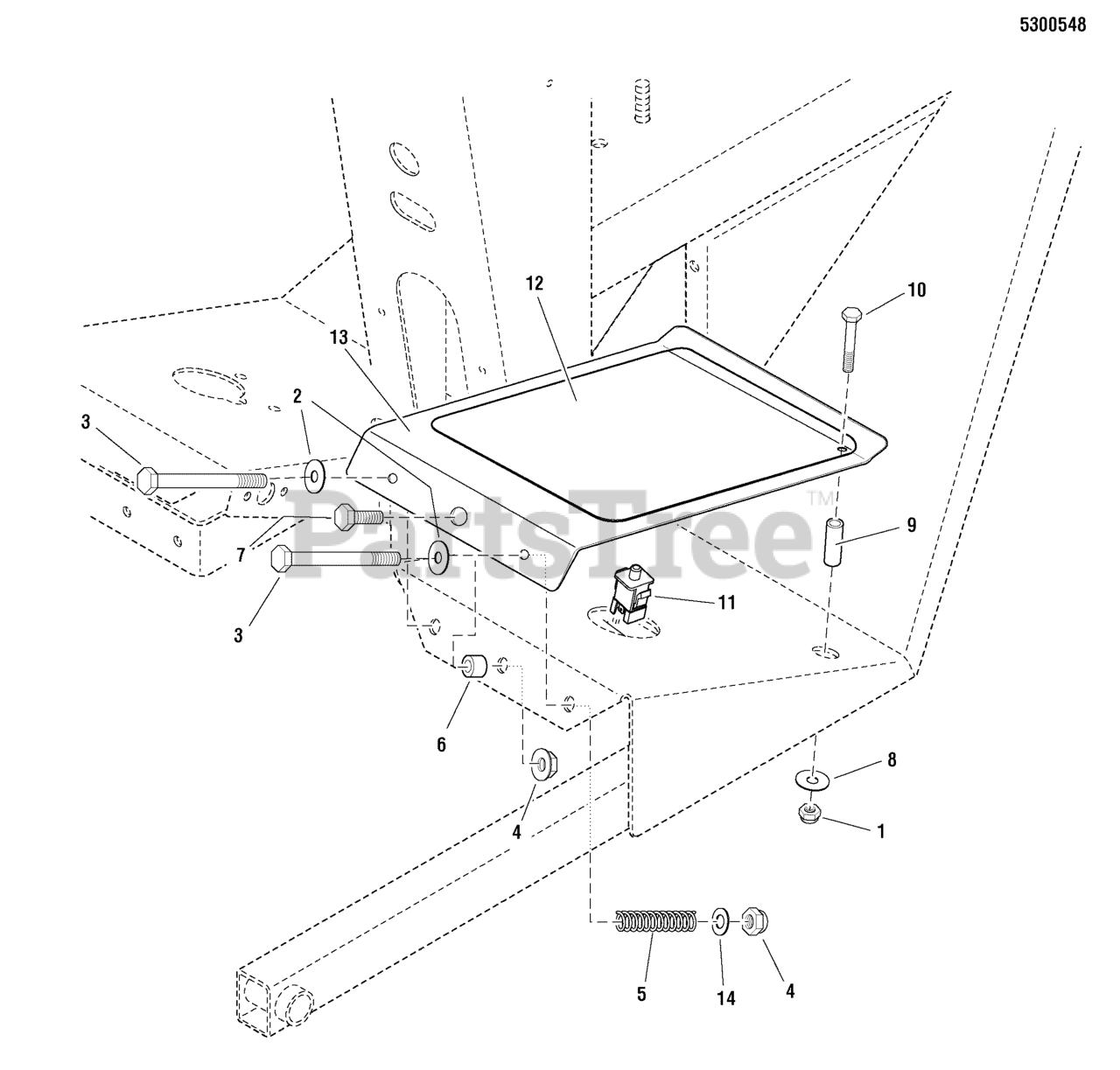

Operator Presence Group Parts Diagram

  • Title

1

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5021102

SPRING-COMP, .594ID X 2.68LG X .080WR
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5020880

INSERT, BEARING, 17MM X 12MM L
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

8

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5043296

BUSHING, BRASS, 3/8 X 5/8 X1.5
(Superseded to 5043296FS)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

12

Ferris 5101009

SAFETY WALK, 13.00 X 9.00, LH - TWR
(Superseded to 5101009FS)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5401833B

PLATE, OPERATOR PRESENCE - RED
(Superseded to 5401833BFS)

$49.99

$

Usually ships in 2-12 days

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
