ProCut S (5900631) - Ferris Procut S Front Mount Mower, 25hp Kohler Instrument Panel Group Parts Diagram

Procut S Front Mount Mower, 25hp Kohler

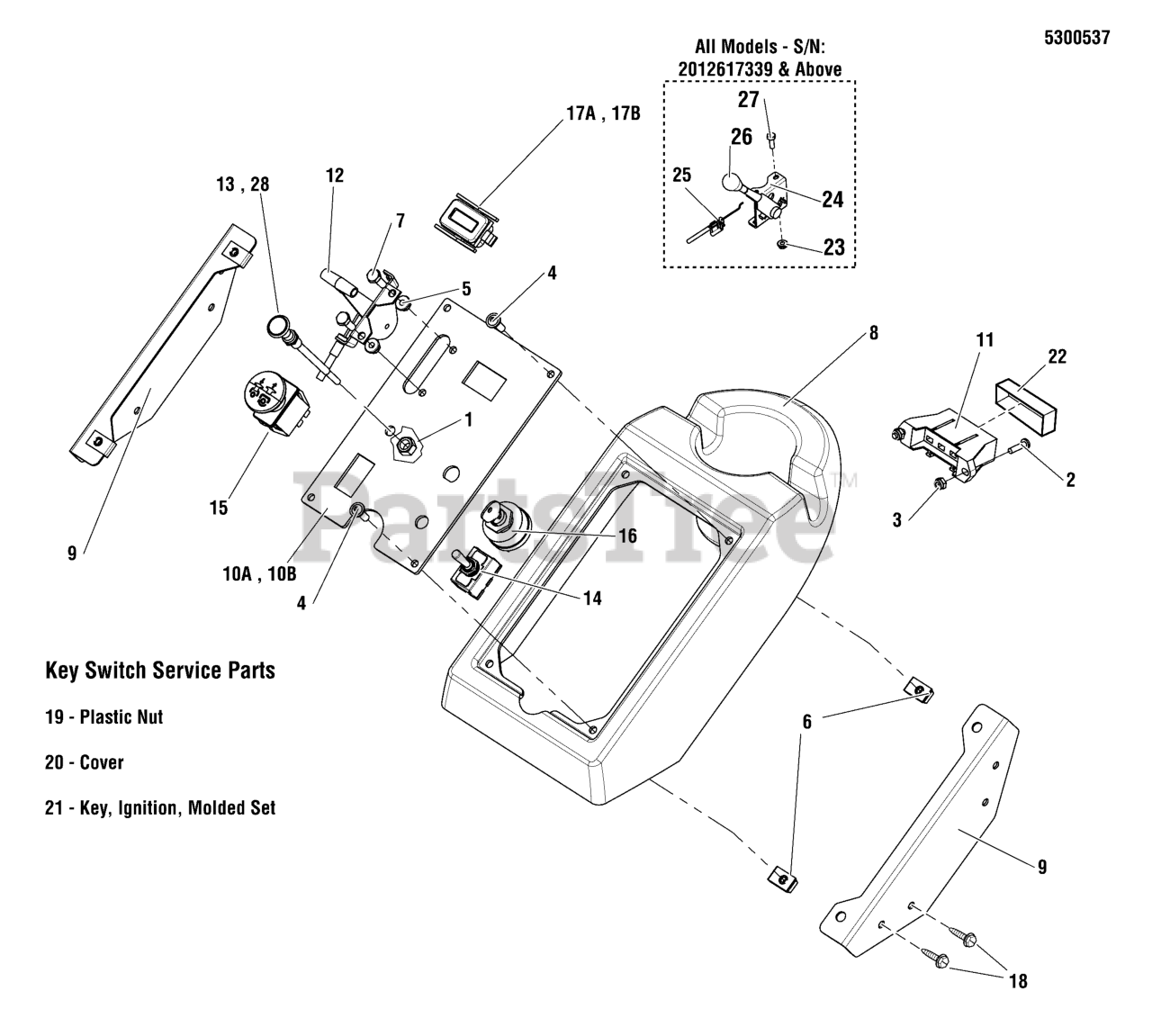

Instrument Panel Group Parts Diagram

  • Title

1

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5100849

BEZEL, 3 WHEEL RIDER
(Superseded to 5100849FS)

$127.99

$

Usually ships in 2-12 days

0

9

Ferris 5402389B

PLATE, MOUNT, DASH - RED
(Superseded to 5402389BFS)

$13.99

$

Usually ships in 2-12 days

0

10a

Ferris 5403385B

PLATE, DASH, TWR - RED
(Superseded to 5403385BFS)

Note: (S/N: 2012617339 & Above)

$23.99

$

Usually ships in 2-12 days

0

10b

Ferris 5402390B

PLATE, DASH, TWR - RED

Note: (S/N: 2012617338 & Below)

$16.99

$

Usually ships in 2-12 days

0

11

FUSE, BLOCK (SEE ELECTRICAL GROUPS)

$

$

Not available

12

Ferris 5021662

CABLE, THROTTLE CONTROL, 54"

$80.99

$

Usually ships in 2-12 days

0

13

Ferris 5021663

CABLE, Choke Control, 57"
(Superseded to 5021663SM)

Note: (Kawi Models - S/N: 2014605409 & Below; All Other Models - S/N: All)

$58.99

$

Usually ships in 2-12 days

0

14

Ferris 5021734

Switch, Electric Actuator
(Superseded to 5021734SM)

$

$

Not available

15

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

16

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref. Nos 19 - 21)

$33.99

$

In Stock, Qty 7

0

17a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(*See Footnote)

$

$

Not available

17b

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

18

Ferris 5025279X6

BOLT, Self-Tapping, 1/4-20 x 3/4

$

$

Not available

19

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (Not Shown)

$3.49

$

In Stock, only 1 left!

0

20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (Not Shown)

$4.49

$

In Stock, only 1 left!

0

21

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (Not Shown)

$

$

Currently unavailable

22

Ferris 5022805

COVER, VINYL, FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

25

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

$27.99

$

In Stock, only 1 left!

0

26

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

27

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

Note: (Kawi Models - S/N: 2014605410 & Above)

$52.99

$

In Stock, Qty 5

0
