ProCut 30 (5901034) - Ferris ProCut 30 Front Mount Mower, 22hp Kohler (SN: 1023 & Above) Instrument & Control Panel Group Parts Diagram

ProCut 30 Front Mount Mower, 22hp Kohler

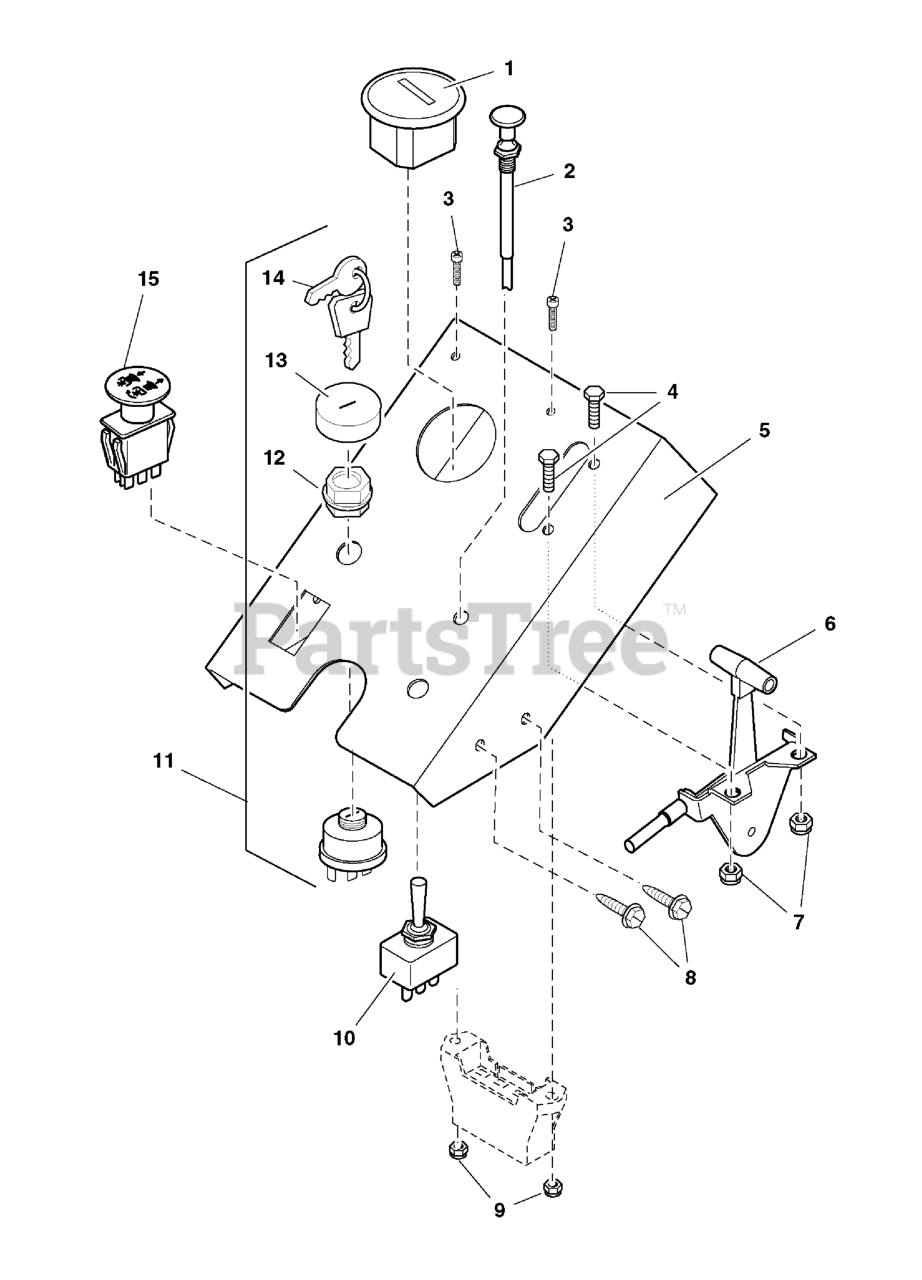

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

2

Ferris 5021663

CABLE, Choke Control, 57"
(Superseded to 5021663SM)

$58.99

$

Usually ships in 2-12 days

0

3

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5045193B

DASH PANEL

$

$

Currently unavailable

6

Ferris 5021662

CABLE, Throttle, 54"

$80.99

$

Usually ships in 2-12 days

0

7

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

8

Ferris 5025279X6

BOLT, Self-Tapping, 1/4-20 x 3/4

$

$

Not available

9

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5021734

SWITCH, Actuator
(Superseded to 5021734SM)

$

$

Not available

11

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 12 - 14)

$33.99

$

In Stock, only 3 left!

0

12

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

13

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

15

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0
