ProCut 30 (5901034) - Ferris ProCut 30 Front Mount Mower, 22hp Kohler (SN: 0855 - 1022) Hydraulic Group Parts Diagram

ProCut 30 Front Mount Mower, 22hp Kohler

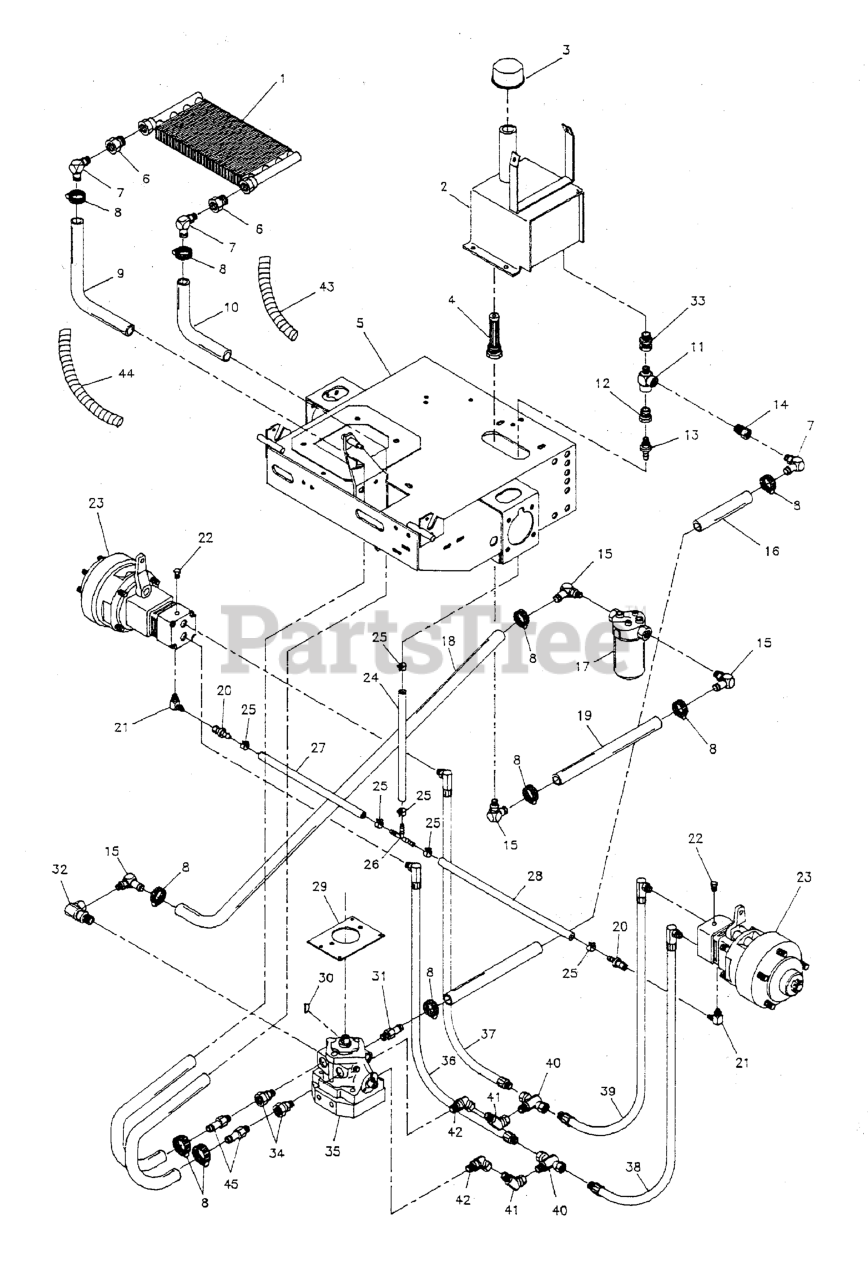

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5021368

OIL COOLER

$

$

Currently unavailable

2

Ferris 5030774B

HYDRO TANK WELDMENT

$284.99

$

Usually ships in 2-12 days

0

3

Ferris 5021871

BREATHER
(Superseded to 5021871SM)

$

$

Not available

4

Ferris 5021082

STRAINER

$68.99

$

Usually ships in 2-12 days

0

5

Ferris 5030786

ENGINE DECK

$

$

Currently unavailable

6

Ferris 5021388

FITTING, Reducer
(Superseded to 5021388FS)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5021370

FITTING, NPT - Hose, 90 Deg.
(Superseded to 5021370FS)

$23.99

$

Usually ships in 2-12 days

0

8

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5050857X39

HOSE, 39" Long
(Superseded to 5050857X39FS)

$20.99

$

Usually ships in 2-12 days

0

10

Ferris 5050857X29

HOSE, 29"
(Superseded to 5050857X29FS)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5021376

FITTING, Tee
(Superseded to 5021376FS)

$37.99

$

Usually ships in 2-12 days

0

12

Ferris 5021617

FITTING, Reducer
(Superseded to 5021617FS)

$8.49

$

Usually ships in 2-12 days

0

13

Ferris 5021616

FITTING, Male Adapter

$9.49

$

Usually ships in 2-12 days

0

14

Ferris 5021378

FITTING, Reducer
(Superseded to 5021378FS)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5021233

FITTING, 1/2" NPT, 90 Deg.
(Superseded to 5021233SM)

$12.99

$

Usually ships in 2-12 days

0

16

Ferris 5050857X10P5

HOSE, 10-1/2"

$

$

Not available

17

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

-

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

18

Ferris 5050933X9P75

HOSE, 9-3/4"

$

$

Currently unavailable

19

Ferris 5050933X22P75

HOSE, Hydraulic, 22-3/4"

$

$

Currently unavailable

20

Ferris 5021616

FITTING, Male Adapter

Note: (Items #20 & #21 must be purchased in a set.)

$9.49

$

Usually ships in 2-12 days

0

21

Ferris 5021615

FITTING, 7/16" O-Ring 90 Degree Swivel
(Superseded to 5021615FS)

Note: (Items #20 & #21 must be purchased in a set.)

$23.99

$

Usually ships in 2-12 days

0

22

Ferris 1621636

FITTING, Plug

$

$

Currently unavailable

23

Ferris 5021621

HYDRAULIC WHEEL MOTOR

$

$

Currently unavailable

24

Ferris 5050896X3

HOSE, 3" Long

$

$

Currently unavailable

25

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

26

Ferris 5021618

FITTING, Tee
(Superseded to 5021618FS)

$18.99

$

Usually ships in 2-12 days

0

27

Ferris 5050869X5P25

HOSE, 5-1/4"

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5050869X25

HOSE, 25"
(Superseded to 5050869X25FS)

$14.99

$

Usually ships in 2-12 days

0

29

Ferris 5044024B

PLATE, Pump Mount

$

$

Currently unavailable

30

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5021620

FITTING, O-Ring - Hose

$14.99

$

Usually ships in 2-12 days

0

32

Ferris 5021363

FITTING, O-Ring, 90 Deg.

$

$

Currently unavailable

33

Ferris 5021377

FITTING, Straight Swivel
(Superseded to 5021377FS)

$10.99

$

Usually ships in 2-12 days

0

34

Ferris 5021373

FITTING, O-Ring - NPT, Swivel

$

$

Currently unavailable

35

Ferris 5021333

HYDRAULIC PUMP
(Superseded to 5021333FS)

$3616.99

$

Usually ships in 2-12 days

0

36

Ferris 5021381

HOSE ASSEMBLY, 17"

$90.99

$

Usually ships in 2-12 days

0

37

Ferris 5021380

HOSE ASSEMBLY, 19"
(Superseded to 5021380FS)

$142.99

$

Usually ships in 2-12 days

0

38

Ferris 5021382

HOSE ASSEMBLY, 15"
(Superseded to 5021382FS)

$127.99

$

Usually ships in 2-12 days

0

39

Ferris 5021383

HOSE ASSEMBLY, 13"

$86.99

$

Usually ships in 2-12 days

0

40

Ferris 5021360

FITTING, Tee

$

$

Currently unavailable

41

Ferris 5021361

FITTING, 1/2 NPT, 45 Deg. Swivel
(Superseded to 5021361SM)

$27.99

$

Usually ships in 2-12 days

0

42

Ferris 5021362

FITTING, O-Ring - NPT, 45 Deg.

$

$

Currently unavailable

43

Ferris 5050862X26

WIRE LOOM, 26"
(Superseded to 5050862X26FS)

$5.49

$

Usually ships in 2-12 days

0

44

Ferris 5050862X38

WIRE LOOM, 38"
(Superseded to 5050862X38FS)

$5.99

$

Usually ships in 2-12 days

0

45

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

46

Ferris 5025203X16

PIN, COTTER, 1/8" X 2"
(Superseded to 5025203X16SM)

Note: (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

Note: (NOT SHOWN)

$34.99

$

In Stock, only 1 left!

0
