ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 7671 & Above) Transaxle Drive Group Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

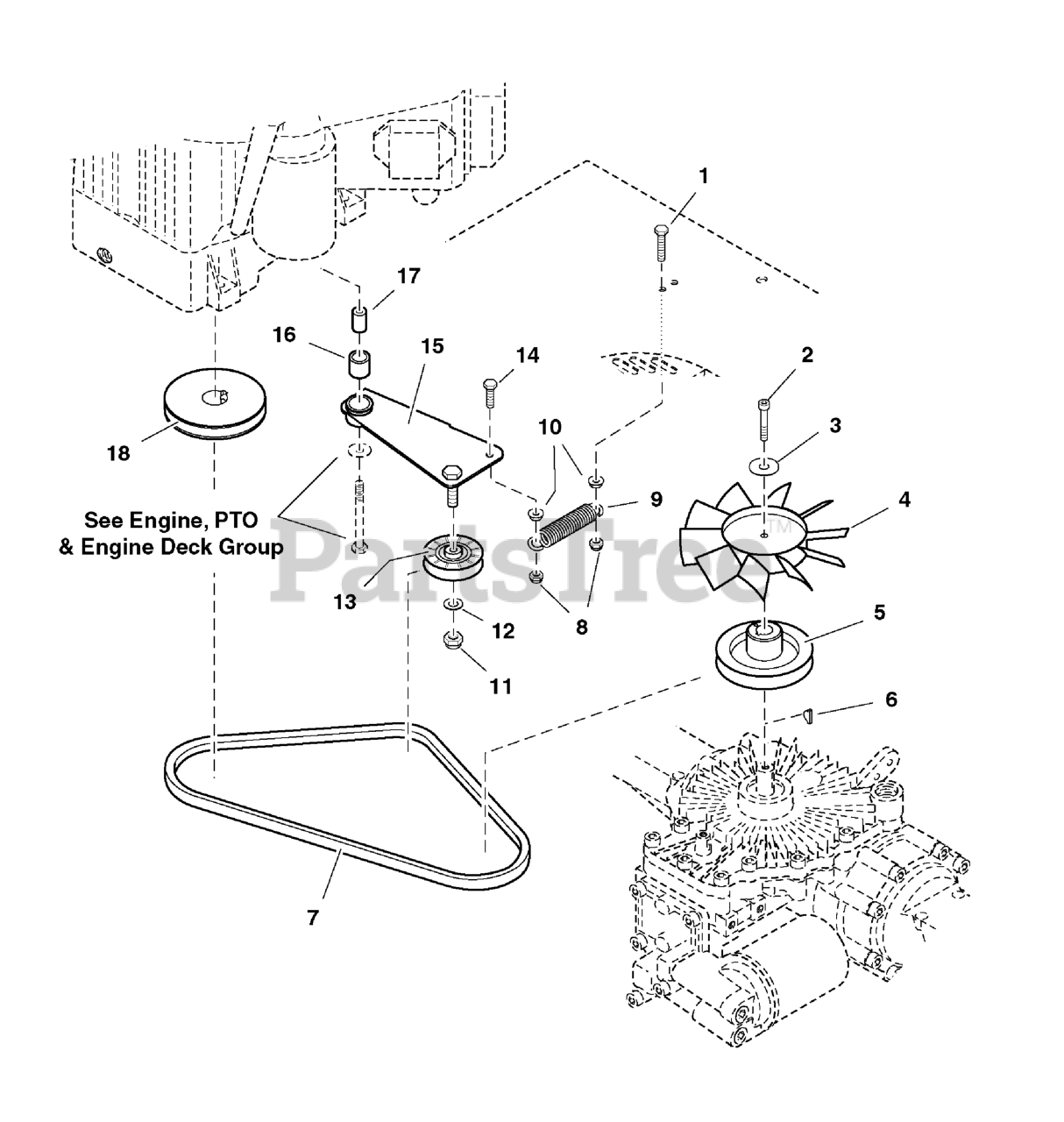

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5025055X14

BOLT, 5/16-18 x 1-3/4 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025268

BOLT, Allen Head, 1/4-20 x 1-3/4
(Superseded to 5025268SM)

$

$

Not available

3

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5043647

PULLEY, Transmission Input
(Superseded to 5043647SM)

$

$

Not available

6

Ferris 5021839

KEY, Hi-Pro Woodruff

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5021105

BELT, A-Section
(Superseded to 5021105SM)

$26.99

$

In Stock, only 1 left!

0

8

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

10

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

11

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5043627

IDLER PULLEY
(Superseded to 5043627SM)

$45.99

$

In Stock, only 1 left!

0

14

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5042169B

IDLER ARM ASSEMBLY, Complete

$71.99

$

Usually ships in 2-12 days

0

16

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

17

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

18

Ferris 5042129

PULLEY, Crankshaft

Note: (Briggs)

$94.99

$

Usually ships in 2-12 days

0

18

Ferris 5042302

PULLEY, Crankshaft

Note: Kohler

$

$

Not available
