ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 7671 & Above) Parking Brake Group Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

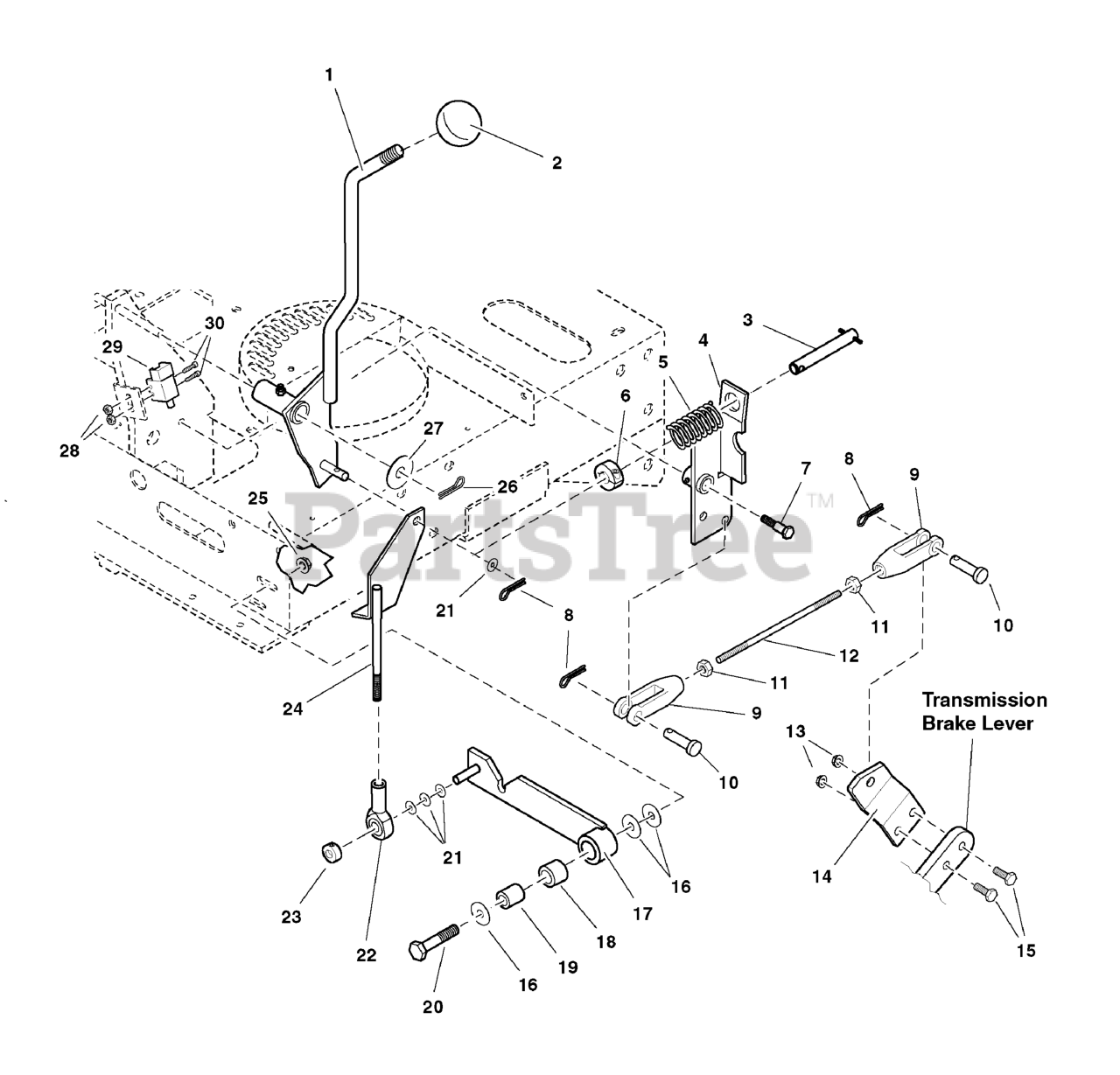

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5030919B

PARKING BRAKE LEVER
(Superseded to 5030919BFS)

$136.99

$

Usually ships in 2-12 days

0

2

Ferris 5021733

KNOB
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

3

Ferris 5043982

SPRING BAR ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

4

Ferris 5043971B

BRAKE ROCKER ARM

$

$

Currently unavailable

5

Ferris 5021667

SPRING, Compression

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5010477

COLLAR, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

7

Ferris 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

8

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5043976

BRAKE LINKAGE ROD

$23.99

$

Usually ships in 2-12 days

0

13

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

14

Ferris 5043674B

BRAKE LEVER

$14.99

$

Usually ships in 2-12 days

0

15

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

Note: (Includes Ref No. 19)

$56.99

$

Usually ships in 2-12 days

0

18

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

19

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

20

Ferris 5025011X16

BOLT, 5/16-18 x 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

23

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

24

Ferris 5043972B

BRAKE LOCK LINK
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

25

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

26

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

27

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 6

0

28

Ferris 5025029

NUT, #10-24 Hex
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

29

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

30

Ferris 5025179X6

SCREW, #10-24 x 3/4
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0
