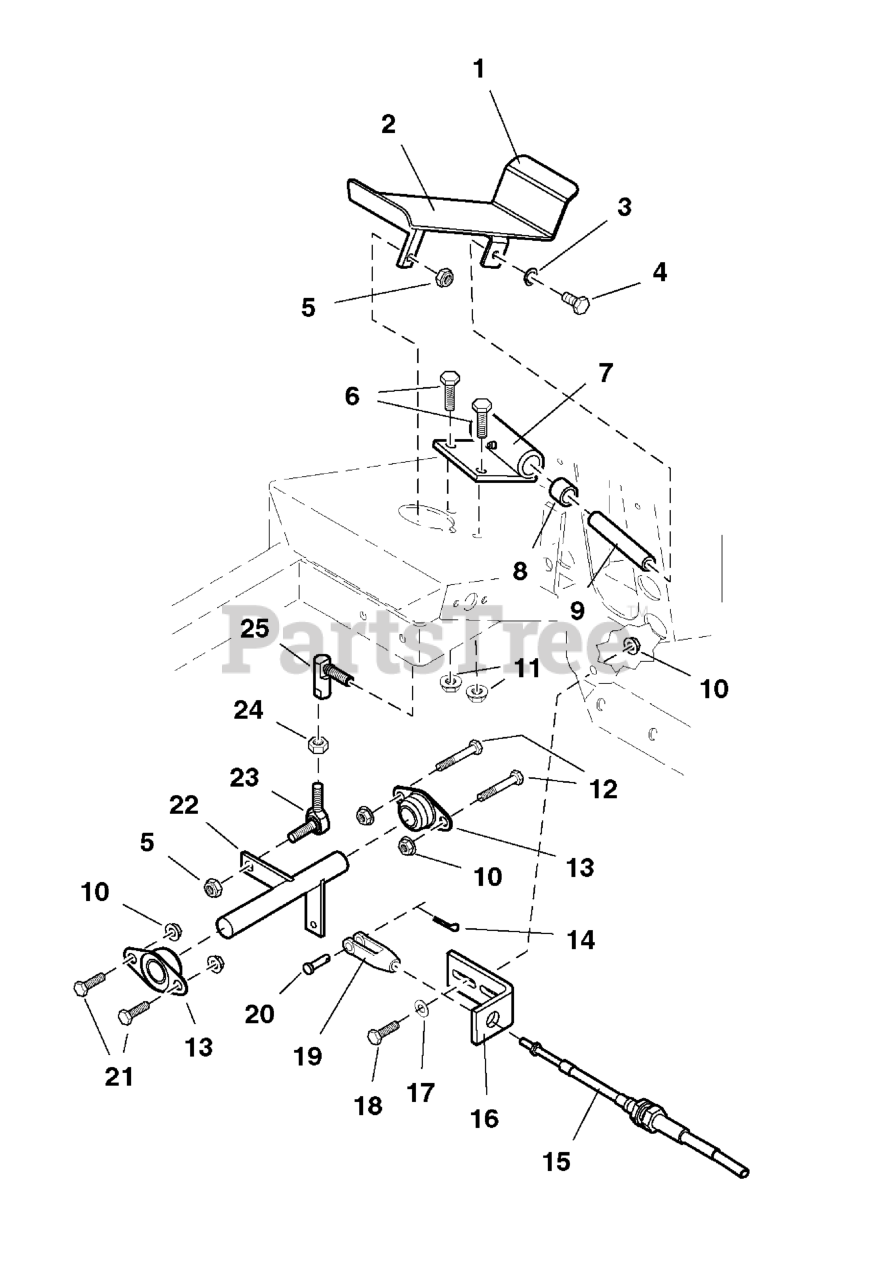

ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 7671 & Above) Motion Control Group - Trailer Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

Motion Control Group - Trailer Parts Diagram

  • Title

1

Ferris 5042185B

FOOT CONTROL PEDAL

$

$

Currently unavailable

2

Ferris 5042281

SAFETY WALK
(Superseded to 5042281SM)

$9.49

$

Usually ships in 2-12 days

0

3

Ferris 5025171

WASHER, 3/8" Lock
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

6

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5042137B

FOOT PEDAL PIVOT MOUNT, Complete
(Superseded to 5042137BFS)

$90.99

$

Usually ships in 2-12 days

0

8

Ferris 5020875P

BUSHING, PLASTIC,3/4 X 1 X 3/4
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

9

Ferris 5042147

SHAFT, Pedal Pivot
(Superseded to 5042147SM)

$20.99

$

Usually ships in 2-12 days

0

10

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

11

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5025011X20

BOLT, 5/16-18 x 2-1/2
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

14

Ferris 5025204X4

COTTER PIN, 1/16" x 1/2"

$

$

Currently unavailable

15

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

16

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

17

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

19

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

20

Ferris 5025212X8

CLEVIS PIN, 1/4 x 1
(Superseded to 5025212X8FS)

$2.49

$

Usually ships in 2-12 days

0

21

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

22

Ferris 5042184B

BELL CRANK

$60.99

$

Usually ships in 2-12 days

0

23

Ferris 5021049

BALL JOINT, 3/8-24 Male, Studded

$28.99

$

Usually ships in 2-12 days

0

24

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0
