ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 7541 - 7670) Transaxle Drive Group Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

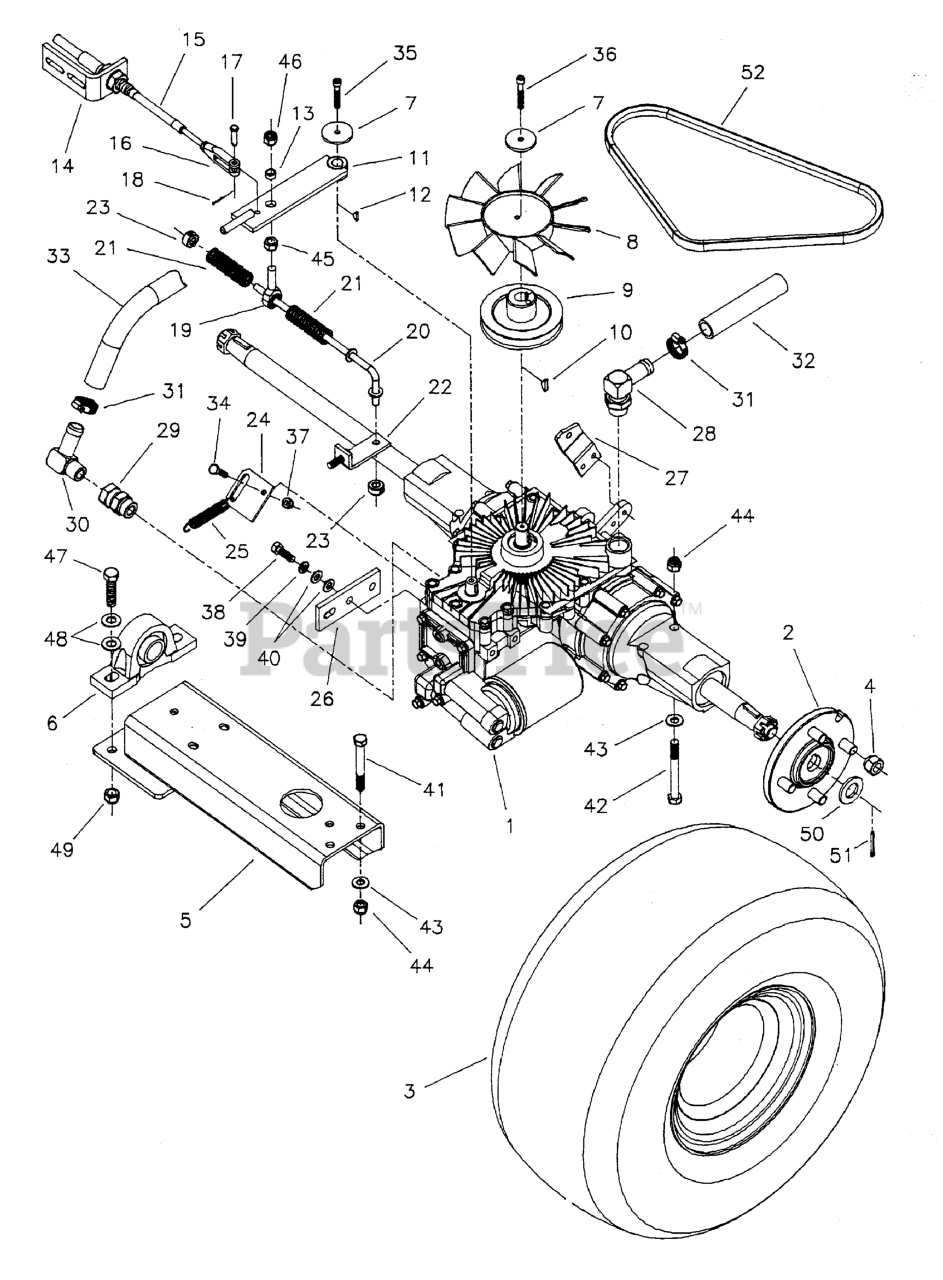

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5022164

TRANSMISSION
(Superseded to 5022164SM)

$3648.99

$

Usually ships in 2-12 days

0

-

Ferris 5021068X1

FILTER, Transmission Oil

$47.99

$

Usually ships in 2-12 days

0

-

Ferris 5022183

NUT, Hex Slotted

$21.99

$

Usually ships in 2-12 days

0

-

Ferris 5022184

KEY, Woodruff

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5022165

HUB, 4-Bolt Tapered
(Superseded to 5022165SM)

$80.99

$

Usually ships in 2-12 days

0

3

Ferris 5021094

WHEEL & TIRE ASSEMBLY, 20 x 10 x 8, Complete

$228.99

$

Usually ships in 2-12 days

0

4

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5043675B

AXLE SUPPORT

$153.99

$

Usually ships in 2-12 days

0

6

Ferris 5021095

BEARING, PILLOW BLOCK, 1
(Superseded to 5021095SM)

$75.99

$

Usually ships in 2-12 days

0

7

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

9

Ferris 5043647

PULLEY, Transmission Input
(Superseded to 5043647SM)

$

$

Not available

10

Ferris 5021839

KEY, Hi-Pro Woodruff

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5042319B

TRANSMISSION CONTROL ARM

$109.99

$

Usually ships in 2-12 days

0

12

Ferris 5020149

KEY, #3 Woodruff

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

15

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

16

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

17

Ferris 5025212X8

CLEVIS PIN, 1/4 x 1
(Superseded to 5025212X8FS)

$2.49

$

Usually ships in 2-12 days

0

18

Ferris 5025204X4

COTTER PIN, 1/16" x 1/2"

$

$

Currently unavailable

19

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

20

Ferris 5042329

ROD, NEUTRAL SPRING WELDMENT
(Superseded to 5042329SM)

$

$

Not available

21

Ferris 5021102

SPRING, Compression
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

22

Ferris 5042328B

Spring Anchor

$20.99

$

Usually ships in 2-12 days

0

23

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

24

Ferris 5043671B

DUMP VALVE LEVER

$6.49

$

Usually ships in 2-12 days

0

25

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

26

Ferris 5042177B

BRACKET, Transmission Support

$21.99

$

Usually ships in 2-12 days

0

27

Ferris 5043674B

BRAKE LEVER

$14.99

$

Usually ships in 2-12 days

0

28

Ferris 5021161

FITTING, 90 Degrees 7/8" O-Ring

$43.99

$

Usually ships in 2-12 days

0

29

Ferris 5021166

FITTING, 7/8" O-Ring Straight Swivel
(Superseded to 5021166SM)

$13.99

$

Usually ships in 2-12 days

0

30

Ferris 5021160

FITTING, 90 Degrees 1/2" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

31

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

32

Ferris 5050836X4P875

Transmission Inlet Hose, 4.875" Long
(Superseded to 5050836X4P875SM)

$11.99

$

Usually ships in 2-12 days

0

33

Ferris 5050836X14P75

HOSE, Transmission Return, 14.75"
(Superseded to 5050836X14P75SM)

$21.99

$

In Stock, only 2 left!

0

34

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

35

Ferris 5025269

BOLT, Allen Head, 1/4-20 x 1-1/2

$2.99

$

Usually ships in 2-12 days

0

36

Ferris 5025268

BOLT, Allen Head, 1/4-20 x 1-3/4
(Superseded to 5025268SM)

$

$

Not available

37

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

38

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

39

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

41

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

42

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

43

Ferris 5025293

WASHER, 3/8" GD9
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

44

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

45

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

46

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

47

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

48

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

49

Ferris 5025094

NUT, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

50

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

51

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

52

Ferris 5021105

BELT, A-Section
(Superseded to 5021105SM)

$26.99

$

In Stock, only 1 left!

0
