ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 4259 - 7540) Electrical Schematic - Kohler W/O Actuator Harness Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

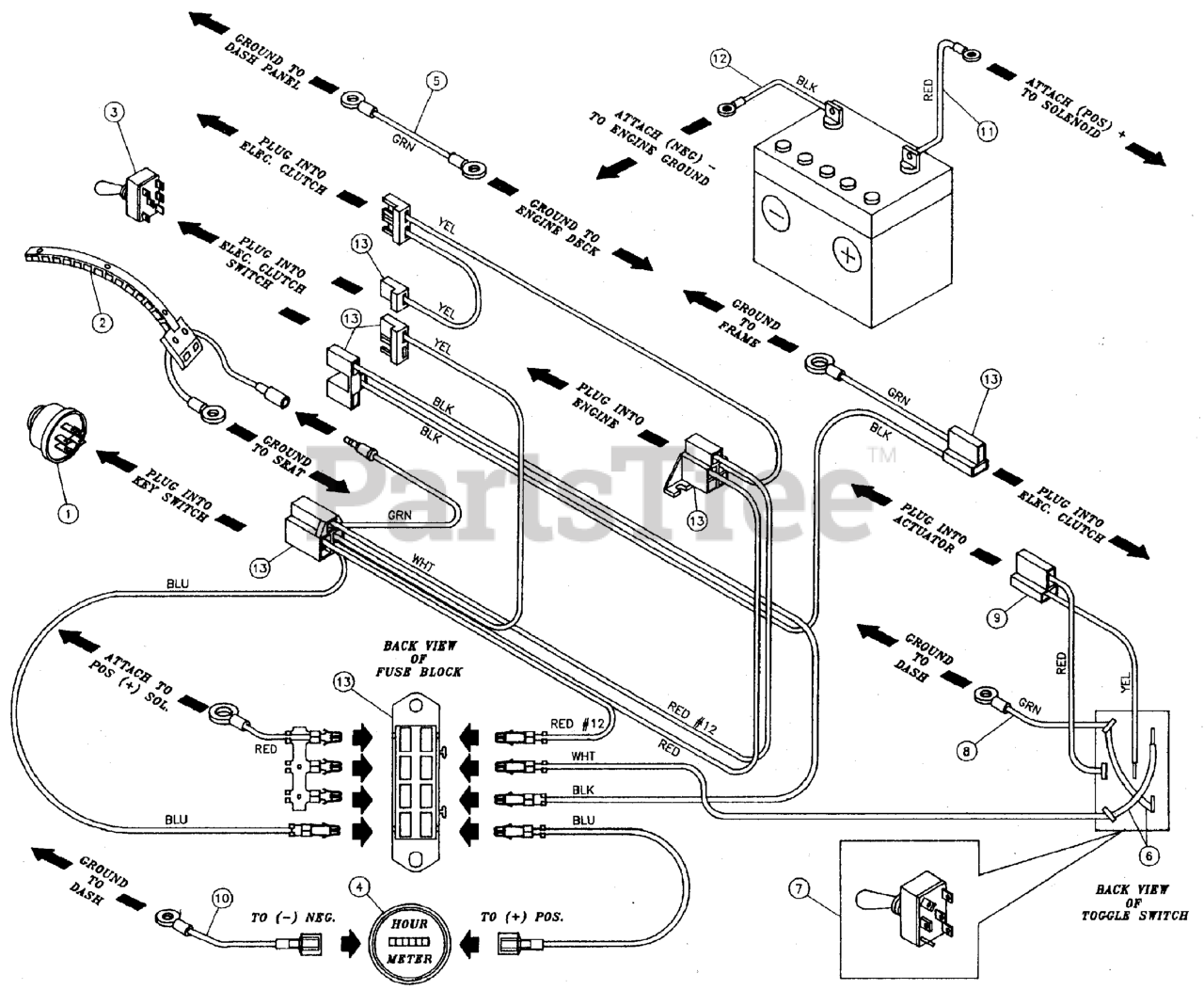

Electrical Schematic - Kohler W/O Actuator Harness Parts Diagram

  • Title

1

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

2

Seat Switch

$

$

Not available

3

Ferris 5021545

SWITCH, Electric Clutch
(Superseded to 5021545SM)

$68.99

$

In Stock, only 2 left!

0

4

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

5

Ferris 43695

Dash Ground Wire

$

$

Currently unavailable

6

Ferris 5043668

Jumper Wire

$

$

Currently unavailable

7

Ferris 5021651

Actuator Switch

$69.99

$

In Stock, only 2 left!

0

8

Ferris 5043666

Switch Ground Wire

$

$

Currently unavailable

9

Ferris 5043667

Actuator Wire Assembly

$33.99

$

Usually ships in 2-12 days

0

10

Ferris 5043665

Hour Meter Ground Wire

$

$

Currently unavailable

11

Ferris 5021542

POSITIVE (+) BATTERY CABLE, 30"
(Superseded to 5021542SM)

$29.99

$

Usually ships in 2-12 days

0

12

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

13

Ferris 5030778

Rider Main Harness

$

$

Currently unavailable
