ProCut 20 (5901032) - Ferris ProCut 20 Front Mount Mower, 22hp Kohler (SN: 7541 - 7670) Main Frame Group Parts Diagram

ProCut 20 Front Mount Mower, 22hp Kohler

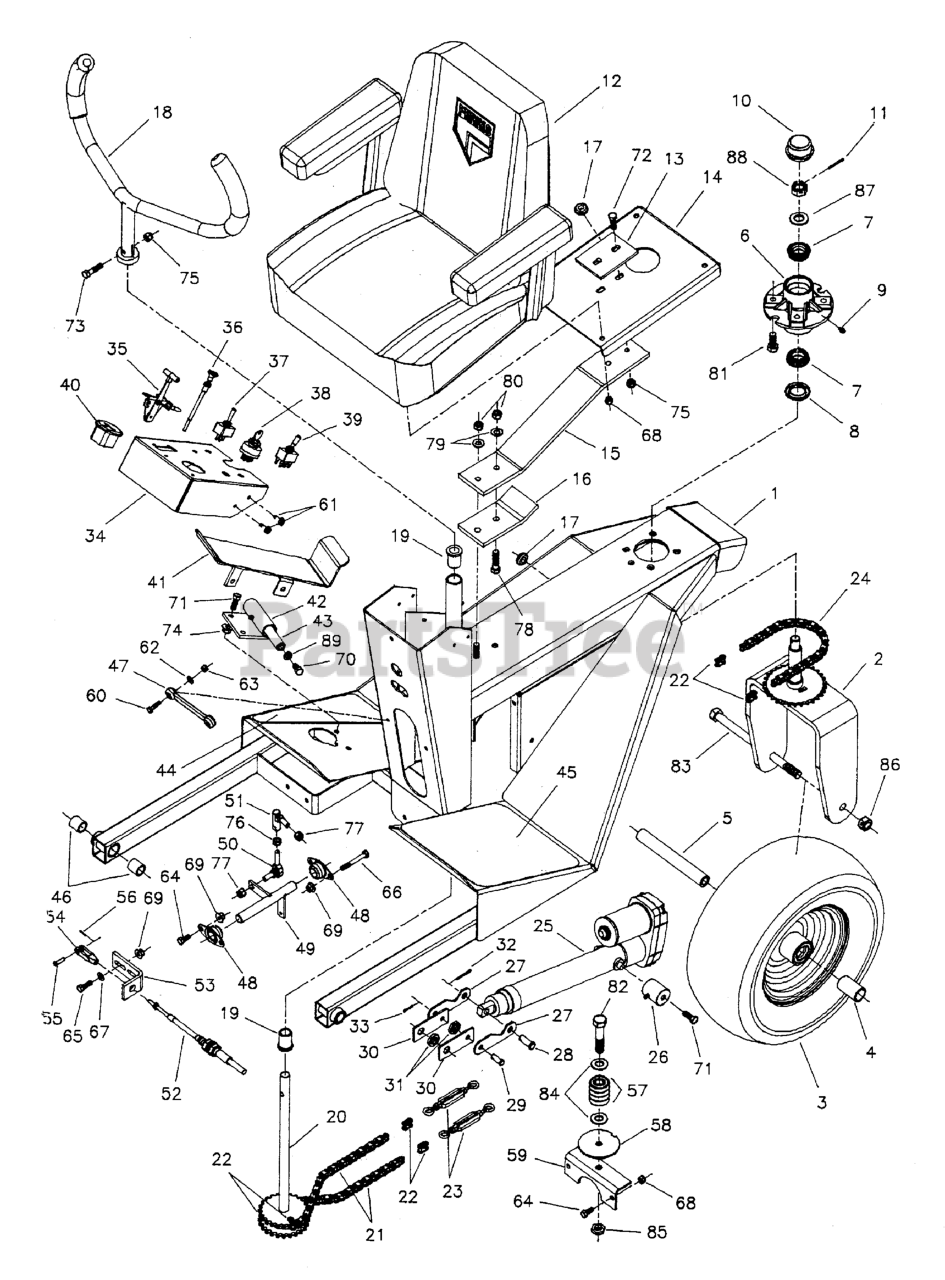

Main Frame Group Parts Diagram

  • Title

1

Ferris 5030770B

TRAILER WELDMENT

$

$

Currently unavailable

2

Ferris 5042127B

MOUNT, Steering Tire

$330.99

$

Usually ships in 2-12 days

0

3

Ferris 5021150

WHEEL & TIRE ASSEMBLY, 18 x 7.5 x 8, White, Complete

$373.99

$

Usually ships in 2-12 days

0

4

Ferris 5042315

SPACER, 1.01 X 1.25 X 2.06
(Superseded to 5042315SM)

$21.99

$

Usually ships in 2-12 days

0

5

Ferris 5042314

STEERING TIRE AXLE
(Superseded to 5042314SM)

$39.99

$

Usually ships in 2-12 days

0

6

Ferris 5042110

HUB, Steering

$

$

Not available

7

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

8

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

9

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

10

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

11

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5022167

SEAT

$

$

Currently unavailable

13

Ferris 5041522B

SUPPORT, Seat Plate

$25.99

$

Usually ships in 2-12 days

0

14

Ferris 5042082B

PLATE, Seat

$106.99

$

Usually ships in 2-12 days

0

15

Ferris 5041836B

SEAT SPRING
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

16

Ferris 5042252B

SUPPORT, Seat Spring
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

17

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

18

Ferris 5030314

STEERING HANDLE ASSEMBLY

$

$

Currently unavailable

-

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

-

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

19

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

20

Ferris 5042087

SHAFT, Steering Sprocket
(Superseded to 5042087SM)

$174.99

$

Usually ships in 2-12 days

0

21

Ferris 5010673X31

CHAIN, #40 Roller, 31 Links

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5010674

CONNECTOR, #40 Chain Link
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5042090

TURNBUCKLE
(Superseded to 5042090SM)

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5010673X35

CHAIN, #40 Roller, 35 Links

$22.99

$

Usually ships in 2-12 days

0

25

Ferris 5043536

ELECTRIC ACTUATOR
(Superseded to 5100713SM)

$1067.99

$

Usually ships in 2-12 days

0

26

Ferris 5044082

ACTUATOR MOUNT
(Superseded to 5044082SM)

$46.99

$

Usually ships in 2-12 days

0

27

Ferris 5043677

ACTUATOR LINK, Lower
(Superseded to 5043677FS)

$14.99

$

Usually ships in 2-12 days

0

28

Ferris 5043688

PIN, Clevis
(Superseded to 5043688SM)

$4.99

$

Usually ships in 2-12 days

0

29

Ferris 5025214X8

CLEVIS PIN, 3/8 x 1
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

30

Ferris 5044618

ACTUATOR LINK, Upper
(Superseded to 5044618FS)

$15.99

$

Usually ships in 2-12 days

0

31

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

32

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

33

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Ferris 5044212B

DASH

$

$

Currently unavailable

35

Ferris 5021662

CABLE, Throttle, 54"

$80.99

$

Usually ships in 2-12 days

0

36

Ferris 5021675

CABLE, CHOKE CONTROL, 45

$63.99

$

In Stock, only 1 left!

0

37

Ferris 5021734

SWITCH, Actuator
(Superseded to 5021734SM)

$

$

Not available

38

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

39

Ferris 5021545

SWITCH, Electric Clutch
(Superseded to 5021545SM)

$68.99

$

In Stock, only 2 left!

0

40

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

41

Ferris 5042185B

FOOT CONTROL PEDAL

$

$

Currently unavailable

41

Ferris 5042281

SAFETY WALK
(Superseded to 5042281SM)

$9.49

$

Usually ships in 2-12 days

0

42

Ferris 5042137B

FOOT PEDAL PIVOT MOUNT, Complete
(Superseded to 5042137BFS)

$90.99

$

Usually ships in 2-12 days

0

-

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 5042147

SHAFT, Pedal Pivot
(Superseded to 5042147SM)

$20.99

$

Usually ships in 2-12 days

0

44

Ferris 5042282

SAFETY WALK

$6.49

$

Usually ships in 2-12 days

0

45

Ferris 5022200

SAFETY WALK

$

$

Not available

46

Ferris 5020876P

BUSHING, Plastic
(Superseded to 5023344SM)

$9.49

$

Usually ships in 2-12 days

0

47

Ferris 5020959

RUBBER STRAP
(Superseded to 5020959SM)

$7.49

$

Usually ships in 2-12 days

0

48

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

49

Ferris 5042184B

BELL CRANK

$60.99

$

Usually ships in 2-12 days

0

50

Ferris 5021049

BALL JOINT, 3/8-24 Male, Studded

$28.99

$

Usually ships in 2-12 days

0

51

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

52

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

53

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

54

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

55

Ferris 5025212X8

CLEVIS PIN, 1/4 x 1
(Superseded to 5025212X8FS)

$2.49

$

Usually ships in 2-12 days

0

56

Ferris 5025204X4

COTTER PIN, 1/16" x 1/2"

$

$

Currently unavailable

57

Ferris 5021882

BEARING, Roller
(Superseded to 5021882FS)

$11.99

$

Usually ships in 2-12 days

0

58

Ferris 5043652

WASHER, Chain
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

59

Ferris 5044627B

MOUNT, Chain Roller
(Superseded to 5044627BFS)

$15.99

$

Usually ships in 2-12 days

0

60

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

61

Ferris 5025279X6

BOLT, Self-Tapping, 1/4-20 x 3/4

$

$

Not available

62

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

63

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

64

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

65

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

66

Ferris 5025011X20

BOLT, 5/16-18 x 2-1/2
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

67

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

68

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

69

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

70

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

71

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

72

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

73

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

74

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

75

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

76

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

77

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

78

Ferris 5025291X14

BOLT, 7/16-20 x 1-3/4

$

$

Currently unavailable

79

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

80

Ferris 5025094

NUT, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

81

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

82

Ferris 5025019X24

BOLT, 5/8-11 x 3" GD5 CZ

$

$

Currently unavailable

83

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

84

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 6

0

85

Ferris 5025282

NUT, 5/8-11 Hex Jam Nylon Lock
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

86

Ferris 5025103

NUT, 5/8-11 Hex Side Lock
(Superseded to 5025103SM)

$3.49

$

Usually ships in 2-12 days

0

87

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

88

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0
