ProCut 20 (5900096) - Ferris ProCut 20 Front Mount Mower, 20hp Briggs & Stratton (SN: 7671 & Above) Engine Accessories Group - Briggs Parts Diagram

ProCut 20 Front Mount Mower, 20hp Briggs & Stratton

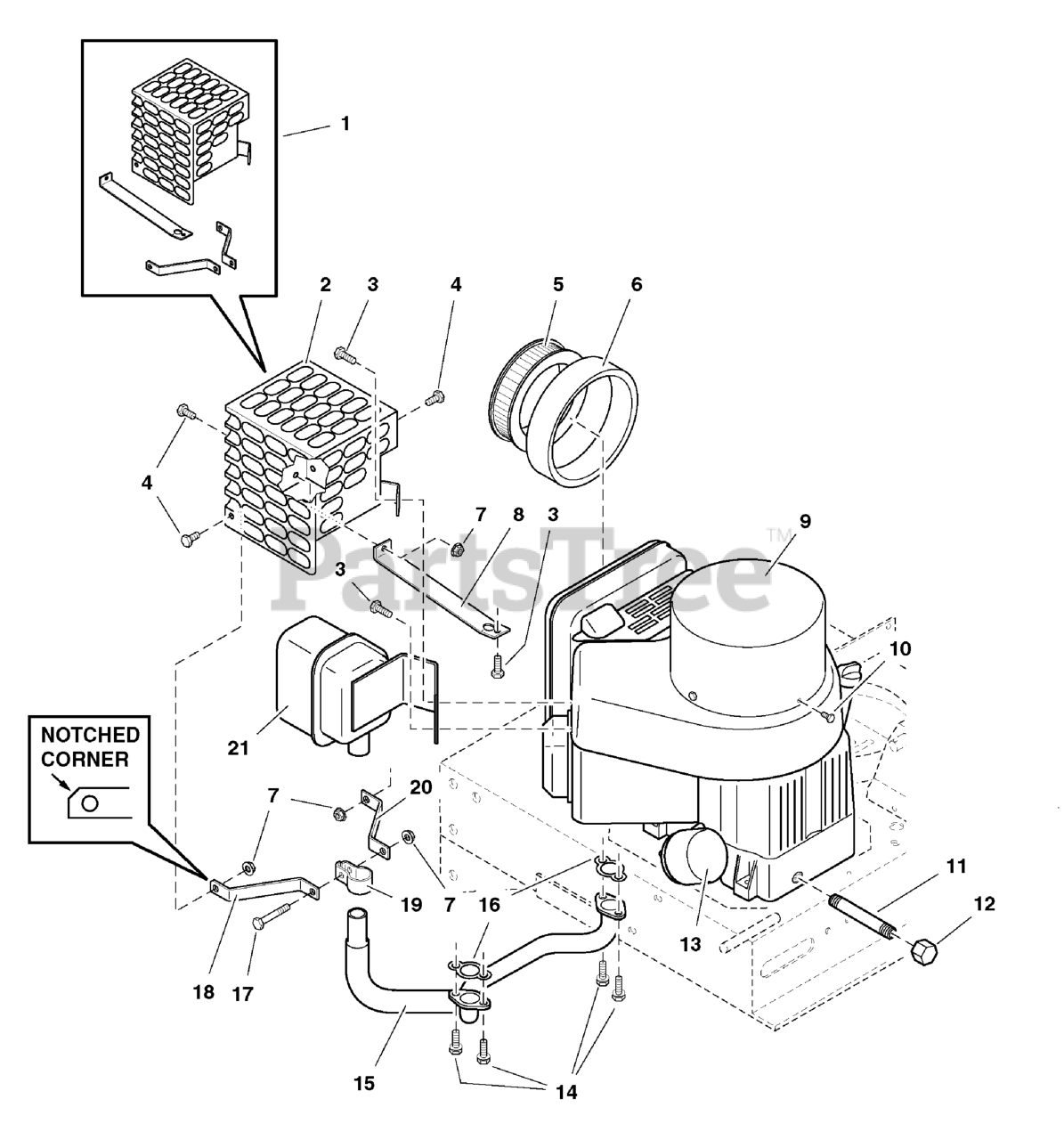

Engine Accessories Group - Briggs Parts Diagram

  • Title

1

Ferris 5045348

MUFFLER GUARD ASSEMBLY, Complete

Note: (Includes Ref No. 2-4, 7, 8,17, 18, 20)

$

$

Currently unavailable

2

Ferris 5045347B

MUFFLER GUARD

$

$

Currently unavailable

3

SCREW (805247)

$

$

Not available

4

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

5

AIR FILTER (805267)

$

$

Not available

6

PRE-CLEANER (805113)

$

$

Not available

7

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

8

Ferris 5045346B

BRACKET, Bottom

$

$

Currently unavailable

9

DEBRIS GUARD (808192)

$

$

Not available

10

SCREW (810080)

$

$

Not available

11

Ferris 5021707

NIPPLE, 3/8 NPT x 4-1/2

$

$

Currently unavailable

12

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5021178X1

OIL FILTER (492932)

$29.99

$

Usually ships in 2-12 days

0

14

SCREW (805158)

$

$

Not available

15

MANIFOLD (805778X)

$

$

Not available

16

EXHAUST GASKET (805024)

$

$

Not available

17

Ferris 5025011X16

BOLT, 5/16-18 x 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5045345B

BRACKET, Front, Left

$

$

Currently unavailable

19

MANIFOLD CLAMP (807595)

$

$

Not available

20

Ferris 5045349B

BRACKET, Front-Right

$

$

Currently unavailable

21

MUFFLER (807953X)

$

$

Not available
