ProCut 18 (H1818B) - Ferris ProCut 18 Front Mount Mower, 18hp Briggs & Stratton (SN: H1360 & Above) Rider Frame Assembly - Manual Lift Parts Diagram

ProCut 18 Front Mount Mower, 18hp Briggs & Stratton

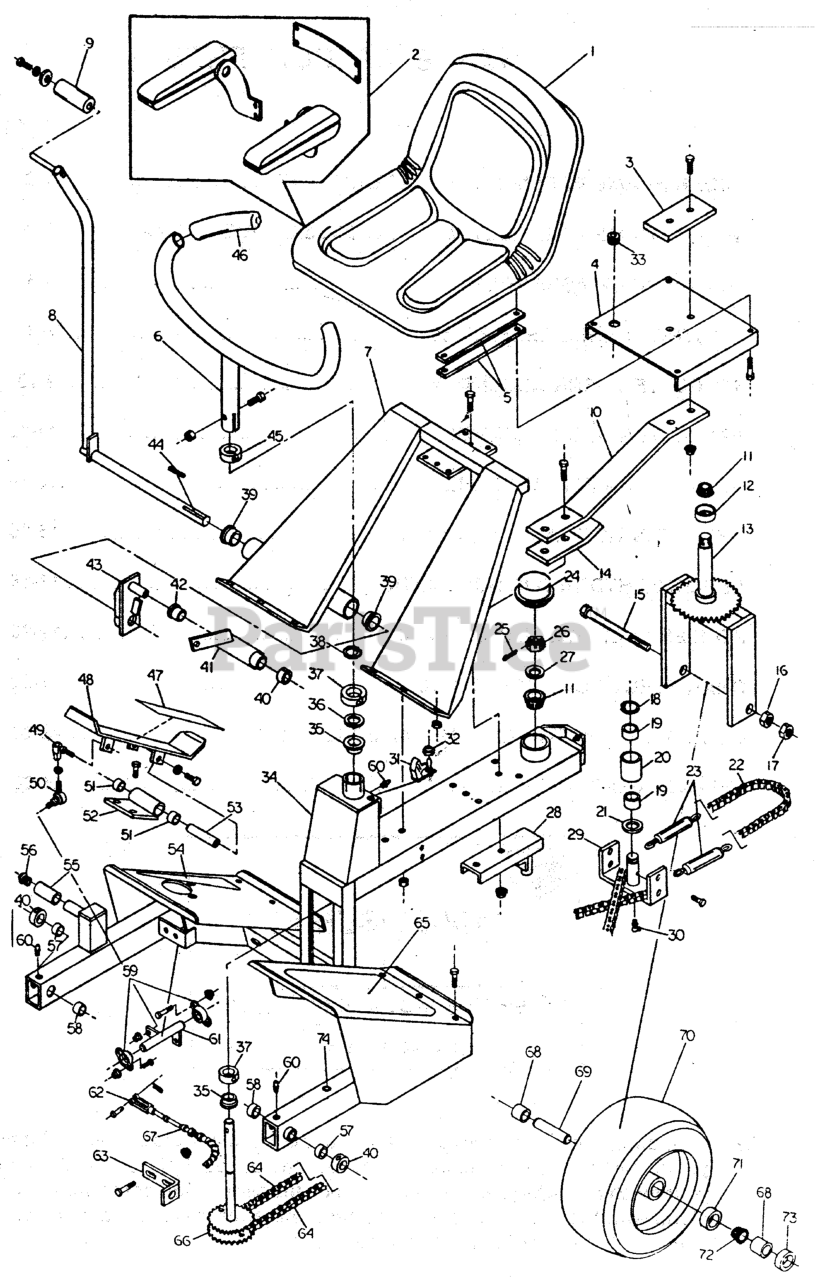

Rider Frame Assembly - Manual Lift Parts Diagram

  • Title

1

Ferris 5021185

SEAT

$

$

Currently unavailable

2

Ferris 5021185X1

Arm Rest Kit

Note: (Optional)

$

$

Currently unavailable

2

Ferris 5020784X2

Arm Rest (Left/Right Interchangeable)

$

$

Currently unavailable

3

Ferris 5041522B

SUPPORT, Seat Plate

$25.99

$

Usually ships in 2-12 days

0

4

Ferris 5042447

Seat Plate

$

$

Currently unavailable

5

Ferris 5042428

Seat Plate Spacer

$

$

Currently unavailable

6

Ferris 5041770B

STEERING HANDLE

$131.99

$

Usually ships in 2-12 days

0

7

Ferris 5030425

Rider Frame Support

$

$

Currently unavailable

8

Ferris 5030430

LIFT HANDLE

$

$

Currently unavailable

9

Ferris 21188

Plastic Handle

$

$

Currently unavailable

10

Ferris 5041836B

SEAT SPRING
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

11

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

12

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

13

Ferris 5042127B

MOUNT, Steering Tire

$330.99

$

Usually ships in 2-12 days

0

14

Ferris 5042252B

SUPPORT, Seat Spring
(Superseded to 5041836KIT)

$97.99

$

In Stock, only 1 left!

0

15

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

16

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

17

Ferris 5025103

NUT, 5/8-11 Hex Side Lock
(Superseded to 5025103SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5020054

BUSHING, Brass
(Superseded to 5020054FS)

$8.99

$

Usually ships in 2-12 days

0

20

Ferris 5042083

CHAIN ROLLER

$

$

Currently unavailable

21

Ferris 5020928

SHIM

$6.99

$

Usually ships in 2-12 days

0

22

Ferris 5010673X36

CHAIN, #40 Roller, 36 Links

$20.99

$

Usually ships in 2-12 days

0

23

Ferris 5042090

TURNBUCKLE
(Superseded to 5042090SM)

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

25

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

26

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

27

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

28

Ferris 5042422

Steering Wheel Stop

$

$

Currently unavailable

29

Ferris 5042091

Chain Roller Mount

$

$

Currently unavailable

30

Ferris 5020020

45 Degree Grease Fitting
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

31

Ferris 5021093

Switch Guard

$

$

Currently unavailable

31

Ferris 5021213

Toggle Switch

$56.99

$

Usually ships in 2-12 days

0

32

Ferris 5020831

Toggle Boot

$24.99

$

Usually ships in 2-12 days

0

33

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

34

Ferris 30450

Rider Frame

$

$

Currently unavailable

35

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

36

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5021052

COLLAR, 1-1/4" Split

$

$

Currently unavailable

38

Ferris 5021034

Snap Ring

$2.49

$

Usually ships in 2-12 days

0

39

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

40

Ferris 5010114

COLLAR, 3/4" Split
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

41

Ferris 5042410

Over Center Bracket

$

$

Currently unavailable

42

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

43

Ferris 5042411

Lift Bracket w/ Hub

$

$

Currently unavailable

44

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

45

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

Usually ships in 2-12 days

0

46

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

47

Ferris 5042281

SAFETY WALK
(Superseded to 5042281SM)

$9.49

$

Usually ships in 2-12 days

0

48

Ferris 5042185B

FOOT CONTROL PEDAL

$

$

Currently unavailable

49

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

50

Ferris 5021049

BALL JOINT, 3/8-24 Male, Studded

$28.99

$

Usually ships in 2-12 days

0

51

Ferris 5020875

BUSHING
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

52

Ferris 5042137B

FOOT PEDAL PIVOT MOUNT, Complete
(Superseded to 5042137BFS)

$90.99

$

Usually ships in 2-12 days

0

53

Ferris 5042147

SHAFT, Pedal Pivot
(Superseded to 5042147SM)

$20.99

$

Usually ships in 2-12 days

0

54

Ferris 5042282

SAFETY WALK

$6.49

$

Usually ships in 2-12 days

0

55

Ferris 50839-1

1" Heater Hose

$

$

Currently unavailable

56

Ferris 5020809

End Plug

$

$

Currently unavailable

57

Ferris 5020043

BUSHING, Brass

$

$

Currently unavailable

58

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0

59

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

60

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

61

Ferris 5042184B

BELL CRANK

$60.99

$

Usually ships in 2-12 days

0

62

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

63

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

64

Ferris 5010673X31

CHAIN, #40 Roller, 31 Links

$9.49

$

Usually ships in 2-12 days

0

65

Ferris 5022200

SAFETY WALK

$

$

Not available

66

Ferris 5042087

SHAFT, Steering Sprocket
(Superseded to 5042087SM)

$174.99

$

Usually ships in 2-12 days

0

67

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

68

Ferris 5042315

SPACER, 1.01 X 1.25 X 2.06
(Superseded to 5042315SM)

$21.99

$

Usually ships in 2-12 days

0

69

Ferris 5042314

STEERING TIRE AXLE
(Superseded to 5042314SM)

$39.99

$

Usually ships in 2-12 days

0

70

Ferris 5021150

WHEEL & TIRE ASSEMBLY, 18 x 7.5 x 8, White, Complete

$373.99

$

Usually ships in 2-12 days

0

71

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

72

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

73

Ferris 5020885

GREASE SEAL
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

74

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable
