ProCut 18 (H1818B) - Ferris ProCut 18 Front Mount Mower, 18hp Briggs & Stratton (SN: H1360 & Above) Hydrostatic Transmission Parts Diagram

ProCut 18 Front Mount Mower, 18hp Briggs & Stratton

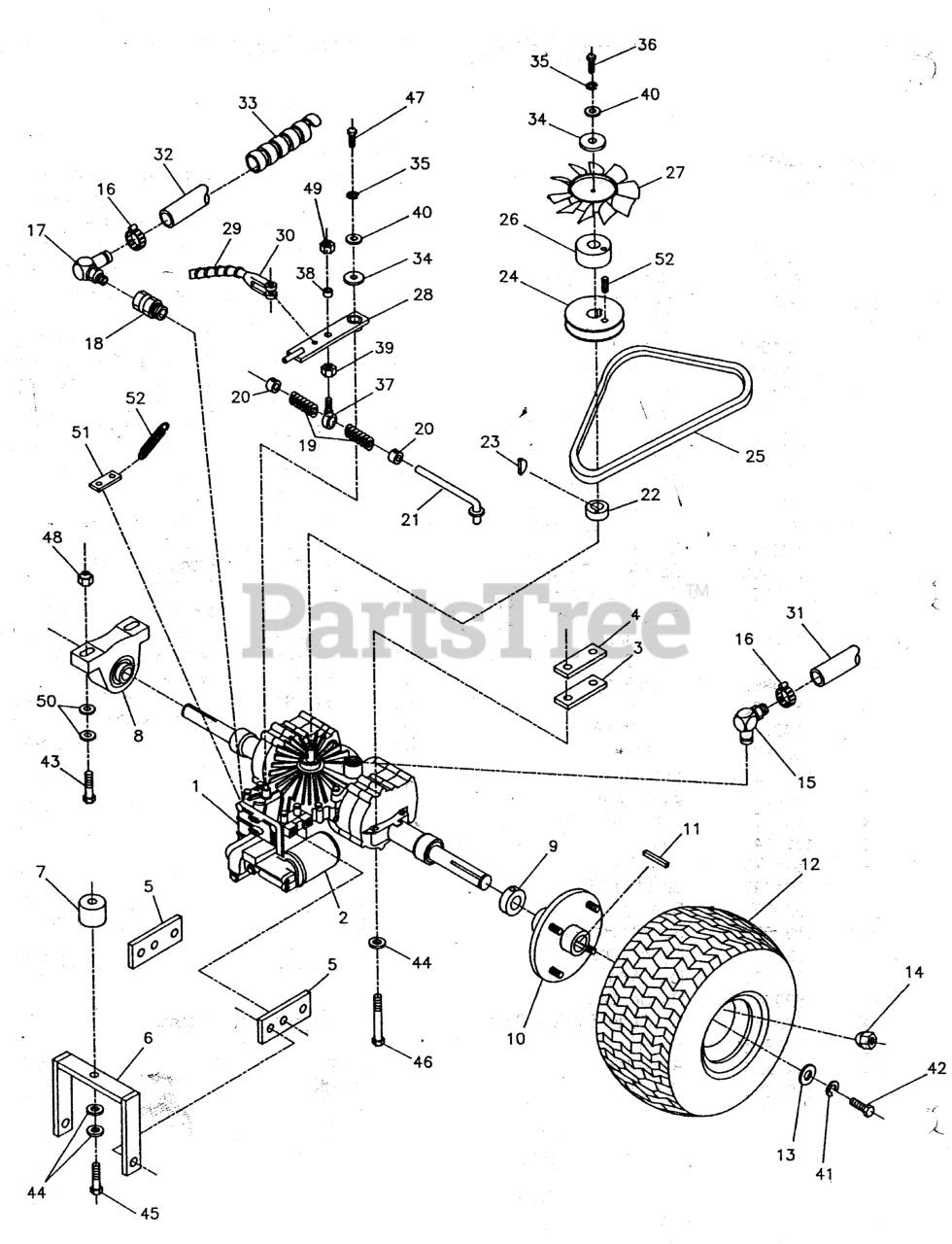

Hydrostatic Transmission Parts Diagram

  • Title

1

Ferris 5021068

850 Transaxle
(Superseded to 5021425KITSM)

Note: (S/N: 3389 & below)

$5153.99

$

Usually ships in 2-12 days

0

1

Ferris 5021425

Transmission

Note: (S/N: 3390 & above)

$

$

Currently unavailable

2

Ferris 5021068X1

FILTER, Transmission Oil

$47.99

$

Usually ships in 2-12 days

0

3

Ferris 5042176

3/16" Spacer (Black)

$

$

Currently unavailable

4

Ferris 5042175

1/4" Spacer (Red)

$

$

Currently unavailable

5

Ferris 5042177B

BRACKET, Transmission Support

$21.99

$

Usually ships in 2-12 days

0

6

Ferris 42178

Transmission Torque Bracket

$

$

Currently unavailable

7

Ferris 5041878

SPACER, .39 x 1.75 x .88

$

$

Currently unavailable

8

Ferris 5021095

BEARING, PILLOW BLOCK, 1
(Superseded to 5021095SM)

$75.99

$

Usually ships in 2-12 days

0

9

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

Usually ships in 2-12 days

0

10

Ferris 5030480

DRIVE HUB DETAIL

$107.99

$

Usually ships in 2-12 days

0

11

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

12

Ferris 5021045

TIRE & WHEEL ASSEMBLY, 18 X 8.5 X 8

$251.99

$

Usually ships in 2-12 days

0

12

Ferris 5021094

WHEEL & TIRE ASSEMBLY, 20 x 10 x 8, Complete

$228.99

$

Usually ships in 2-12 days

0

13

Ferris 5042131

Retaining Spacer
(Superseded to 5042131FS)

$6.99

$

Usually ships in 2-12 days

0

13

Ferris 5021210

RING, Retaining

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5021161

FITTING, 90 Degrees 7/8" O-Ring

$43.99

$

Usually ships in 2-12 days

0

16

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5021160

FITTING, 90 Degrees 1/2" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

18

Ferris 5021166

FITTING, 7/8" O-Ring Straight Swivel
(Superseded to 5021166SM)

$13.99

$

Usually ships in 2-12 days

0

19

Ferris 5021102

SPRING, Compression
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

21

Ferris 5042329

ROD, NEUTRAL SPRING WELDMENT
(Superseded to 5042329SM)

$

$

Not available

22

Ferris 5042120

Hydro Input Pulley Spacer

Note: (S/N: 3389 & below)

$6.49

$

Usually ships in 2-12 days

0

22

Ferris 5043088

SPACER, .67 x 1.25 x .50

Note: (S/N: 3390 & above)

$67.99

$

Usually ships in 2-12 days

0

23

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5042130

PULLEY (3/4" Bore)

Note: (S/N: 3389 & below)

$85.99

$

Usually ships in 2-12 days

0

24

Ferris 43073

Pulley 17mm Bore

Note: (S/N: 3390 & above)

$

$

Currently unavailable

25

Ferris 5021105

BELT, A-Section
(Superseded to 5021105SM)

$26.99

$

In Stock, only 2 left!

0

26

Ferris 5042128

Fan Pulley Spacer

$68.99

$

Usually ships in 2-12 days

0

27

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

28

Ferris 5042319B

TRANSMISSION CONTROL ARM

$109.99

$

Usually ships in 2-12 days

0

29

Ferris 5021089

CABLE, Speed Control
(Superseded to 5021089SM)

$174.99

$

Usually ships in 2-12 days

0

30

Ferris 5020981

5/16" Rod End Clevis

$19.99

$

Usually ships in 2-12 days

0

31

Ferris 50836-2

Return Hose

$

$

Currently unavailable

32

Ferris 50836-1

Inlet Hose

$

$

Currently unavailable

33

Ferris 50937-1

Plastic Hose Protector

$

$

Currently unavailable

34

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

35

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

36

Ferris 5025010X14

BOLT, 1/4-20 x 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

37

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

38

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

39

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

41

Ferris 5025171

WASHER, 3/8" Lock
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

42

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

43

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

46

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

47

Ferris 5025008X12

BOLT, 1/4-20 x 1-1/2

$

$

Currently unavailable

48

Ferris 5025094

NUT, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

49

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

50

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

51

Ferris 5042195

Dump Valve Lever

$

$

Currently unavailable

52

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0
