PRO Z 900 KW 972-SDL (53RLLMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2023) Transmission (LH) Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

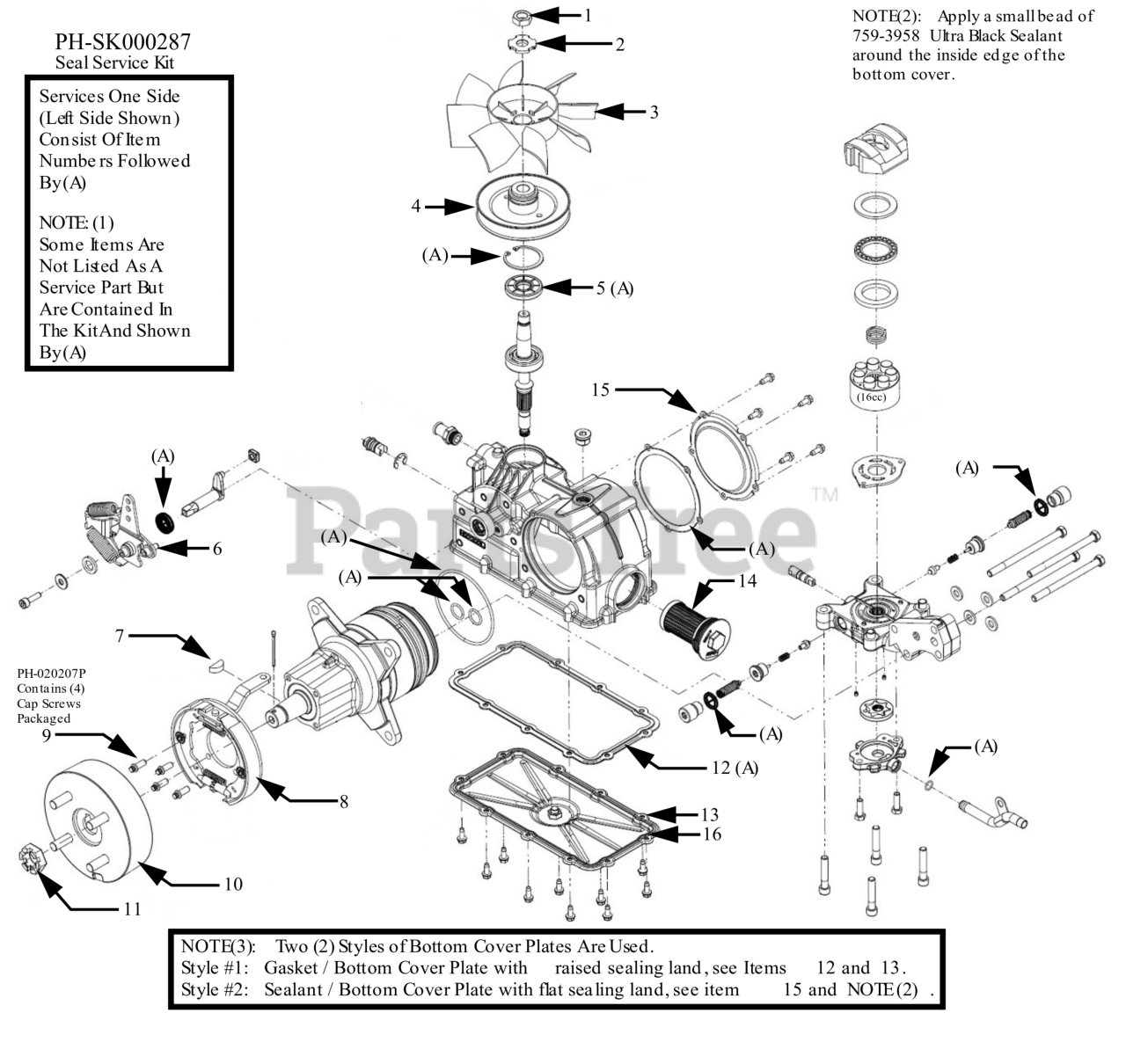

Transmission (LH) Parts Diagram

  • Title

1

Cub Cadet PH-025164

NUT

$8.49

$

Usually ships in 3-6 days

0

2

Cub Cadet PH-477370

SPACER

$21.99

$

Usually ships in 3-6 days

0

3

Cub Cadet PH-420067

FAN

$106.99

$

Usually ships in 3-6 days

0

4

Cub Cadet PH-403856

PULLEY

$169.99

$

Usually ships in 3-6 days

0

5

Cub Cadet PH-478086

SEAL KIT

$

$

Not available

6

Cub Cadet PH-SK000340

SERVICE KIT-RTN (LH)

$367.99

$

Usually ships in 3-6 days

0

7

Cub Cadet PH-038016

WOODRUFF KEY

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet PH-490169

BRAKE ASSEMBLY-ON HOLE LEVER

$449.99

$

Usually ships in 3-6 days

0

9

Cub Cadet PH-020207P

SCREW-CAP (QTY 4)

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet PH-490218

DRUM-4 BOLT BRAKE

$411.99

$

Usually ships in 3-6 days

0

11

Cub Cadet PH-025113

NUT-SLOTTED

$28.99

$

Usually ships in 3-6 days

0

12

Cub Cadet PH-034008

BOTTOM COVER GASKET

$57.99

$

Usually ships in 3-6 days

0

13

Cub Cadet PH-402136

BOTTOM COVER

$65.99

$

Usually ships in 3-6 days

0

14

Cub Cadet PH-411135S

FILTER KIT

$71.99

$

In Stock, only 2 left!

0

15

Cub Cadet PH-402132

SIDE COVER PLATE

$111.99

$

Usually ships in 3-6 days

0

16

Cub Cadet PH-402139

BOTTOM COVER

Note: see NOTE (2)

$198.99

$

Usually ships in 3-6 days

0

A

Cub Cadet PH-SK000287

SEAL SERVICE KIT

Note: Services One Side (Left Side Shown)

$180.99

$

Usually ships in 3-6 days

0

Cub Cadet 618P07873

TRANSMISSION (LH)

$3169.99

$

Usually ships in 3-6 days

0
