PRO Z 900 KW 972-SDL (53RLLMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2023) Belts, Blades & Spindle Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

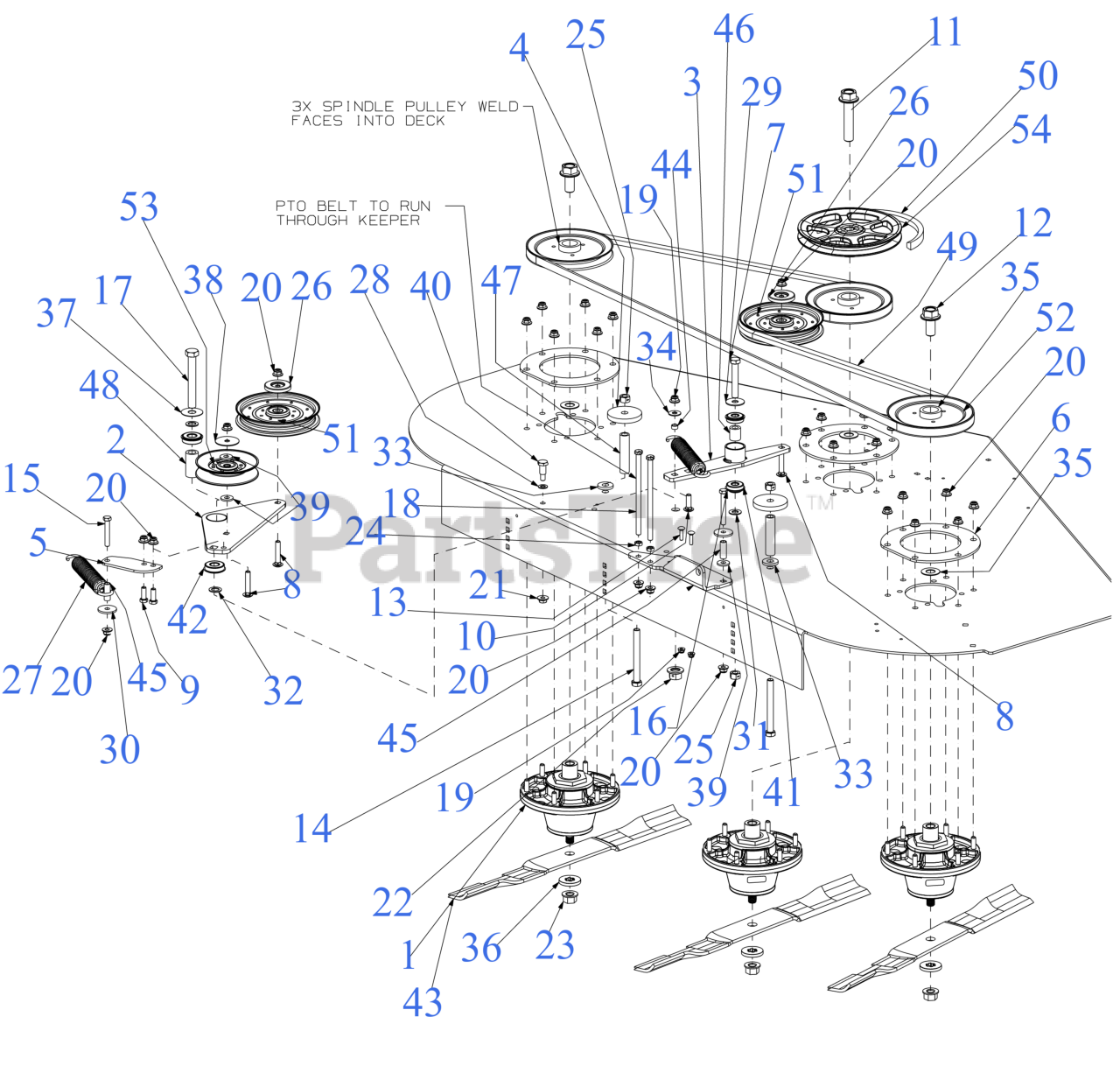

Belts, Blades & Spindle Parts Diagram

  • Title

1

Cub Cadet 918-08473

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$335.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00521

PTO IDLER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00521-4021

YELLOW PTO IDLER ASSE - CUB YELLOW 2 (4021)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680E00522A

IDLER BRACKET

$60.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E08855

SPACER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10783

SPRING ADJUSTMENT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10783-4021

SPRING ADJUSTMENT - CUB YELLOW 2 (4021)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E11199

SPINDLE SUPPORT BRACKET TOP/BTM

$49.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-08054

CAP SCREW-HHFLG 3/4-10 X 3.50 GR8

$16.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-08055

CAP SCREW-HHFLG 3/4-10 X 1.50 GR8

$7.49

$

In Stock, Qty 7

0

13

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

17

Cub Cadet 710-3151A

SCREW 5/8-18X4.5 GR5

$18.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3261

SCREW 3/8-16 x 7.00 GR5

$13.99

$

In Stock, only 2 left!

0

19

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 17

0

21

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3008

HEX JAM NUT 3/8-16 GR5

$4.99

$

In Stock, Qty 19

0

25

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 9

0

26

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

27

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0185

FLAT WASHER

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

30

Cub Cadet 736-3039

FLAT WASHER .406X1.500X.105

$5.49

$

In Stock, Qty 7

0

31

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0290

FLAT WASHER

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

34

Cub Cadet 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, Qty 13

0

36

Cub Cadet 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

37

Cub Cadet 736-0285

FLAT WASHER-.63IDX1.595ODX.62

$4.49

$

In Stock, Qty 9

0

38

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

39

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0145

SHOULDER SCREW .500

$6.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

42

Cub Cadet 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

43

Cub Cadet 942-05179

25" HI-LIFT BLADE

$33.99

$

In Stock, Qty 20+

0

44

Cub Cadet 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

45

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

47

Cub Cadet 750-06561

SPACER

$8.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

49

Cub Cadet 954-04319

DECK BELT

$90.99

$

In Stock, only 2 left!

0

50

Cub Cadet 954-05129

V-BELT B-SEC x 113.4"

$109.99

$

In Stock, only 3 left!

0

51

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0

52

Cub Cadet 756-04489

SPINDLE PULLEY 7"

$42.99

$

In Stock, only 2 left!

0

53

Cub Cadet 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, only 4 left!

0

54

Cub Cadet 756-05176A

SPINDLE DRIVE PULLEY 8.347 DIA

$144.99

$

Usually ships in 3-6 days

0
