PRO Z 900 KW 972-SDL (53RLLMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2022) Brake Handle Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

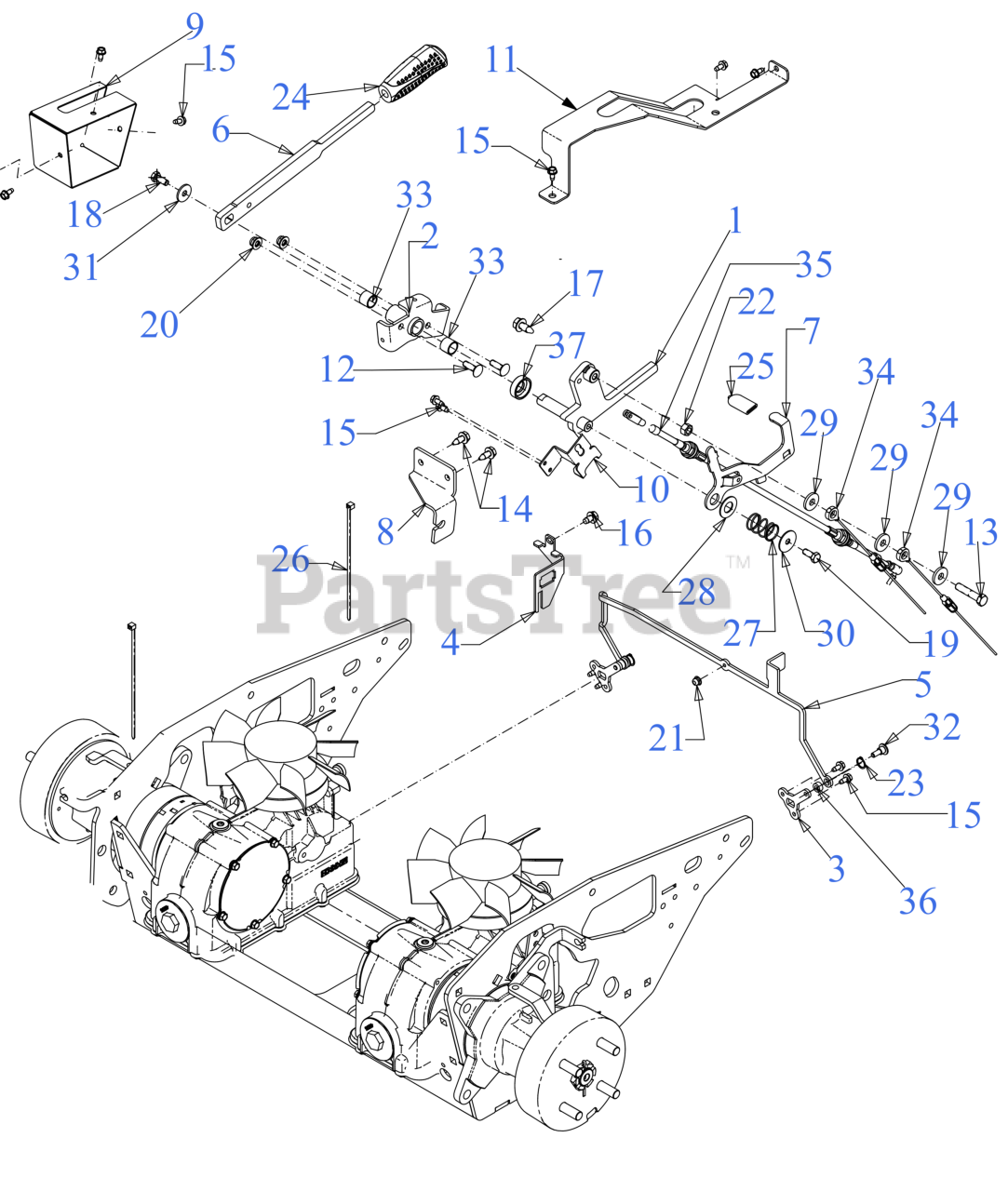

Brake Handle Parts Diagram

  • Title

1

Cub Cadet 680Z00435

BRAKE SHAFT PIVOT ASSEMBLY
(Superseded to 680E00435)

$81.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680E00436

PIVOT TUBE ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E09665

TRANSMISSION BYPASS LEVER

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E09701

NEUTRAL BRACKET - LAPBAR

Note: *CHOOSE COLOR WHEN ORDERING*

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E10073

DUMP VALVE ACCTUATOR BRACKET

$81.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10480A

PARKING BRAKE LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10480A-4021

PARKING BRAKE LEVE - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E10487A

DUMP VALVE RELEASE LEVER

$31.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703E10523A

LOWER CABLE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10540A

BRAKE LEVER PIVOT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10540A-4021

BRAKE LEVER PIVOT - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703E10920A

3-POLE SWITCH BRACKET

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-21667

DUMP LEVER COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$26.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

17

Cub Cadet 710-06335

HEX SCREW WASH TT 3/8-16 x .875

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04113

HEX NUT

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3017

HEX NUT

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 916-0114

SNAP RING FOR .562 DIA SHAFT

$6.99

$

In Stock, only 3 left!

0

24

Cub Cadet 720-04139B

GRIP

$18.99

$

In Stock, only 1 left!

0

25

Cub Cadet 720-0433

SEAT ADJUSTER GRIP

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

27

Cub Cadet 732-04481

COMPRESSION SPRING .844X.970X1.50

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0187

FLAT WASHER .640ID X1.24OD x .06

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, Qty 8

0

31

Cub Cadet 736-04117

FLAT WASHER 1.0 OD:.331 ID

$3.49

$

In Stock, Qty 10

0

32

Cub Cadet 738-0706D

SHOULDER SCREW .375X.280:1/4-14

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 741-04555

SLEEVE BEARING

$16.99

$

In Stock, only 2 left!

0

34

Cub Cadet 946-05103A

BRAKE CABLE

$42.99

$

In Stock, only 1 left!

0

35

Cub Cadet 946-05283A

NEUTRAL CONTROL CABLE

$125.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 5

0

37

Cub Cadet 750-06515

SPACER

$31.99

$

Usually ships in 3-6 days

0
