Cub Cadet PRO Z 900 KW 972-S (53RIHMAY050) - Cub Cadet 72" Pro Z Zero-Turn Mower, SurePath, Kawasaki (2022) Seat Parts Lookup with Diagrams

1

Cub Cadet 680E02751

ARMREST MOUNT (RH)

$67.99

$

Usually ships in 3-6 days

2

Cub Cadet 703-10261A

SEAT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$93.99

$

Usually ships in 3-6 days

3

Cub Cadet 703-10262

SEAT PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10262-4021

SEAT PIVOT BRACKET - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

$34.99

$

Usually ships in 3-6 days

4

Cub Cadet 703E10270

SEAT LATCH LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

5

Cub Cadet 703E10273

SEAT LOCKOUT BRACKET

$24.99

$

Usually ships in 3-6 days

6

Cub Cadet 703E10274

SEAT LOCKOUT MOUNT

$26.99

$

Usually ships in 3-6 days

7

Cub Cadet 703-10275

LOCKOUT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10275-4021

LOCKOUT BRACKET - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

$15.99

$

Usually ships in 3-6 days

8

Cub Cadet 703-10331

SEAT STABILIZER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10331-4021

SEAT STABILIZER PL - CUB YELLOW 2 (4021)

$39.99

$

Usually ships in 3-6 days

$32.99

$

Usually ships in 3-6 days

9

Cub Cadet 703E26776

PAD MOUNT PLATE

$32.99

$

Usually ships in 3-6 days

10

Cub Cadet 703E26777A

ARMREST BRACKET (RH)

$91.99

$

Usually ships in 3-6 days

11

Cub Cadet 703E26778

JOYSTICK COVER BRACKET

$21.99

$

Usually ships in 3-6 days

12

Cub Cadet 703E26882

ARMREST BRACKET

$28.99

$

Usually ships in 3-6 days

13

Cub Cadet 703E27564

ARMREST COVER PLATE

$3.99

$

Usually ships in 3-6 days

14

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

15

Cub Cadet 710-0166A

MACHINE SCREW 1/4-20:1

$7.49

$

In Stock, only 1 left!

16

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

17

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

18

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

19

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

20

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

21

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

22

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 17

23

Cub Cadet 710-1238A

SCREW 5/16-18 x .875 GR5 HXFLG HD

$4.49

$

In Stock, Qty 20+

24

Cub Cadet 710-3131

SCREW 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

25

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

26

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

27

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

28

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

29

Cub Cadet 712-05057

WING NUT 1/4-20

$5.49

$

In Stock, Qty 5

30

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

31

Cub Cadet 712-3008

HEX JAM NUT 3/8-16 GR5

$4.99

$

In Stock, Qty 16

32

Cub Cadet 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 20+

33

Cub Cadet 725P17093

JOYSTICK

$1294.99

$

Usually ships in 3-6 days

34

Cub Cadet 732-05392

TORSION SPRING

$6.49

$

Usually ships in 3-6 days

35

Cub Cadet 735-05128

SEAT MOUNT

$59.99

$

Usually ships in 3-6 days

36

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

37

Cub Cadet 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

38

Cub Cadet 736-3020

FLAT WASHER .271:.630:.065

$6.99

$

In Stock, Qty 9

39

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

In Stock, only 1 left!

40

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 6

41

Cub Cadet 738-0296

SHOULDER SCREW .437

$4.49

$

In Stock, Qty 20+

42

Cub Cadet 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

43

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

44

Cub Cadet 748-06906

JOYSTICK MOUNT

$74.99

$

Usually ships in 3-6 days

45

Cub Cadet 757-05867

SEAT (ELEC LUMBAR)

$1586.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-105678

ISO LEVER W/ROLL P

Note: (Not Shown)

$69.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-112653PS

AIR COMPRESSOR HARNESS

Note: (Not Shown)

$126.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-115349PS

TRACK KIT-7" HD SINGLE LOCK

Note: (Not Shown)

$153.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-183672

BELLOWS-W/HARDWARE

Note: (Not Shown)

$107.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-185451PS

AIR COMPRESSOR KIT

Note: (Not Shown)

$419.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-185453PS

AIR SPRING

Note: (Not Shown)

$160.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-185606VN1339

SET OF ARM PADS

Note: (Not Shown)

$136.99

$

In Stock, only 1 left!

45

Cub Cadet SI-185607VN1339

SET OF FRONT ADJUST ARMS PADDED

Note: (Not Shown)

$245.99

$

Usually ships in 3-6 days

45

Cub Cadet 757-05071A

SEAT KNOB KIT

Note: (Not Shown)

$52.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-310772PS

2" RETRACTABLE BELT KIT

Note: (Not Shown)

$182.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-312918PS

HOSE KIT WITH AIR VALVE

Note: (Not Shown)

$218.99

$

Usually ships in 3-6 days

45

Cub Cadet 726-3046

RATCHET CLIP .250

Note: (Not Shown)

$3.99

$

In Stock, Qty 15

45

Cub Cadet SI-313100VN1334

BACK COVER WITH LOGO

Note: (Not Shown)

$293.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-313101VN1334

CUSHION COVER

Note: (Not Shown)

$161.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-708884PS

AIR VALVE PADDLE TYPE

Note: (Not Shown)

$118.99

$

Usually ships in 3-6 days

45

Cub Cadet SI-783200PS

SEAT SWITCH NC/NO

Note: (Not Shown)

$51.99

$

Usually ships in 3-6 days

46

Cub Cadet 757P06095

ARMREST PAD

$139.99

$

Usually ships in 3-6 days

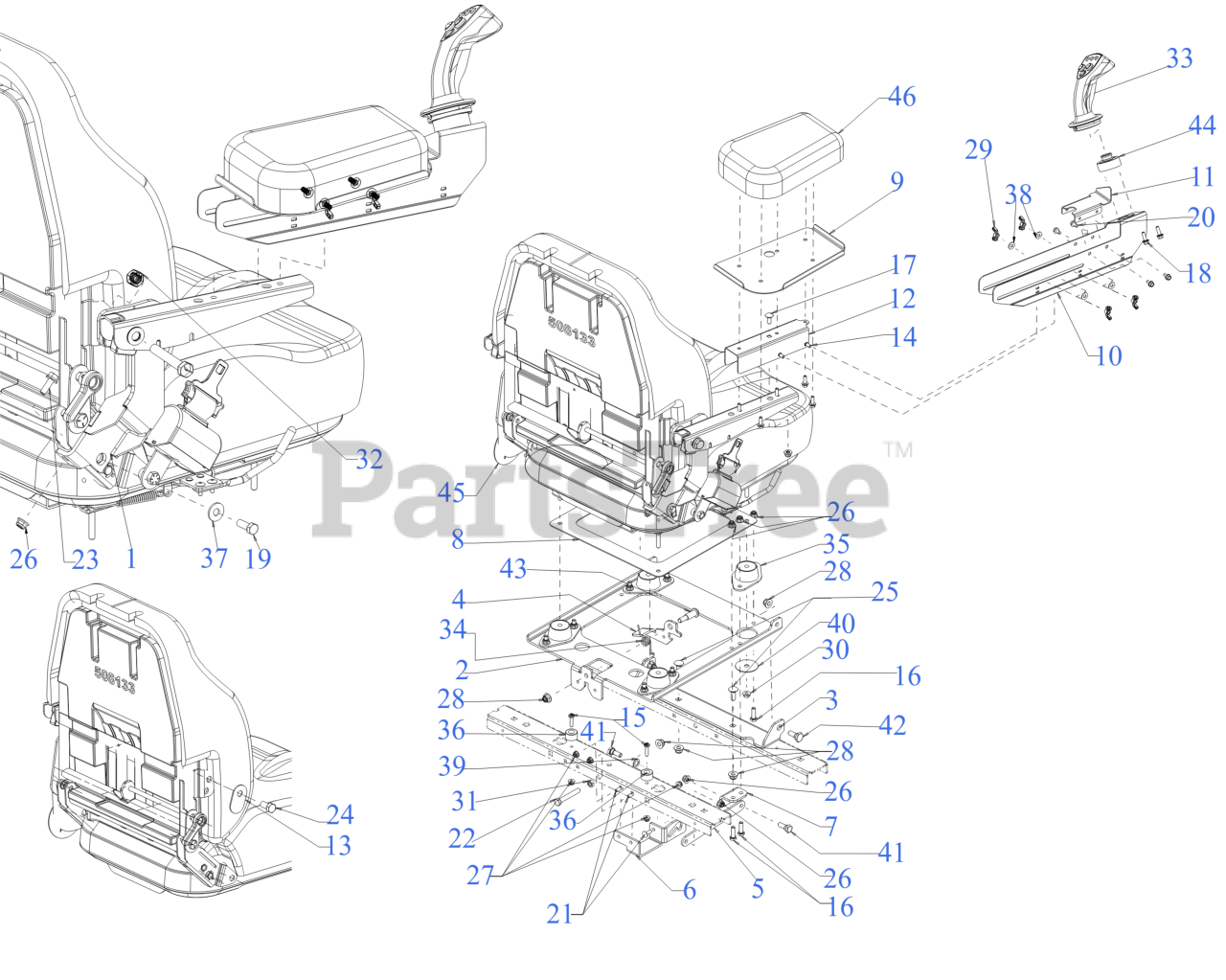

PRO Z 900 KW 972-S (53RIHMAY050) - Cub Cadet 72" Pro Z Zero-Turn Mower, SurePath, Kawasaki (2022) Seat Parts Diagram

Seat Parts Diagram
