PRO Z 900 KW 972-L (53TIHMTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2018) Deck Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

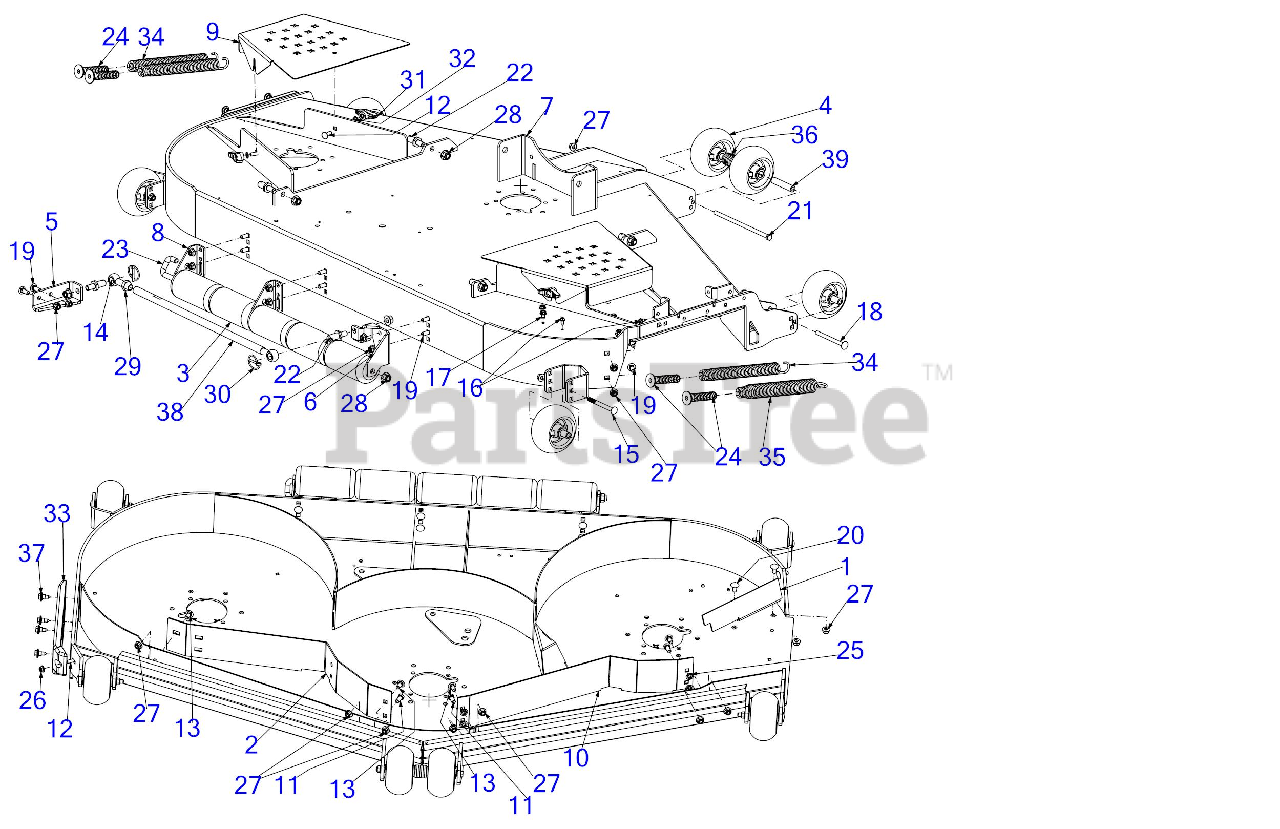

Deck Parts Diagram

  • Title

1

Cub Cadet 02005195-0637

CHUTE BAFFLE

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02005696-0637

BAFFLE - 72

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-05115

ROLLER ASSEMBLY

$26.99

$

In Stock, only 3 left!

0

3

Cub Cadet 741-0248

FLANGE BEARING

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-05451

5" DIA DECK WHEEL COMPLETE

$24.99

$

In Stock, Qty 5

0

4

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00452

STABILIZER MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00452-4021

STABILIZER MOUNTIN - CUB YELLOW 2 (4021)

$39.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00453

REAR ROLLER/STABILIZER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00453-4021

REAR ROLLER/STABIL - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00520

72" FAB DECK SHELL
(Superseded to 680-00520B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00520-4021

YELLOW DECK SHELL 72 - CUB YELLOW 2 (4021)

$1827.99

$

Usually ships in 3-6 days

0

$1700.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09137

REAR MOUNT BRACKET
(Superseded to 703-09137A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09137-0637

BRACKET-REAR MOUNT - POWDER BLACK (0637)

$23.99

$

In Stock, only 3 left!

0

Cub Cadet 703-09137-4021

BRACKET-REAR MOUNT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 3 left!

0

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10007

BELT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10007-4021

BELT COVER - CUB YELLOW 2 (4021)

$98.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10332

DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10332-4021

DECK BAFFLE - CUB YELLOW 2 (4021)

$62.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet 710-05355

BOLT 5/8-16 x 2.63

$17.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.49

$

In Stock, Qty 19

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

18

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

19

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3248

SCREW 3/8-16 x 8.5 GR5

$19.99

$

In Stock, only 2 left!

0

22

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

23

Cub Cadet 711-06561

REAR ROLLER PIN

$39.99

$

In Stock, only 1 left!

0

24

Cub Cadet 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

25

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

29

Cub Cadet 912-3015

HEX NUT
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

30

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

31

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 5

0

32

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 732-05476

EXTENTION SPRING 1.20 x 11.35

$34.99

$

In Stock, only 3 left!

0

35

Cub Cadet 732-05492

EXTENSION SPRING 1.44 OD X 11.36

$29.99

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0247

FLAT WASHER

$9.49

$

In Stock, Qty 15

0

37

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-06689

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 747-06689-4021

TUBE - CUB YELLOW 2 (4021)

$41.99

$

In Stock, only 4 left!

0

$35.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0
