PRO Z 900 KW 972-L (53RLHUTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Drive Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

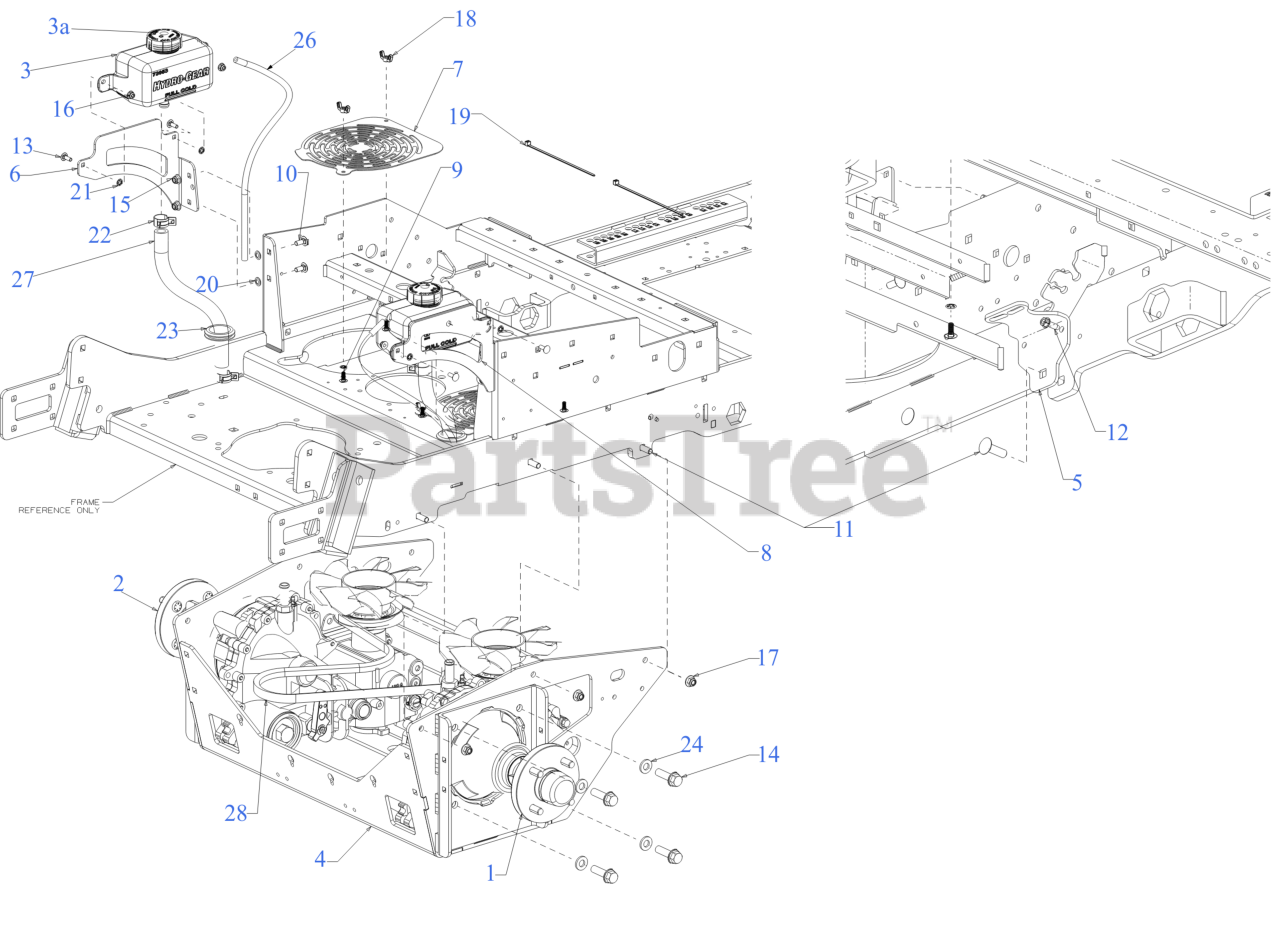

Drive Parts Diagram

  • Title
1

Cub Cadet 618P10064

HYDRO TRANSMISSION (RH)

Note: (See Separate Breakdown)

$2555.99

$

Usually ships in 0 days

0

2

Cub Cadet 618P10065

HYDRO TRANSMISSION (LH)

Note: (See Separate Breakdown)

$2555.99

$

Usually ships in 0 days

0

3

Cub Cadet 608057

1L EXPANSION TANK

$

$

Currently unavailable

3a

Cub Cadet HG-52375

CAP-EXPANSION TANK

$19.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-02783A

SUB FRAME BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$746.99

$

Usually ships in 0 days

0

5

Cub Cadet 703E28740

LAPBAR DAMPER MOUNT BRACKET

$19.99

$

Usually ships in 0 days

0

6

Cub Cadet 703-28772

TANK MOUNT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 0 days

0

7

Cub Cadet 703E28791

TRANSMISSION COVER PLATE

$32.99

$

Usually ships in 0 days

0

8

Cub Cadet 703-28795

TANK MOUNT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 0 days

0

9

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3067A

FLANGE BOLT 1/2-13:1.75:GR5

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-05057

WING NUT 1/4-20

$5.49

$

In Stock, Qty 5

0

19

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

20

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0326

FLAT WASHER .510 x 1.000 x .125

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 751-12089-45

VENT HOSE 3/16 ID 45"LG

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-22787

OIL HOSE 5/8 ID X 12.5 LG

$25.99

$

Usually ships in 0 days

0

28

Cub Cadet 754P07149

V-BELT 66.34"

$64.99

$

Usually ships in 0 days

0
