PRO Z 900 KW 960-S (53RIHMAV050) - Cub Cadet 60" Pro Z Zero-Turn Mower, SurePath, Kawasaki (2021) Drive Parts Diagram

60" Pro Z Zero-Turn Mower, SurePath, Kawasaki

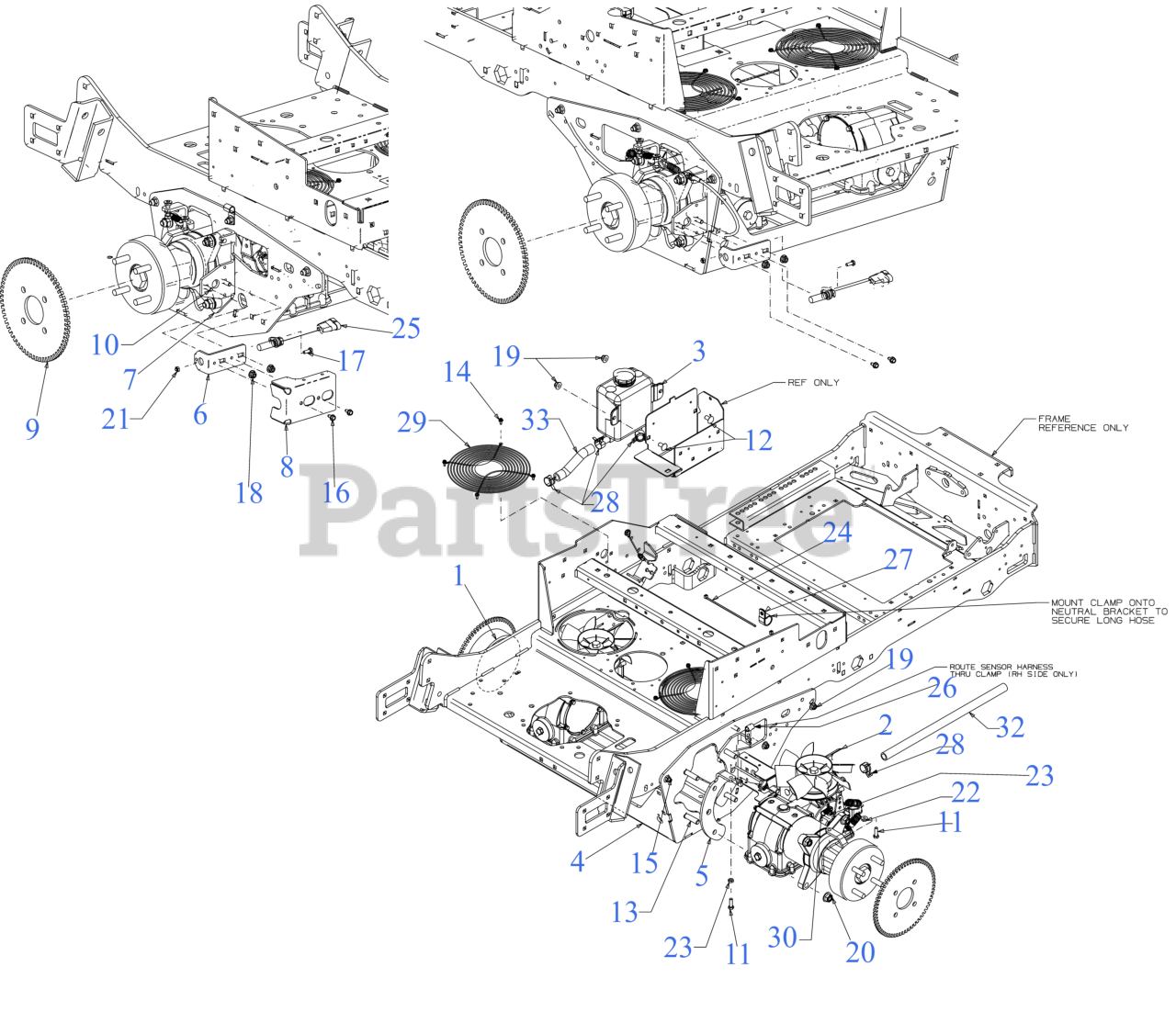

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07198A

TRANSMISSION ASSEMBLY PARKER (LH)

Note: (See Separate Breakdown)

$3220.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07199A

TRANSMISSION ASSEMBLY PARKER (RH)

Note: (See Separate Breakdown)

$3220.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-05313

HYDRO TANK ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00358E

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$472.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10071

BRAKE SPRING MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10071-4021

BRAKE SPRING MOUNT - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-26754

WHEEL SENSOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-26756

BRAKE SENSOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-26757

WHEEL SENSOR COVER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703E26829

WHEEL SENSOR SPACER

$69.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

13

Cub Cadet 710-04191

CARRIAGE BOLT 1/2-13 GR5

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet 710-04460

SCREW 10-24 x 0.500

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1690

SCREW

$2.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0691

HEX NUT

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

24

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet 725-17092

WHEEL SPEED SENSOR

$224.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-04833

FAN COVER

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-15380

OIL HOSE 5/8 ID x 18.00 LG

$48.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-15421

HOSE

$18.99

$

Usually ships in 3-6 days

0
