PRO Z 900 EFI 960-S (53REHMUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kohler EFI (2016) Front Axle Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kohler EFI

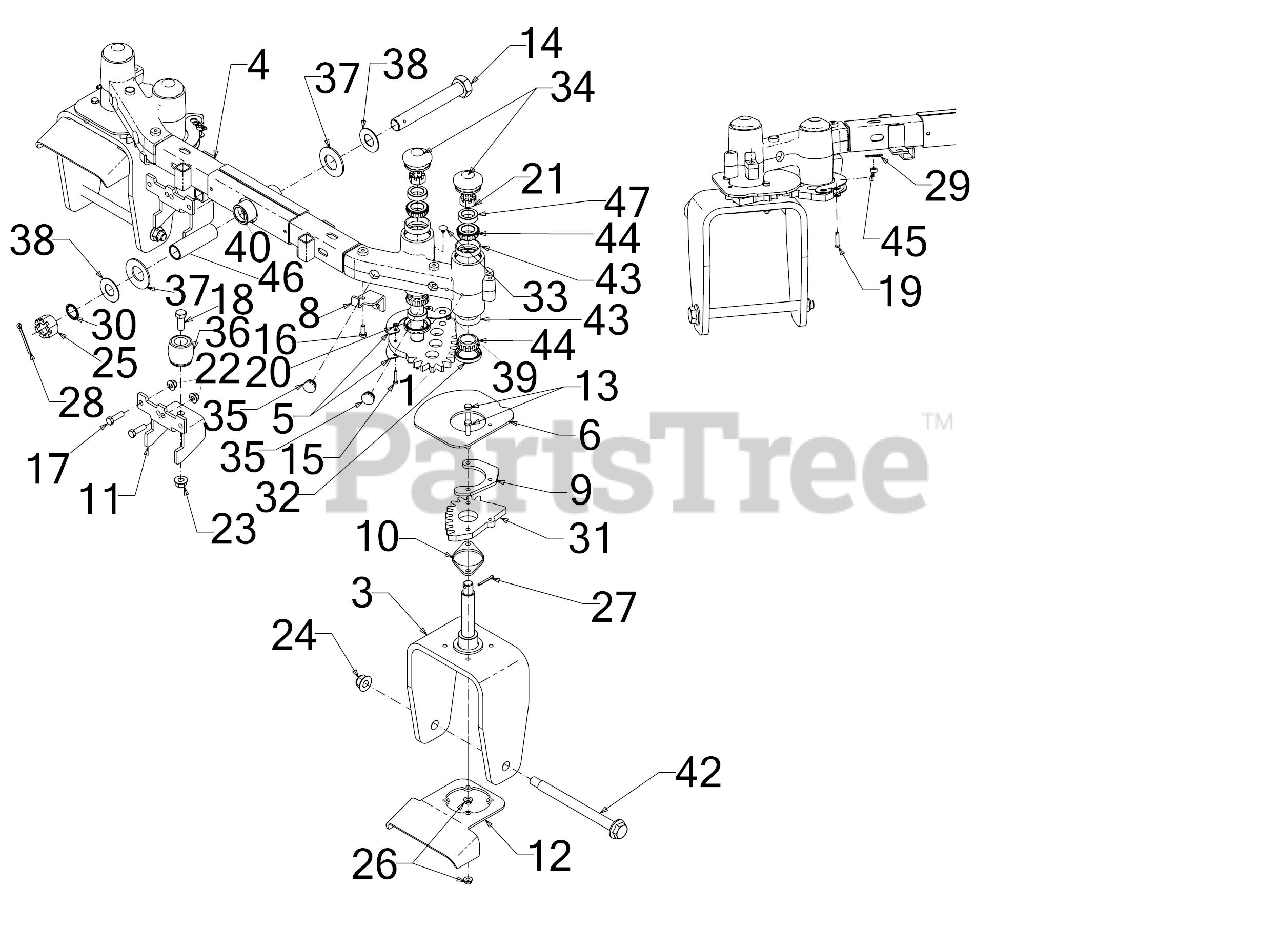

Front Axle Parts Diagram

  • Title

1

Cub Cadet 980-00154

STEERING GEAR (LH)

$149.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 980-00155

STEERING GEAR (RH)

Note: (Not Shown)

$149.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00417-4021

FRONT YOKE ASSEMBLY (STEERING)
(Superseded to 680-00417A-4021)

$229.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00472

AXLE ASSEMBLY

Variations

Cub Cadet 680-00472-4021

AXLE ASSEMBLY - CUB YELLOW 2 (4021)

$717.99

$

Usually ships in 3-6 days

0

$624.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10040-0637

CABLE GEAR MOUNTING BRACKET
(Superseded to 703E10040)

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10352-4021

GEAR COVER

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10386-4021

CABLE MOUNTING BRACKET (LH)
(Superseded to 703-10386A-4021)

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10387-4021

CABLE MOUNTING BRACKET (RH)
(Superseded to 703-10387A-4021)

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10389-4021

GEAR SPACER PLATE

$14.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-10546

LOWER GEAR SPACER PLATE

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10636-4021

BUMPER MOUNTING BRACKET
(Superseded to 703-10636A-4021)

$56.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10929

WHEEL DEFLECTOR BRACKET

Variations

Cub Cadet 703-10929-4021

WHEEL DEFLECTOR BR - CUB YELLOW 2 (4021)

$62.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-05189B

HEX HEAD SCREW 1-14 X 7 GR5
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-1194

SCREW #10-24 x 1.00 GR5.1

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$6.99

$

In Stock, Qty 13

0

20

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 14

0

25

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$31.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

29

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

30

Cub Cadet 716-04191

RETAINING RING

$3.99

$

In Stock, only 3 left!

0

31

Cub Cadet 917-04822

STEERING GEAR YOKE

$71.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 721-04462

SEAL

$10.99

$

In Stock, Qty 11

0

33

Cub Cadet 726-04072A

RATCHET CLIP

$3.99

$

In Stock, Qty 13

0

34

Cub Cadet 731-07348

AXLE GREASE CAP

$8.99

$

In Stock, only 2 left!

0

35

Cub Cadet 735-0246A

END PLUG

$5.99

$

In Stock, only 1 left!

0

36

Cub Cadet 735-05159

AXIAL BUMPER

$49.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-04604

BELL WASHER 1.25ID x 2.5 x .180

$8.49

$

In Stock, only 2 left!

0

38

Cub Cadet 736-04605

FLAT WASHER 1.0 x 2.0 x .075

$4.49

$

In Stock, Qty 12

0

39

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 6

0

40

Cub Cadet 737-04352

GREASE FITTING

$15.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-05173

SHOULDER BOLT .750 X 8.175:5/8-11

$41.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 741-04548

BEARING CUP

$8.99

$

In Stock, Qty 14

0

44

Cub Cadet 741-04549

BEARING CONE

$19.99

$

In Stock, Qty 14

0

45

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 750-05438

SPACER

$25.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-05600

SPACER

$7.49

$

In Stock, only 1 left!

0
