PRO Z 900 EFI 960-S (53REHMUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kohler EFI (2016) Drive Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kohler EFI

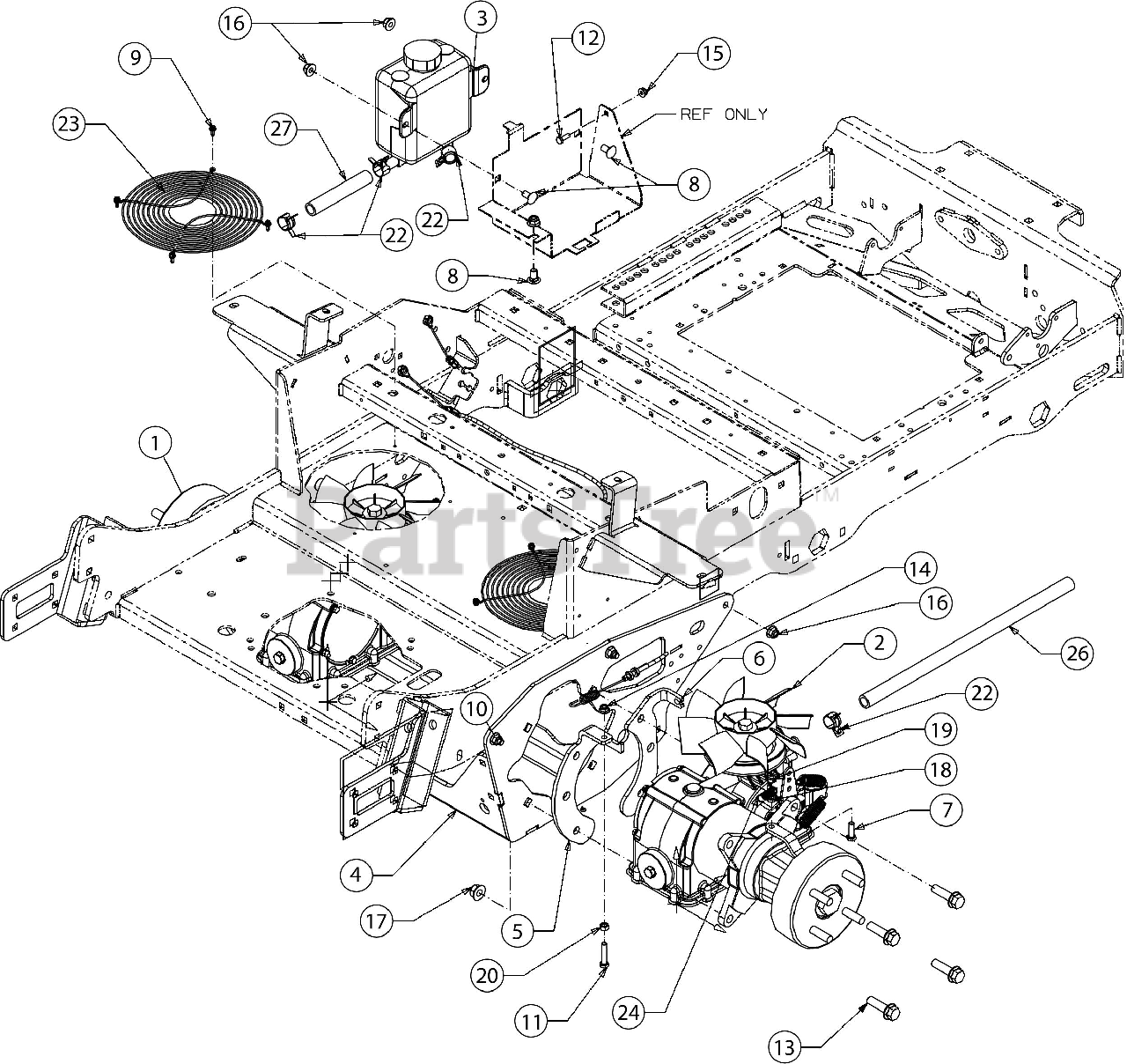

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07198

TRANSMISSION ASSEMBLY PARKER (LH)
(Superseded to 918-07198A)

$3220.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07199

TRANSMISSION ASSEMBLY PARKER (RH)
(Superseded to 918-07199A)

$3220.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-05313

HYDRO TANK ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00358A-4021

TRANSMISSION MOUNTING BRACKET ASSEMBLY
(Superseded to 680-00358E-4021)

$584.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10071-4021

BRAKE SPRING MOUNTING BRACKET

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10072-4021

BRAKE CABLE MOUNTING BRACKET

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet 1767754

SCREW 10-24 x 0.500
(Superseded to 710-04460)

$

$

Not available

10

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3067

BOLT-1/2-13X1.75LG

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

20

Cub Cadet 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04833

FAN COVER

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-15380

OIL HOSE 5/8 ID X 18.00 LG

$48.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-15381

OIL HOSE 5/8 ID X 5.00 LG

$7.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

7" CABLE TIE

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0
