PRO Z 700 KW 772-S (53RIHKUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Steering Column Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

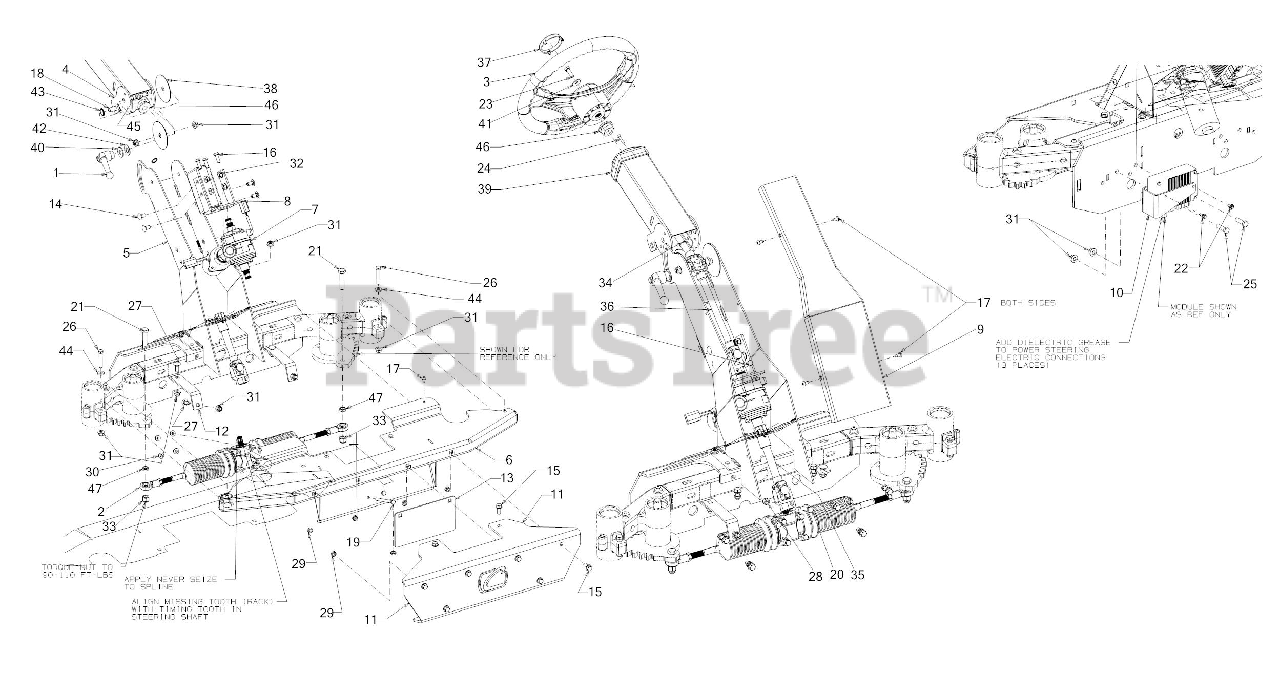

Steering Column Parts Diagram

  • Title
1

Cub Cadet 02005058

LEVER - ADJ STEERING

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 917-04088

STEERING GEARBOX
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

3

Cub Cadet 631-04008B

STEERING WHEEL

$94.99

$

In Stock, only 3 left!

0

4

Cub Cadet 680-00195-4021

UPPER PIVOT COLUMN

$155.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00418-4021

COLUMN BASE ASSEMBLY

$144.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00419-4021

FRONT BUMPER ASSEMBLY

$

$

Not available

7

Cub Cadet 980-00458

POWER STEERING ASSEMBLY
(Superseded to 980-00458A)

$1981.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-06825

POWER STEERING CONTROL MODULE

Note: (Not Shown)

$866.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08626-4021

POWER STEERING MOUNT
(Superseded to 703E08626A)

$67.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10358-4021

FRONT COLUMN COVER

$60.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10555A-4021

STEERING MODULE MOUNTING BRACKET

$39.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10637-4021

FRONT BUMPER UPPER COVER

$83.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10662-4021

RACK MOUNTING PLATE

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-10749-4021

FRONT BUMPER BACKING PLATE

$15.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04629

SCREW M8-1.25 x 25 GR8.8

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 710-05375

CARRIAGE BOLT 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-05410

SCREW 5/16-18 x 4.00 GR5

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-06021

SCREW 3/8-16 x 1.50 GR8

$3.99

$

In Stock, Qty 13

0

21

Cub Cadet 710-06059

SCREW 1/2-20 x 2.25

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

23

Cub Cadet 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

24

Cub Cadet 710-1331

SCREW #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0130

HEX NUT INS L-3/8-16

$3.99

$

In Stock, Qty 11

0

29

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-05022

HEX NUT 1/2-20 GR8 NYLON

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 916-0171

RETAINING RING

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 917-04872

STEERING SHAFT
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

36

Cub Cadet 917-04905

STEERING SHAFT

$228.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-04039

STEERING WHEEL CAP

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-08236

COLUMN PLATE

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 731-11491

STEERING COLUMN COVER
(Superseded to 731-11491A)

$14.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 936-0179

FLAT WASHER
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0760

LOCK WASHER

$4.49

$

In Stock, Qty 13

0

44

Cub Cadet 736-3010

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 948-0209

FLANGE BEARING

$22.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0
