PRO Z 700 KW 772-L (53TIHKTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2021) Seat Mounting Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

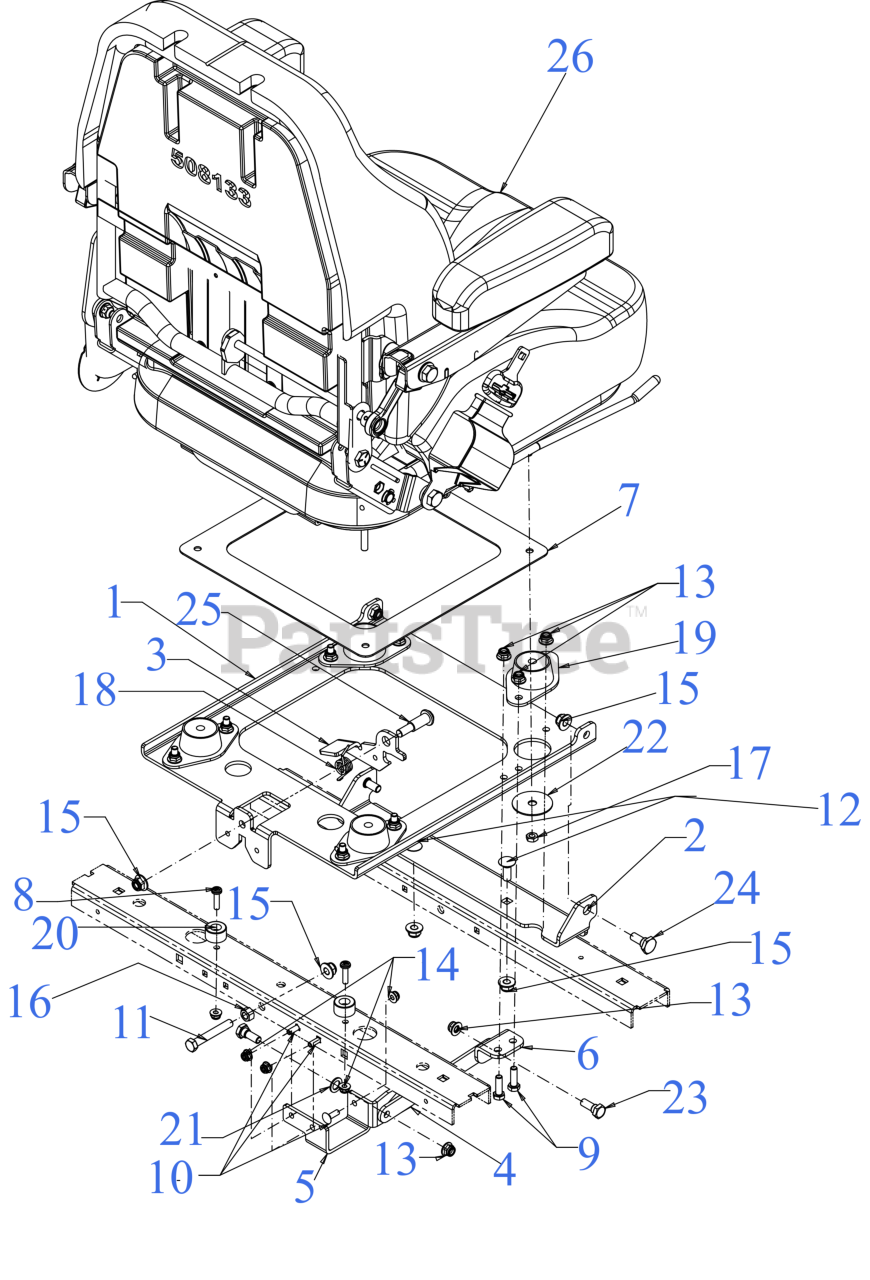

Seat Mounting Parts Diagram

  • Title

1

Cub Cadet 703-10261A

SEAT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$93.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10262

SEAT PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10262-4021

SEAT PIVOT BRACKET - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E10270

SEAT LATCH LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E10273

SEAT LOCKOUT BRACKET

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E10274

SEAT LOCKOUT MOUNT

$26.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10275

LOCKOUT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10275-4021

LOCKOUT BRACKET - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10331

SEAT STABILIZER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10331-4021

SEAT STABILIZER PL - CUB YELLOW 2 (4021)

$39.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0166A

MACHINE SCREW 1/4-20:1

$7.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

12

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 16

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-3017

HEX NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3046

HEX NUT TOP LOCK 5/16-18 GR 8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-05392

TORSION SPRING

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 735-05128

SEAT MOUNT

$59.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

23

Cub Cadet 738-0296

SHOULDER SCREW .437

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

26

Cub Cadet 757-05066A

SEAT ASSEMBLY (W/ADJUSTABLE LUMBAR)

Note: (See Separate Breakdown)

$1196.99

$

Usually ships in 3-6 days

0
