PRO Z 700 KW 772-L (53TIHKTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2020) Electrical Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

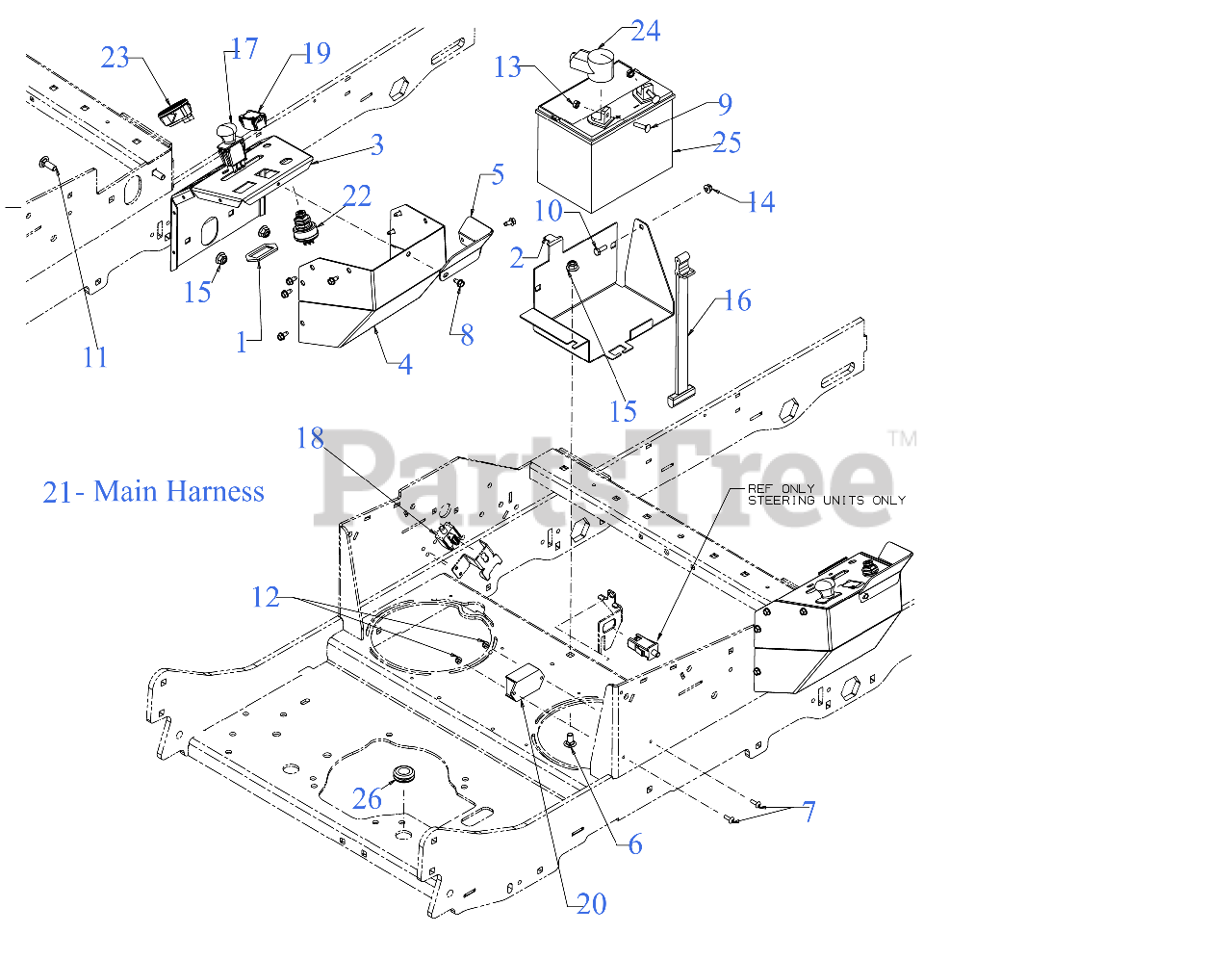

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10064

BATTERY MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10064-4021

BATTERY MOUNTING B - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10875B

CONTROL POD (RH)
(Superseded to 703-10875C)

Note: *CHOOSE COLOR WHEN ORDERING*

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10877

CONTROL POD COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10877-4021

CONTROL POD COVER - CUB YELLOW 2 (4021)

$60.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10967

THROTTLE DEFLECTOR

Variations

Cub Cadet 703-10967-4021

THROTTLE DEFLECTOR - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0425

SCREW #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

10

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$29.99

$

In Stock, only 4 left!

0

17

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, only 2 left!

0

18

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$49.99

$

In Stock, only 3 left!

0

19

Cub Cadet 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-06308

CONTROL PANEL (SOFT CLUTCH)

$308.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-06712C

WIRE HARNESS ASSEMBLY KOH/KAW EFI
(Superseded to 725-06712D)

$172.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 925-06854

KEY SWITCH (3 POSITION)

$138.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 925-06908

PRO-Z KEY SET

Note: (Not Shown)

$37.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 925-06855

DUAL FUEL GAUGE

$105.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-11365

BATTERY BOOT

Note: (If Equipped)

$8.49

$

Usually ships in 3-6 days

0

25

Purchase Battery Locally

Note: Service Battery is No Longer Available

$

$

Not available

25

Cub Cadet 925-1707D

BATTERY

$

$

Not available

26

Cub Cadet 735-04285

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 725P15145

JUMPER HARNESS (W/RELAY)

Note: (Not Shown)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-05904

BATTERY CABLE BRACKET KIT

$43.99

$

Usually ships in 3-6 days

0
