PRO Z 700 KW 772-L (53TIHKTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2019) Engine Accessories Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

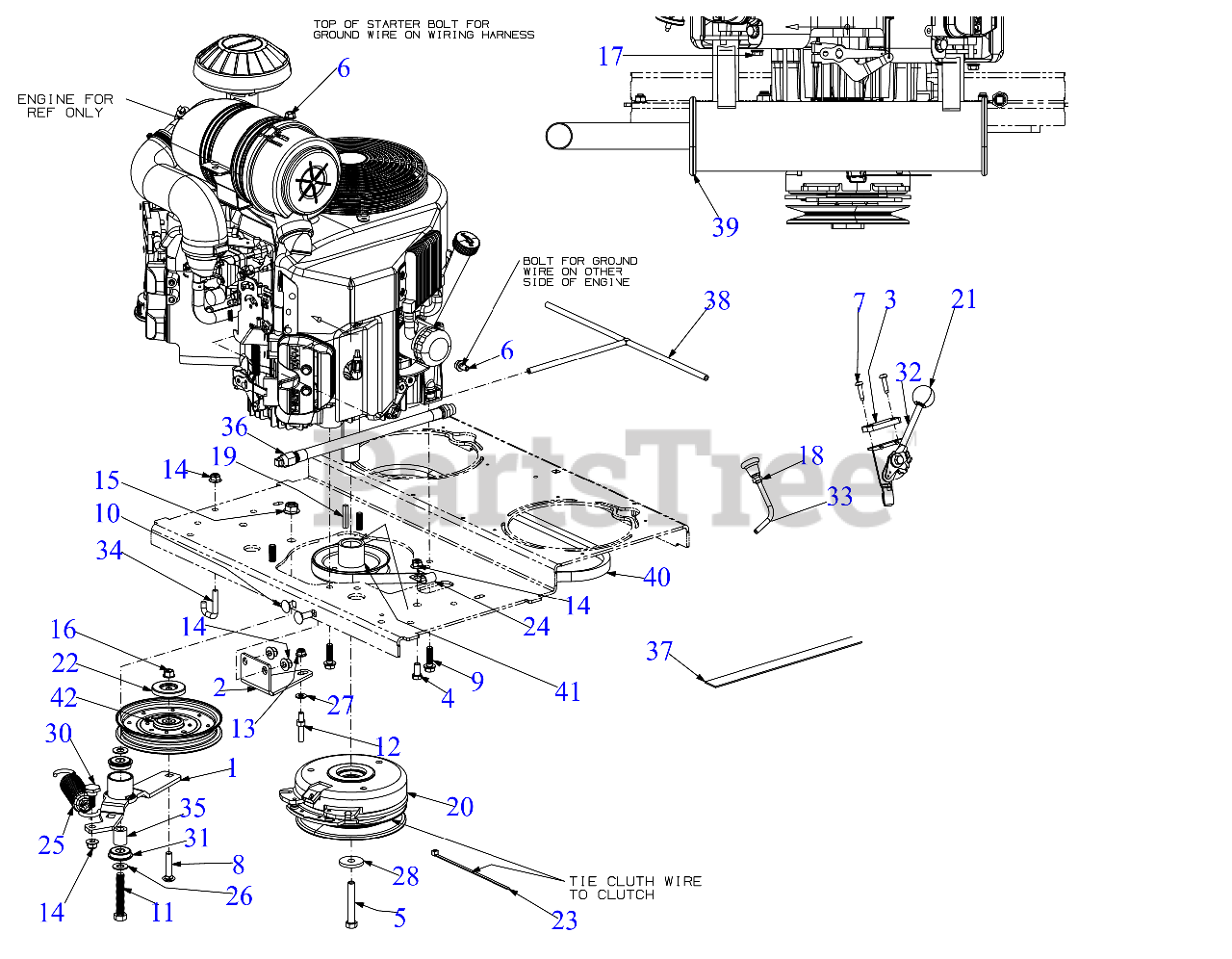

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 680-00550A

TRANSMISSION IDLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$54.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08607

RETAINER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08607-4021

BRACKET-RETAINER C - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08607-0637

BRACKET-RETAINER - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10399A

THROTTLE CABLE SPACER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10399A-0637

BLACK SPACERTHROTLE C - POWDER BLACK (0637)

$7.49

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-06359

SCREW 3/8-16 x 1.25 GR5
(Superseded to 710-06359A)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3230

SCREW 1/2-13 x 2.75 GR5

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-1637

STUD

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, only 3 left!

0

18

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.99

$

In Stock, only 4 left!

0

20

Cub Cadet 717P05316A

ELECTRIC PTO CLUTCH
(Superseded to 717P05316B)

$743.99

$

In Stock, Qty 5

0

20

Cub Cadet 725-06019

CLUTCH HARNESS 11.625

$31.99

$

In Stock, only 4 left!

0

21

Cub Cadet 720-05110

BALL KNOB

$22.99

$

In Stock, only 3 left!

0

22

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

23

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

24

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-05446

EXTENSION SPRING W/HOOK
(Superseded to 732-05446A)

$22.99

$

In Stock, only 2 left!

0

26

Cub Cadet 936-0272

FLAT WASHER .510X.995
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

28

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

30

Cub Cadet 738-1126

SHOULDER SCREW .625 x .302 x 3/8-16

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

32

Cub Cadet 946-05260

THROTTLE CABLE 59"

$83.99

$

In Stock, only 2 left!

0

33

Cub Cadet 946-05341A

CHOKE CABLE
(Superseded to 946-05341B)

$69.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-05707

ROD SPRING HOOK

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

36

Cub Cadet 751-10291C

OIL DRAIN HOSE

$52.99

$

In Stock, only 2 left!

0

37

Cub Cadet 751-11232A-24

HEAT SHIELD 24"

$94.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751-12282A

ROLLOVER VENT HOSE ASSEMBLY

$75.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-15273

MUFFLER - KAWASAKI 1000

$215.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 954-05037

BELT 61.5"
(Superseded to 954-05037A)

$47.99

$

In Stock, only 1 left!

0

41

Cub Cadet 756-04382

PULLEY - PUMP DRIVE

$50.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0

Cub Cadet NS

OIL:SAE 10W30

$

$

Currently unavailable
