PRO Z 700 KW 772-L (53RIHTTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2024) Transmission (LH) Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

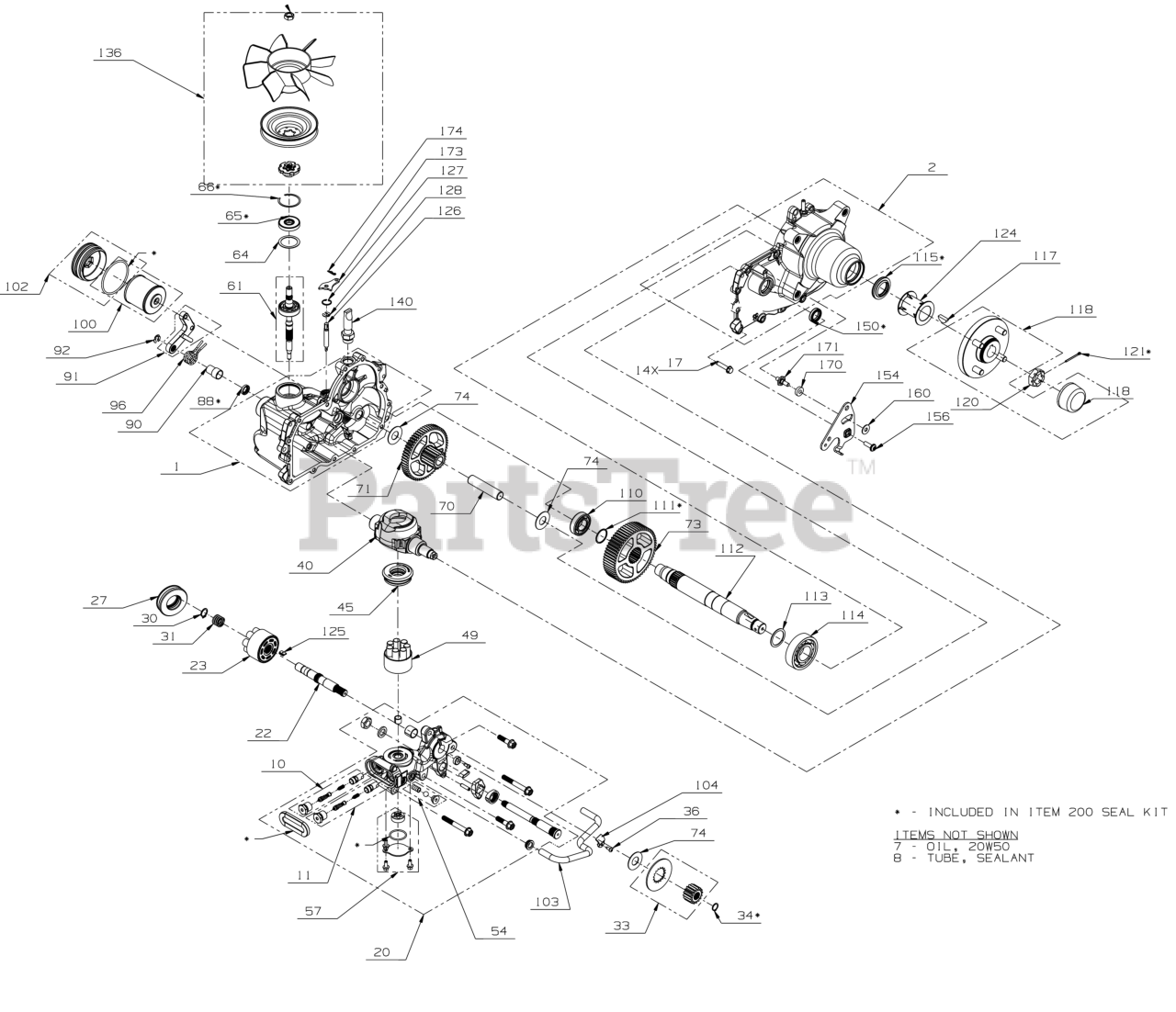

Transmission (LH) Parts Diagram

  • Title

1

Cub Cadet HG-72518

MAIN HOUSING (LH) KIT

$361.99

$

Usually ships in 0 days

0

2

Cub Cadet HG-73112

SIDE HOUSING (LH) KIT

$226.99

$

Usually ships in 0 days

0

7

OIL, 20W50

$

$

Not available

8

Cub Cadet HG-50928

SEALANT-HOUSING

$103.99

$

In Stock, Qty 8

0

10

Cub Cadet HG-72569

SHOCK VALVE KIT

$45.99

$

Usually ships in 0 days

0

11

Cub Cadet HG-72569

SHOCK VALVE KIT

$45.99

$

Usually ships in 0 days

0

17

Cub Cadet HG-53987

HOUSING SCREW

$1.99

$

Usually ships in 0 days

0

20

Cub Cadet HG-73442

CENTER SECTION (LH) KIT

$450.99

$

Usually ships in 0 days

0

22

Cub Cadet HG-54053

MOTOR SHAFT

$66.99

$

Usually ships in 0 days

0

23

Cub Cadet HG-72897

16CC CYLINDER BLOCK KIT

$72.99

$

Usually ships in 0 days

0

27

Cub Cadet HG-52991

THRUST BEARING

$35.99

$

Usually ships in 0 days

0

30

Cub Cadet HG-53676

RETAINING RING

$0.99

$

Usually ships in 0 days

0

31

Cub Cadet HG-2000025

SPRING-BLOCK

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-72725

BRAKE ROTOR GEAR KIT

$18.99

$

Usually ships in 0 days

0

34

Cub Cadet HG-44145

RETAINING RING

Note: PART INCLUDED IN REF #200 SEAL KIT

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet HG-50653

SCREW-SELF TAPPING

$2.99

$

Usually ships in 3-6 days

0

40

Cub Cadet HG-52972

16CC MACHINED SWASHPLATE

$86.99

$

Usually ships in 0 days

0

45

Cub Cadet HG-54032

THRUST BEARING

$31.99

$

Usually ships in 0 days

0

49

Cub Cadet HG-71971

BLOCK KIT-CYLINDER

$99.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-72527

CHARGE RELIEF KIT

$6.99

$

Usually ships in 0 days

0

57

Cub Cadet HG-72526

CHARGE PUMP KIT

$52.99

$

Usually ships in 0 days

0

61

Cub Cadet HG-72523

INPUT SHAFT KIT

$119.99

$

Usually ships in 0 days

0

64

Cub Cadet HG-2000023

SPACER

$8.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-51092

LIP SEAL

Note: PART INCLUDED IN REF #200 SEAL KIT

$17.99

$

Usually ships in 3-6 days

0

66

Cub Cadet HG-54352

INTERNAL RETAINING RING 1.875

Note: PART INCLUDED IN REF #200 SEAL KIT

$3.99

$

Usually ships in 0 days

0

70

Cub Cadet HG-54079

JACK SHAFT .78 X 3.63

$28.99

$

Usually ships in 0 days

0

71

Cub Cadet HG-72522

GEARS KIT

$95.99

$

Usually ships in 0 days

0

73

Cub Cadet HG-54037

GEAR 62T

$79.99

$

Usually ships in 0 days

0

74

Cub Cadet HG-54078

FLAT WASHER .80 X 1.70 X .05

$2.49

$

Usually ships in 0 days

0

88

Cub Cadet HG-53015

BRAKE SEAL
(Superseded to HG-55232)

Note: PART INCLUDED IN REF #200 SEAL KIT

$4.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-54367

SPRING SPACER

$2.99

$

Usually ships in 0 days

0

91

Cub Cadet HG-72524

LH BRAKE KIT

$16.99

$

Usually ships in 0 days

0

92

Cub Cadet HG-53019

RETAINING RING

$2.49

$

In Stock, only 1 left!

0

96

Cub Cadet HG-53898

TORSION SPRING

$7.99

$

Usually ships in 0 days

0

100

Cub Cadet HG-72537

FILTER KIT

$29.99

$

In Stock, only 1 left!

0

102

Cub Cadet HG-72536

FILTER CAP KIT

$20.99

$

Usually ships in 0 days

0

103

Cub Cadet HG-54224

FILTER TUBE-LH

$15.99

$

Usually ships in 0 days

0

104

Cub Cadet HG-54085

TUBE CLAMP

$1.99

$

Usually ships in 0 days

0

110

Cub Cadet HG-53656

BALL BEARING

$17.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-54219

RETAINING RING 1.25

Note: PART INCLUDED IN REF #200 SEAL KIT

$1.49

$

Usually ships in 0 days

0

112

Cub Cadet HG-54275

AXLE SHAFT

$191.99

$

Usually ships in 0 days

0

113

Cub Cadet HG-53006

FLAT WASHER 1.40 X 1.75 X .05

$3.99

$

Usually ships in 0 days

0

114

Cub Cadet HG-53007

BALL BEARING 35 X 80 X 21

$31.99

$

Usually ships in 0 days

0

115

Cub Cadet HG-53008

LIP SEAL 1.375 X 2.062 X .250

Note: PART INCLUDED IN REF #200 SEAL KIT

$8.49

$

Usually ships in 0 days

0

117

Cub Cadet HG-51796

WOODRUFF KEY 5/16 X 1

$5.99

$

Usually ships in 0 days

0

118

Cub Cadet HG-72101

4 BOLT HUB KIT

$134.99

$

Usually ships in 0 days

0

120

Cub Cadet HG-51821

SLOTTED 1-20 NUT

$16.99

$

Usually ships in 0 days

0

121

Cub Cadet HG-51822

COTTER PIN 9/64 X 1.5

Note: PART INCLUDED IN REF #200 SEAL KIT

$1.99

$

Usually ships in 0 days

0

124

Cub Cadet HG-53367

AXLE TUBE 1.40 X 2.22

$3.99

$

Usually ships in 0 days

0

125

Cub Cadet HG-54738

BYPASS PLATE

$1.99

$

Usually ships in 3-6 days

0

126

Cub Cadet HG-54306

BYPASS ROD

$21.99

$

Usually ships in 0 days

0

127

Cub Cadet HG-51627

RETAINING RING

$4.49

$

Usually ships in 3-6 days

0

128

Cub Cadet HG-51628

RETAINING RING

$4.49

$

In Stock, Qty 9

0

136

Cub Cadet HG-73526

FAN/PULLEY KIT

$50.99

$

Usually ships in 0 days

0

140

Cub Cadet HG-53037

STRAIGHT FITTING 7/8 SAE

$33.99

$

Usually ships in 0 days

0

150

Cub Cadet HG-52989

LIP SEAL 22 X 32 X 7 TC

Note: PART INCLUDED IN REF #200 SEAL KIT

$3.99

$

Usually ships in 0 days

0

154

Cub Cadet HG-51842

ARM-CONTROL (LH)

$14.99

$

In Stock, only 1 left!

0

156

Cub Cadet HG-51812

SCREW 5/16

$4.49

$

Usually ships in 3-6 days

0

160

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, only 2 left!

0

170

Cub Cadet HG-52298

PLASTIC WASHER .32 X .80 X .21

$1.99

$

Usually ships in 0 days

0

171

Cub Cadet HG-50426

STUD-SHORT

$14.99

$

Usually ships in 3-6 days

0

173

Cub Cadet HG-56171

BYPASS ARM

$3.99

$

Usually ships in 0 days

0

174

Cub Cadet HG-56195

HAIRPIN COTTER PIN

$0.99

$

Usually ships in 0 days

0

200

Cub Cadet HG-72528

SEAL KIT

$

$

Not available

*

PARTS INCLUDED IN REF #200 SEAL KIT

$

$

Not available

Cub Cadet 618P10061

TRANSMISSION (LH)

$2514.99

$

Usually ships in 0 days

0
