PRO Z 700 KW 772-L (53RIHKTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Drive Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

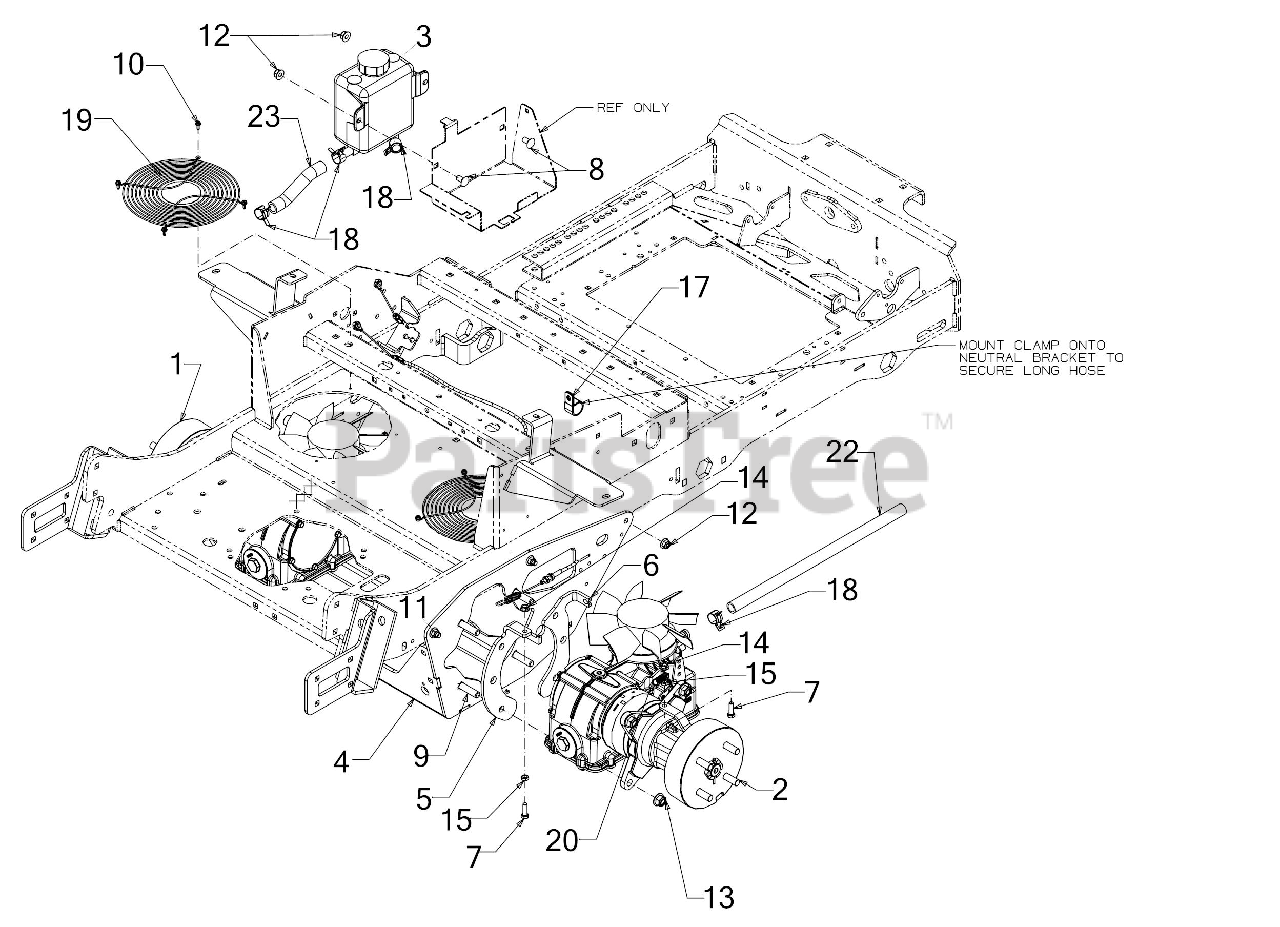

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07134

TRANSMISSION ASSEMBLY PARKER (LH)
(Superseded to 918-07134B)

Note: (See Separate Breakdown)

$2724.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07135

TRANSMISSION ASSEMBLY PARKER (RH)
(Superseded to 918-07135B)

Note: (See Separate Breakdown)

$2724.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-05313

HYDRO TANK ASSEMBLY

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00358B-4021

TRANSMISSION MOUNTING BRACKET ASSEMBLY
(Superseded to 680-00358E-4021)

$584.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10071-4021

BRAKE SPRING MOUNTING BRACKET

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10072-4021

BRAKE CABLE MOUNTING BRACKET

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet 710-04191

CARRIAGE BOLT 1/2-13 GR5

$3.49

$

In Stock, only 2 left!

0

10

Cub Cadet 1767754

SCREW 10-24 x 0.500
(Superseded to 710-04460)

$

$

Not available

11

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04833

FAN COVER

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 751-15380

OIL HOSE 5/8 ID X 18.00 LG

$48.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 751-15421

HOSE

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

7" CABLE TIE

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0
