PRO Z 700 KW 760-S (53UIHTUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Fuel Tank Mounting Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

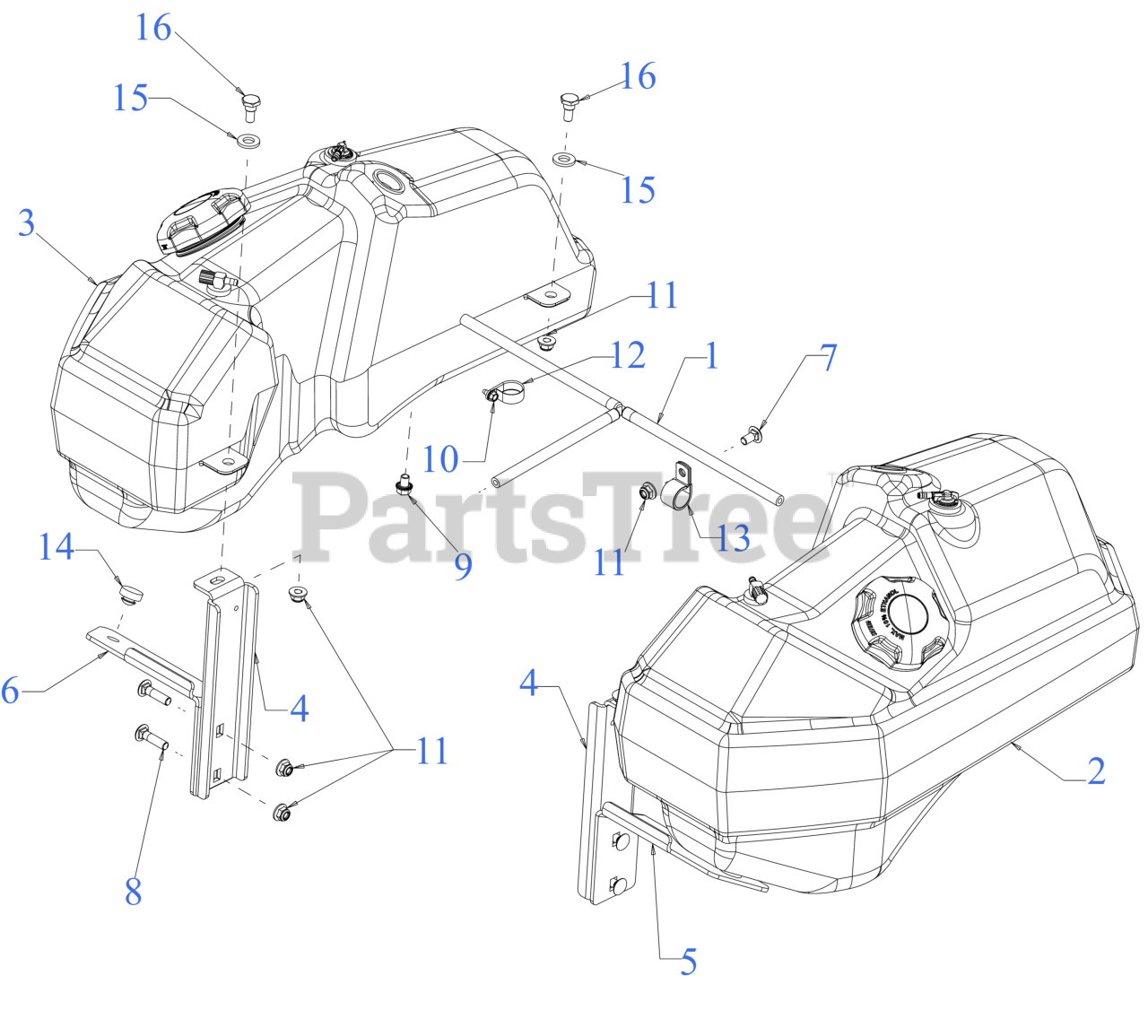

Fuel Tank Mounting Parts Diagram

  • Title

1

Cub Cadet 651-05381A

FUEL LINE ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-04123A

HOSE CLAMP

Note: (Not Shown)

$3.99

$

In Stock, Qty 6

0

2

Cub Cadet 651-08768

FUEL TANK (RH) (7.25)

Note: (See Separate Breakdown)

$514.99

$

Usually ships in 0 days

0

3

Cub Cadet 651-08769

FUEL TANK (LH) (7.25)

Note: (See Separate Breakdown)

$514.99

$

Usually ships in 0 days

0

4

Cub Cadet 703-10595B

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$31.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10628A

FUEL TANK MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10628A-4021

FUEL TANK MOUNTING - CUB YELLOW 2 (4021)

$36.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10630A

FUEL TANK MOUNTING BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10630A-4021

FUEL TANK MOUNTING - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 710-0431

CARRIAGE BOLT 3/8-16 x 1.50

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05412

SCREW 3/8-16 x .500 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0326

FLAT WASHER .510 x 1.000 x .125

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0
